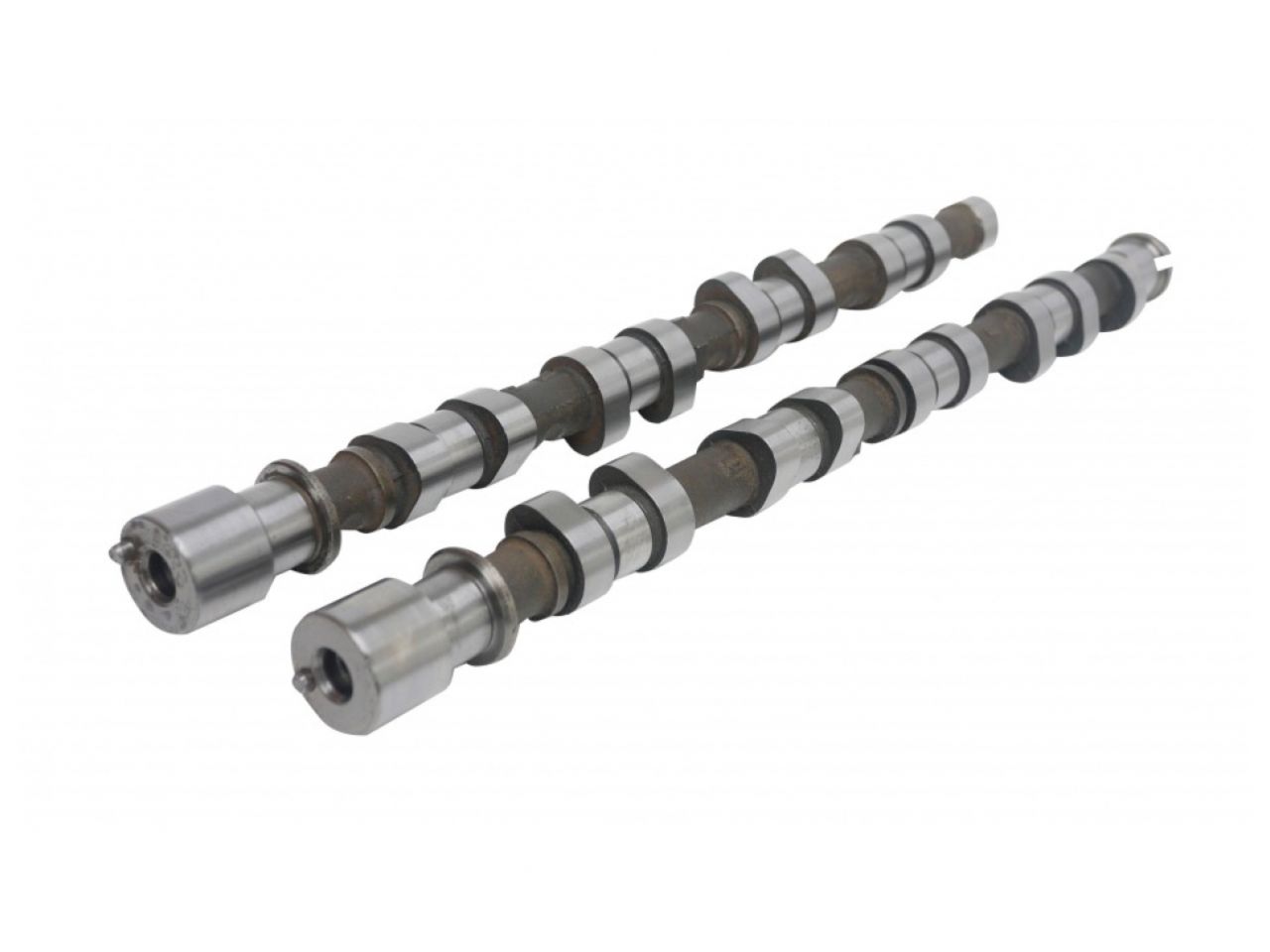

Kelford Cams Mechanical Cam Set; Street/Strip Cam; For Well Built Engines; Good Top

New Range Of High Performance Camshafts.
272/278 Degrees advertised duration. 9.95mm/9.95mm lift.272/278 Degree racing cams. These are our most popular cams for a vast range of motorsport applications.

Engine Make:		Engine Model:				Part Number:
TOYOTA		Supra / 2JZ TURBO				T202-D
Valve Clearance:		Intake:	0.25mm	Set	COLD	at the	CAM
Exhaust:	0.25mm	Set	COLD	at the	CAM
Cam Lift:	Intake:			10.20mm	Exhaust:	10.20mm
Rocker Ratio:	Intake:			1	Exhaust:	1
Nett Valve Lift:	Intake:			9.95mm	Exhaust:	9.95mm
Advertised Duration @	0.10mm	Intake:			272	Exhaust:	278
Duration @	1.00mm VALVE LIFT	Intake:			236	Exhaust:	240
Timing @	1.00mm VALVE LIFT	IVO:			8 BTDC	EVO:	60 BBDC
IVC:			48 ABDC	EVC:	0 TDC
Suggested Centre Lines:	Intake:			110	Exhaust:	120
VALVE	Lift @ TDC	Intake:			1.83mm	Exhaust:	0.94

Vehicle Fitments:
