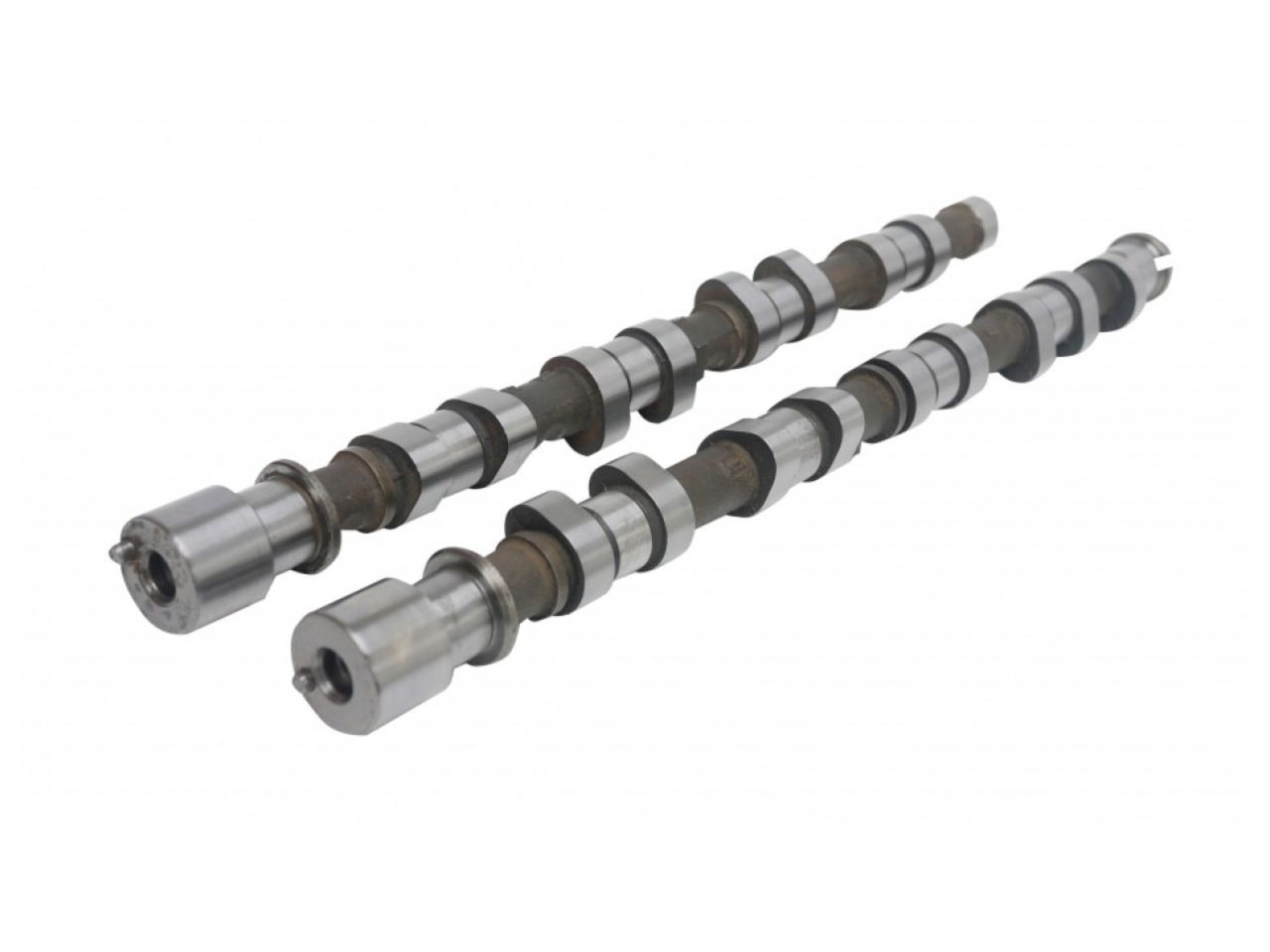

Kelford Cams Mechanical Cam Set; Street/Strip Cam; Good for Time Attack [Toyota Sup

New Range Of High Performance Camshafts.264/272 Degrees advertised duration. 9.65mm/9.65mm lift.264/272 Degree street / strip or track day cams for good response and midrange power. Suits up to 30lb boost and 8000 RPM with our recommended valve spring.

Engine Make:		Engine Model:				Part Number:
TOYOTA		Supra / 2JZ TURBO				T202-C
Valve Clearance:		Intake:	0.25mm	Set	COLD	at the	CAM
Exhaust:	0.25mm	Set	COLD	at the	CAM
Cam Lift:	Intake:			9.90mm	Exhaust:	9.90mm
Rocker Ratio:	Intake:			1	Exhaust:	1
Nett Valve Lift:	Intake:			9.65mm	Exhaust:	9.65mm
Advertised Duration @	0.10mm	Intake:			264	Exhaust:	272
Duration @	1.00mm VALVE LIFT	Intake:			228	Exhaust:	232
Timing @	1.00mm VALVE LIFT	IVO:			7 BTDC	EVO:	52 BBDC
IVC:			41 ABDC	EVC:	0 TDC
Suggested Centre Lines:	Intake:			107	Exhaust:	116
VALVE	Lift @ TDC	Intake:			1.73mm	Exhaust:	0.94

Vehicle Fitments:
