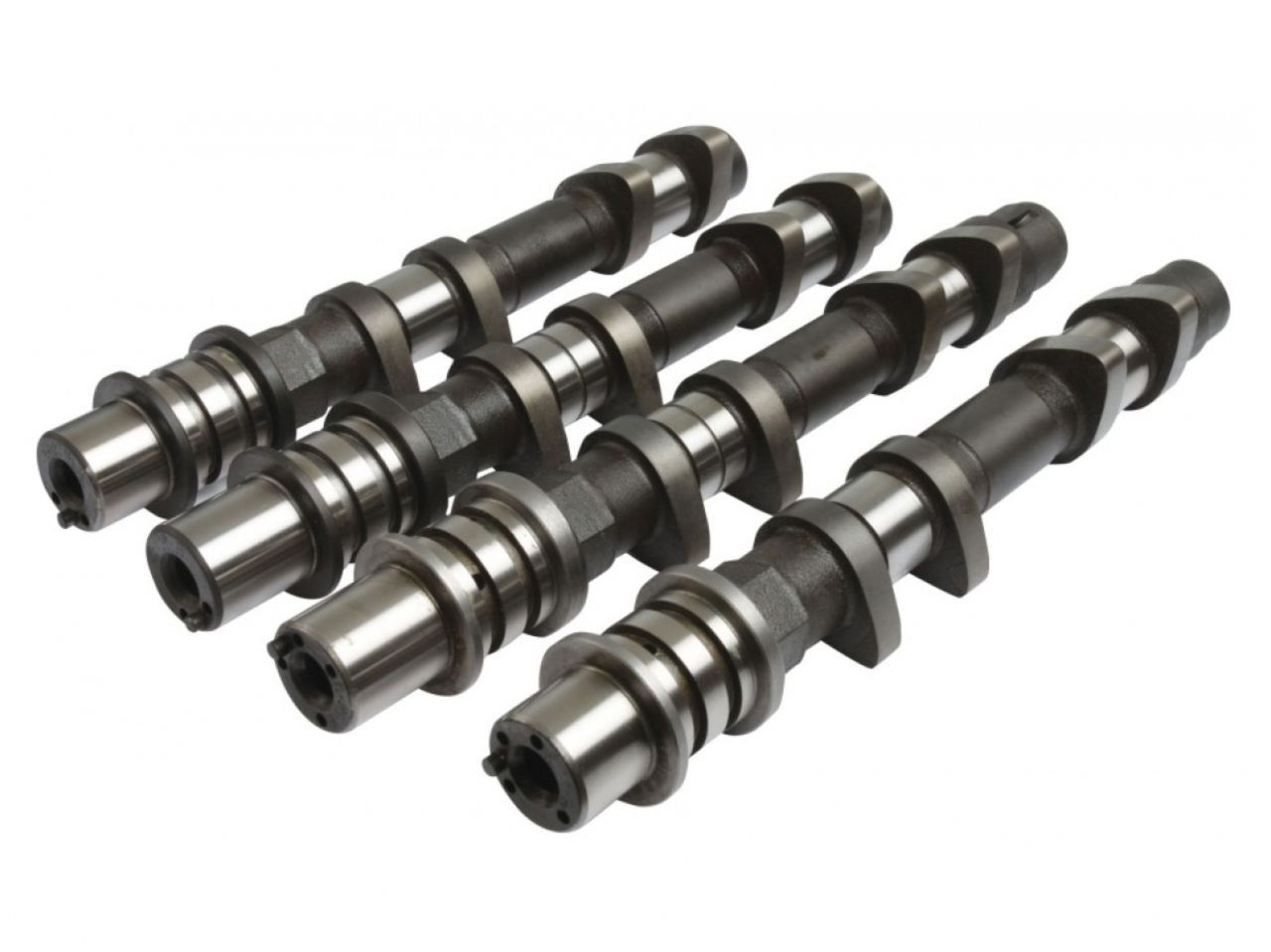

Kelford Cams Subaru 2.5 Sti 05-07 - Mechanical - 282/276 - Subaru 2.5 Sti 2005-2007
New Range Of High Performance Camshafts.282&278/278 Degrees advertised duration. 11.50mm&11.00mm/11.00mm lift.High Lift 282 degree duration racing cams. These cams require cylinder head modification to fit. Suits well built motors with larger intake manifolds. Good on E85 fuel. Must have shimless buckets and aftermarket ECU.
 | |||||||
| Engine Make: | Engine Model: | Part Number: | |||||
| SUBARU | 2.5 STI 2005-2006 | R-199-D | |||||
| Valve Clearance: | Intake: | 0.20mm | Set | COLD | at the | CAM | |
| Exhaust: | 0.25mm | Set | COLD | at the | CAM | ||
| Cam Lift: | Intake: | 11.70mm | Exhaust: | 11.25mm | |||
| Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |||
| Nett Valve Lift: | Intake: | 11.50mm | Exhaust: | 11.00mm | |||
| Advertised Duration @ | 0.25mm | Intake: | 282 | Exhaust: | 278 | ||
| Duration @ | 1.00mm VALVE LIFT | Intake: | 240 | Exhaust: | 236 | ||
| Timing @ | 1.00mm VALVE LIFT | IVO: | 10 ATDC | EVO: | 51 BBDC | ||
| IVC: | 70 ABDC | EVC: | 5 ATDC | ||||
| Suggested Centre Lines: | Intake: | 130 | Exhaust: | 113 | |||
| VALVE | Lift @ TDC | Intake: | 0.25mm | Exhaust: | 1.23 | ||
