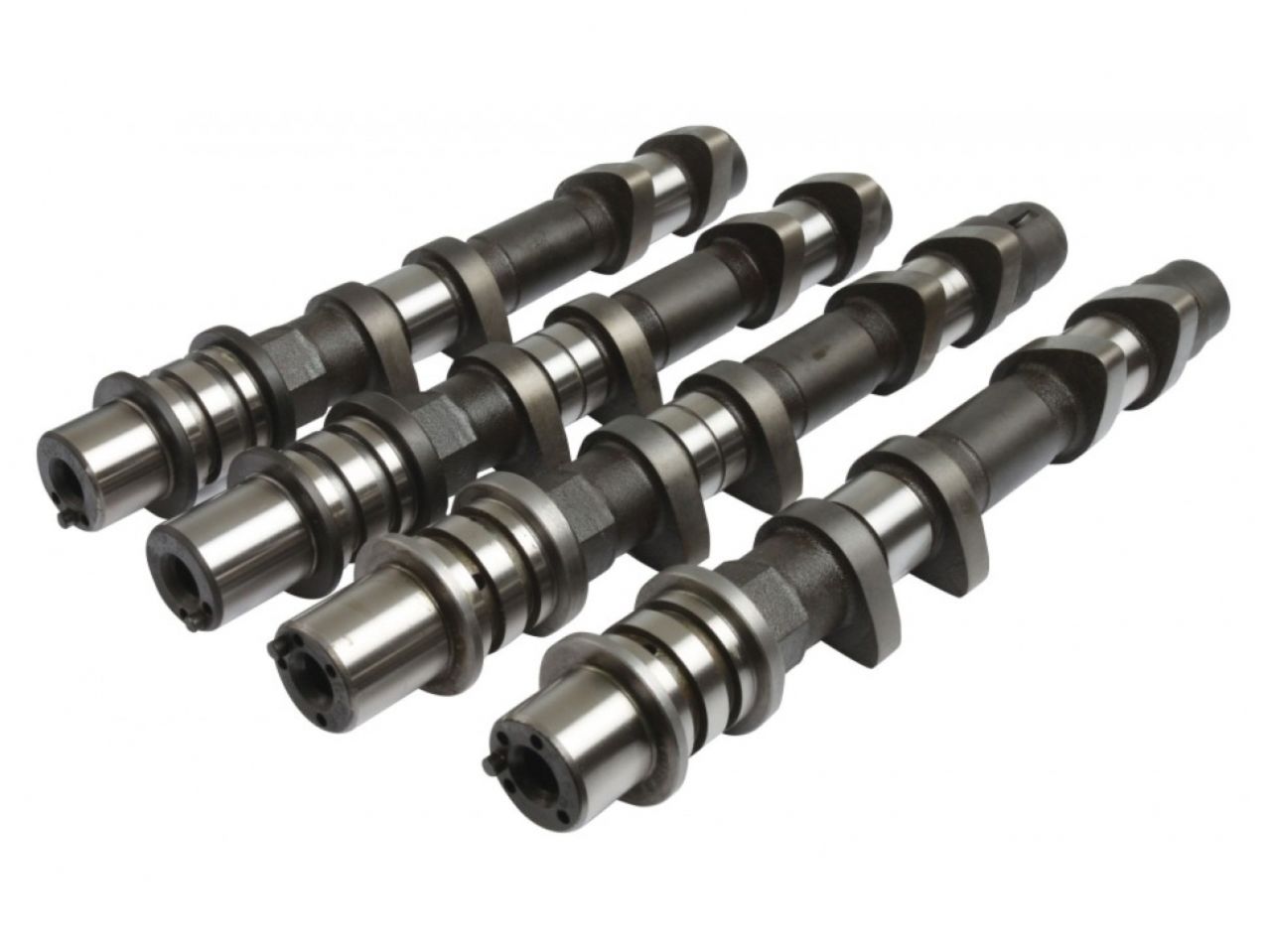

Kelford Cams Subaru 2.5 STI 2005-2007 - 272/272 - KVS109 - Mechanical Cam Set; Hot
New Range Of High Performance Camshafts.272&268/268 Degrees advertised duration. 11.30mm&10.50mm/10.50mm lift.High lift 272 degree racing camshafts. Requires cylinder head modification to fit. Suits well built competition motors. Good on E85 fuel. Must have shimless buckets and aftermarket ECU.
 | |||||||
| Engine Make: | Engine Model: | Part Number: | |||||
| SUBARU | 2.5 STI 2005-2006 | R-199-C | |||||
| Valve Clearance: | Intake: | 0.20mm | Set | COLD | at the | CAM | |
| Exhaust: | 0.25mm | Set | COLD | at the | CAM | ||
| Cam Lift: | Intake: | 11.50mm | Exhaust: | 10.75mm | |||
| Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |||
| Nett Valve Lift: | Intake: | 11.30mm | Exhaust: | 10.50mm | |||
| Advertised Duration @ | 0.25mm | Intake: | 272 | Exhaust: | 268 | ||
| Duration @ | 1.00mm VALVE LIFT | Intake: | 232 | Exhaust: | 228 | ||
| Timing @ | 1.00mm VALVE LIFT | IVO: | 14 ATDC | EVO: | 47 BBDC | ||
| IVC: | 66 ABDC | EVC: | 1 ATDC | ||||
| Suggested Centre Lines: | Intake: | 130 | Exhaust: | 113 | |||
| VALVE | Lift @ TDC | Intake: | 0.12mm | Exhaust: | 1.11 | ||
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2004 - 2006 | Subaru | Baja | Sport, Turbo |
| 2005 | Subaru | Forester | XS L.L. Bean Edition, XT Premium |
| 2004 - 2007 | Subaru | Forester | XS, X |
| 2007 | Subaru | Forester | XSL |
| 2004 - 2005 | Subaru | Forester | XT |
| 2006 - 2007 | Subaru | Forester | XT Limited, X L.L. Bean Edition |
| 2005 - 2007 | Subaru | Impreza | Outback Sport |
| 2004 | Subaru | Impreza | Outback, TS |
| 2004 - 2005 | Subaru | Impreza | RS |
| 2006 - 2007 | Subaru | Impreza | WRX Limited, 2.5i, WRX TR |
| 2007 | Subaru | Impreza | WRX STI Limited |
| 2004 - 2007 | Subaru | Impreza | WRX STI, WRX |
| 2007 | Subaru | Legacy | 2.5i Special Edition |
| 2006 - 2007 | Subaru | Legacy | 2.5i, 2.5i Limited, GT spec.B |
| 2005 - 2007 | Subaru | Legacy | GT, GT Limited |
| 2005 | Subaru | Legacy | i, Limited |
| 2007 | Subaru | Outback | 2.5i Basic |
| 2006 - 2007 | Subaru | Outback | 2.5i Limited, 2.5i |
| 2005 - 2006 | Subaru | Outback | R |
| 2006 | Subaru | Outback | R VDC Limited |
| 2005 | Subaru | Outback | VDC Limited, Limited, i |
| 2005 - 2007 | Subaru | Outback | XT Limited, XT, R L.L. Bean Edition |
Kelford Cams Subaru 2.5 STI 2005-2007 - 272/272 - KVS109 - Mechanical Cam Set; Hot
Sale price$988.00 USD
Regular price$1,040.00 USD
