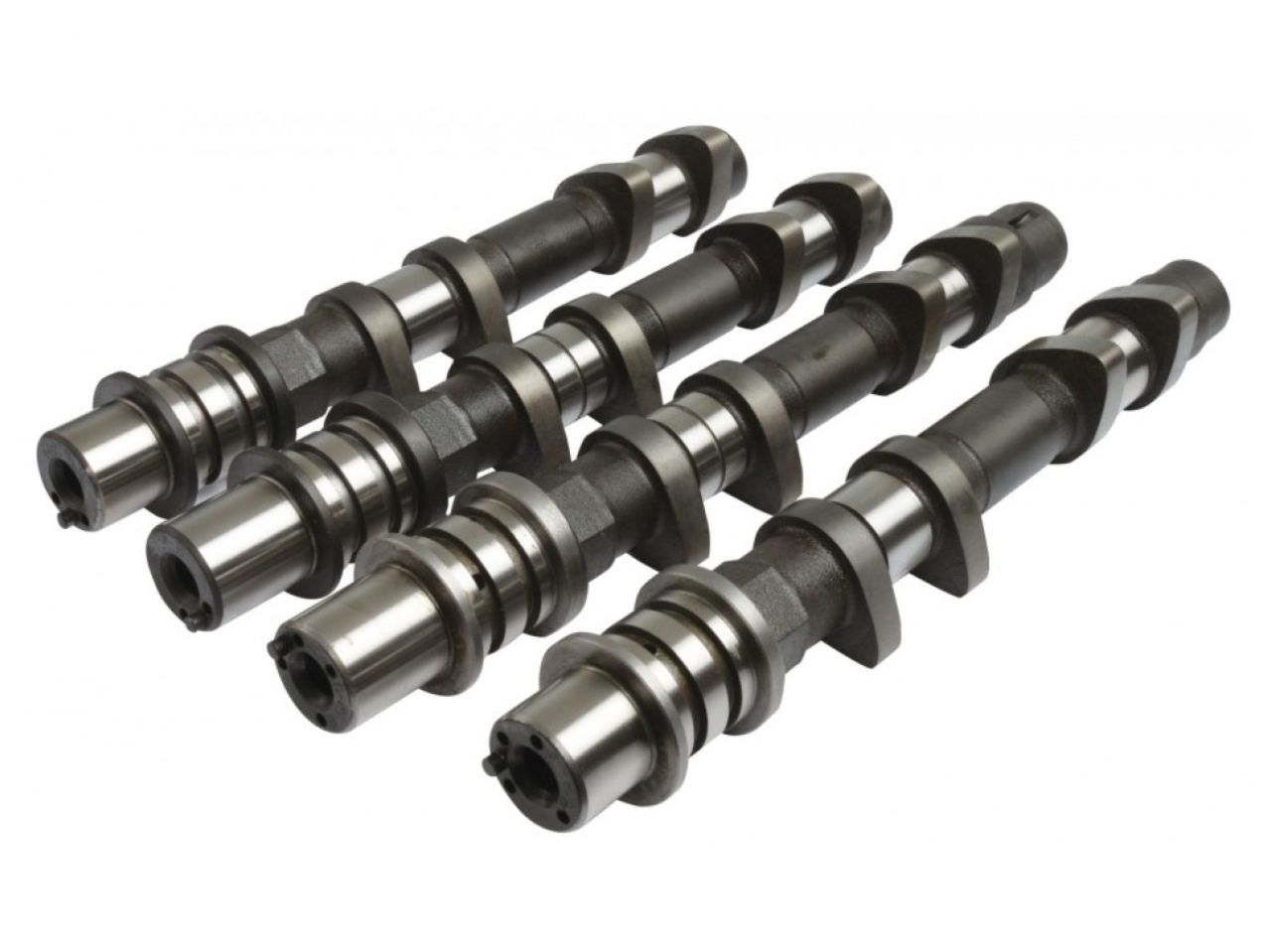

Kelford Cams Subaru 2.5 STI 2005-2007 - 264/264 - KVS109 - Mechanical Cam Set; Hot

New Range Of High Performance Camshafts.

264&260/260 Degrees advertised duration. 10.70mm&10.20mm/10.20mm lift.Race and Rally camshafts. High lift, low duration design for great throttle response. Must have shimless buckets and aftermarket ECU.

Engine Make:		Engine Model:				Part Number:
SUBARU		2.5 STI 2005-2006				R-199-B
Valve Clearance:		Intake:	0.20mm	Set	COLD	at the	CAM
Exhaust:	0.25mm	Set	COLD	at the	CAM
Cam Lift:	Intake:			10.90mm	Exhaust:	10.45mm
Rocker Ratio:	Intake:			1	Exhaust:	1
Nett Valve Lift:	Intake:			10.70mm	Exhaust:	10.20mm
Advertised Duration @	0.25mm	Intake:			264	Exhaust:	260
Duration @	1.00mm VALVE LIFT	Intake:			225	Exhaust:	222
Timing @	1.00mm VALVE LIFT	IVO:			17.5 ATDC	EVO:	44 BBDC
IVC:			62.5 ABDC	EVC:	2 BTDC
Suggested Centre Lines:	Intake:			130	Exhaust:	113
VALVE	Lift @ TDC	Intake:			0.03mm	Exhaust:	0.83
