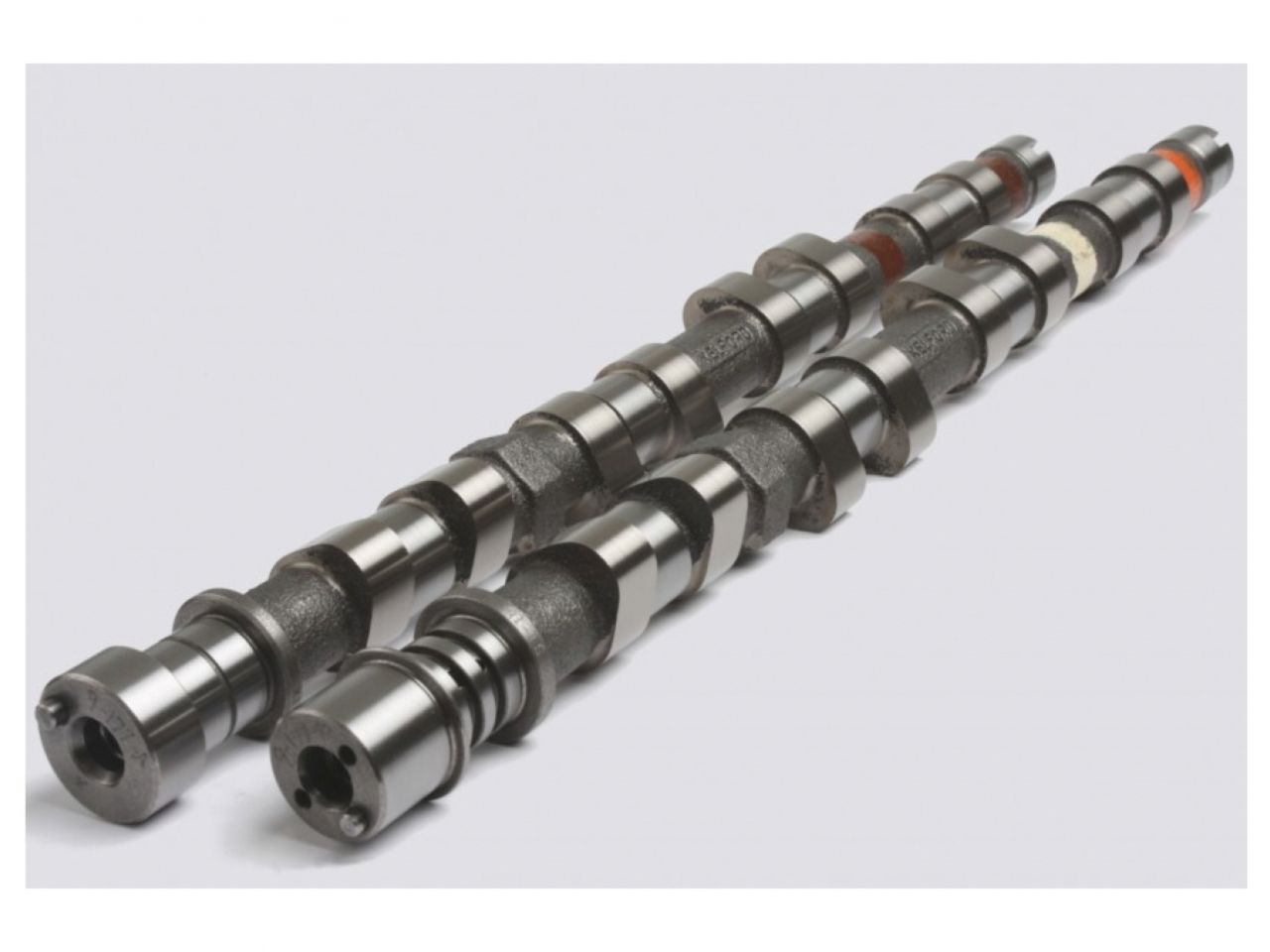

Kelford Cams Mitsubishi 4G63 EVO9 Performance Cam Set

Kelford Cams Mitsubishi 4G63 EVO9 Performance Cam Set

sku: 0U66W | mpn: 9-TX280R
$653.60
$688.00 $653.60
Sale Sold out
Shipping calculated at checkout.

Out of stock

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

280/288 Degree advertised duration, 11.50/11.50mm lift.

High HP racing cams. These camshafts suit well built time attack and drag racing engines using E85 fuel.

CAMSHAFT SPECIFICATION

      • Engine Make: MITSUBISHI
      • Engine Model: 4G63 EVO 9 MIVEC
    • Cam Lift: Intake: 6.65mm Exhaust: 6.65mm
    • Rocker Ratio: 1.73 Exhaust: 1.73
    • Nett Valve Lift: Intake: 11.50mm Exhaust: 11.50mm
    • Advertised Duration @: 0.10mm Intake: 280 Exhaust: 288
    • Duration @: 1.00mm VALVE LIFT Intake: 238 Exhaust: 242
    • Timing @: 1.00mm VALVE LIFT
      • IVO: 11 ATDC EVO: 57 BBDC
      • IVC: 69 ABDC EVC: 5 ATDC
    • Suggested Centre Lines: Intake: 130 Exhaust: 116
    • VALVE Lift @: TDC  Intake: 0.37mm Exhaust: 1.29


Vehicle Fitments:

Year Make Model Submodel
2006 Mitsubishi Lancer LS Diamond, Evolution MR, Evolution SE, LS, SE, OZ Rally, Evolution RS, ES, Evolution, Ralliart, DE
