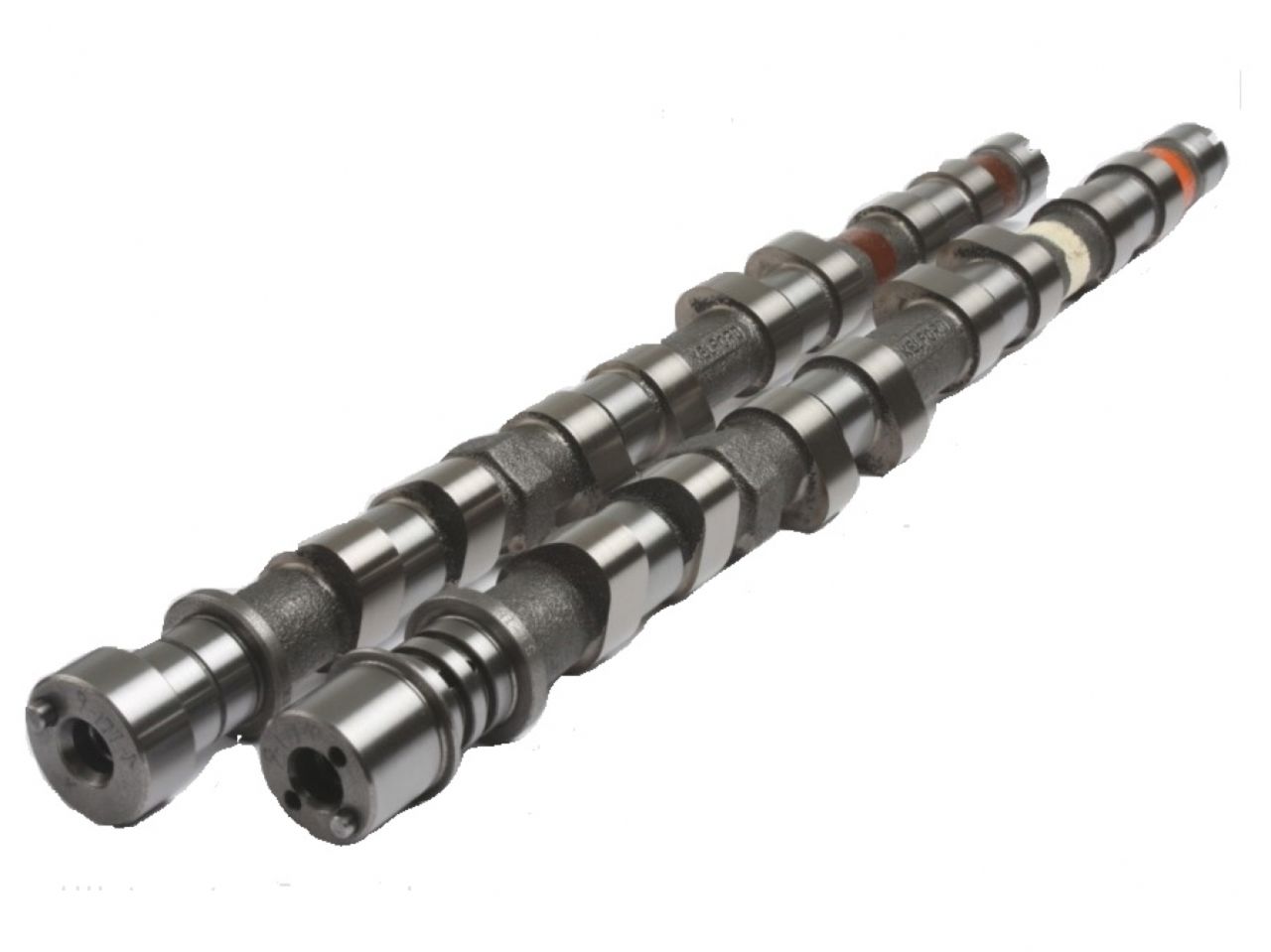

Kelford Cams Mitsubishi Evo 9 Mivec - Hydraulic - Kvs63-b/btk - The Ultimate Cam
New Range Of High Performance Camshafts.
264/260 Degree advertised duration, 11.00/10.35mm lift.The ultimate cam for street, strip and track engines from 300-500hp. These camshafts are stable to 35lb boost and 8000 RPM with our recommended valve springs.
 | |||||||
| Engine Make: | Engine Model: | Part Number: | |||||
| MITSUBISHI | 4G63 EVO 9 MIVEC | 9-TX264 | |||||
| Valve Clearance: | Intake: | Set | at the | ||||
| Exhaust: | Set | at the | |||||
| Cam Lift: | Intake: | 6.36mm | Exhaust: | 5.98mm | |||
| Rocker Ratio: | Intake: | 1.73 | Exhaust: | 1.73 | |||
| Nett Valve Lift: | Intake: | 11.00mm | Exhaust: | 10.35mm | |||
| Advertised Duration @ | 0.10mm | Intake: | 264 | Exhaust: | 260 | ||
| Duration @ | 1.00mm VALVE LIFT | Intake: | 216 | Exhaust: | 216 | ||
| Timing @ | 1.00mm VALVE LIFT | IVO: | 22 ATDC | EVO: | 41 BBDC | ||
| IVC: | 58 ABDC | EVC: | 5 BTDC | ||||
| Suggested Centre Lines: | Intake: | 130 | Exhaust: | 113 | |||
| VALVE | Lift @ TDC | Intake: | 0.12mm | Exhaust: | 0.70 | ||
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2006 | Mitsubishi | Lancer | Evolution RS, LS Diamond, DE, LS, Evolution MR, SE, Ralliart, OZ Rally, Evolution SE, ES, Evolution |
Kelford Cams Mitsubishi Evo 9 Mivec - Hydraulic - Kvs63-b/btk - The Ultimate Cam
Sale price$653.60 USD
Regular price$688.00 USD
