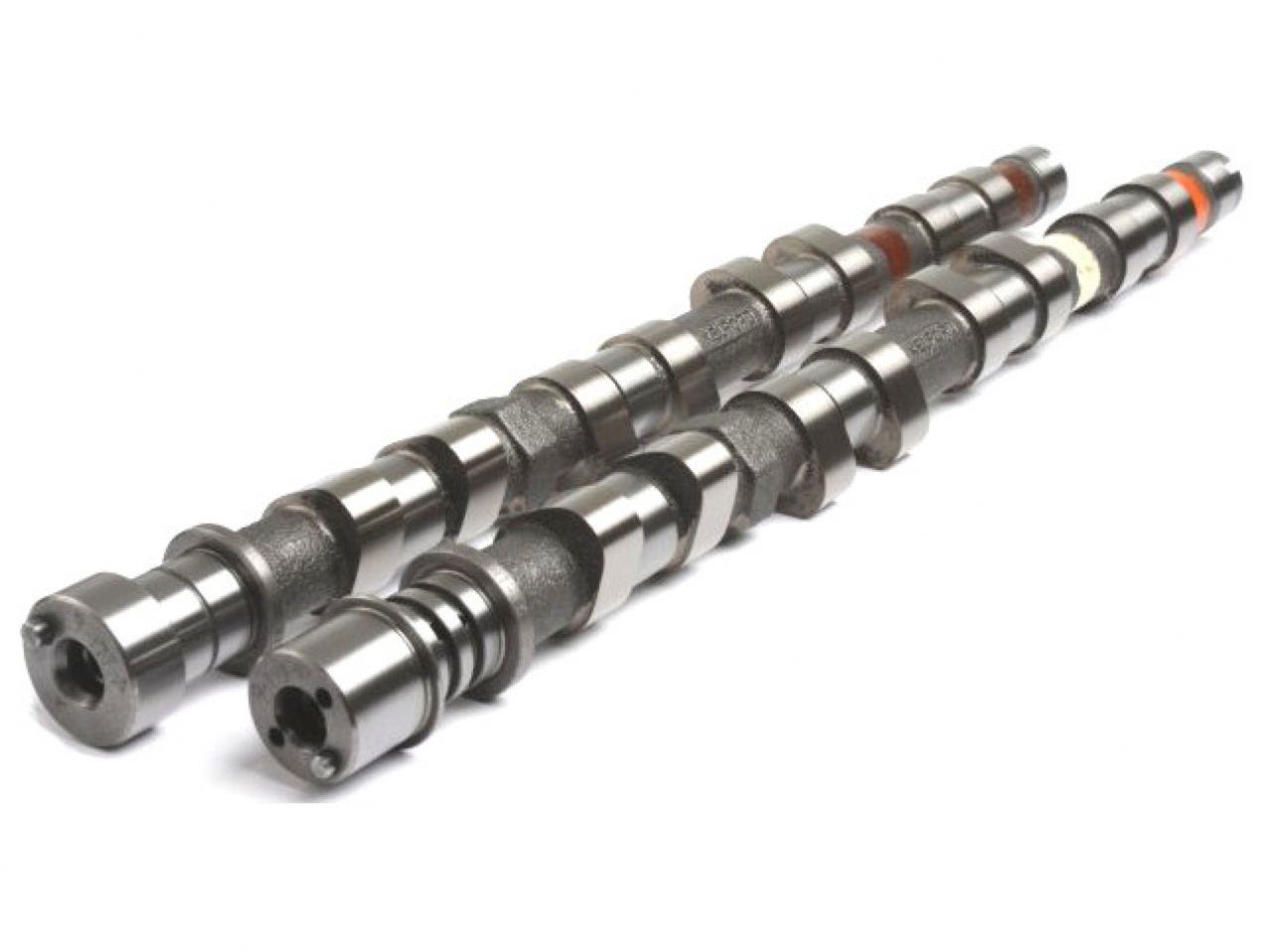

Kelford Cams Mitsubishi Evo 9 Mivec - Hydraulic - Kvs63-b/btk - Fast Street, Stock
New Range Of High Performance Camshafts.
258/264 Degree advertised duration, 10.50mm lift.Cams for fast street engines with stock or small turbocharger, or restrictor plate rally engines up to 8000 RPM and 25lb boost with our recommended valve springs.
 | |||||||
| Engine Make: | Engine Model: | Part Number: | |||||
| MITSUBISHI | 4G63 EVO 9 MIVEC | 9-TX258 | |||||
| Valve Clearance: | Intake: | Set | at the | ||||
| Exhaust: | Set | at the | |||||
| Cam Lift: | Intake: | 6.07mm | Exhaust: | 6.07mm | |||
| Rocker Ratio: | Intake: | 1.73 | Exhaust: | 1.73 | |||
| Nett Valve Lift: | Intake: | 10.50mm | Exhaust: | 10.50mm | |||
| Advertised Duration @ | 0.10mm | Intake: | 258 | Exhaust: | 264 | ||
| Duration @ | 1.00mm VALVE LIFT | Intake: | 208 | Exhaust: | 220 | ||
| Timing @ | 1.00mm VALVE LIFT | IVO: | 26 ATDC | EVO: | 41 BBDC | ||
| IVC: | 54 ABDC | EVC: | 1 BTDC | ||||
| Suggested Centre Lines: | Intake: | 130 | Exhaust: | 111 | |||
| VALVE | Lift @ TDC | Intake: | 0.05mm | Exhaust: | 0.96 | ||
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2006 | Mitsubishi | Lancer | Ralliart, OZ Rally, ES, Evolution, Evolution SE, Evolution MR, DE, LS Diamond, LS, Evolution RS, SE |
Kelford Cams Mitsubishi Evo 9 Mivec - Hydraulic - Kvs63-b/btk - Fast Street, Stock
Sale price$653.60 USD
Regular price$688.00 USD
