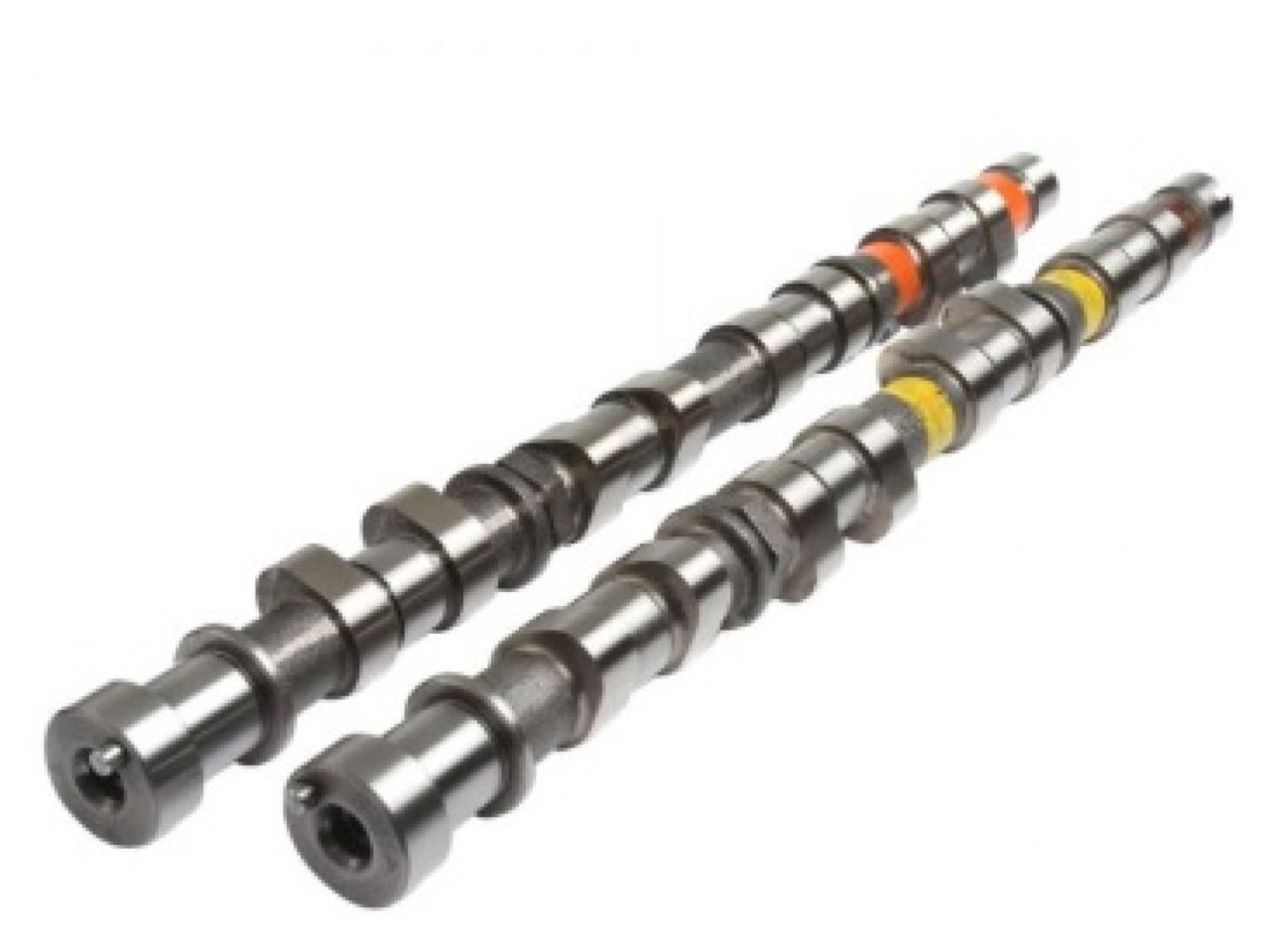

Kelford Cams 294/292 Duration, 12.50mm/12.00mm Lift. High Lift Drag Racing Camshaft

294/292 Degree advertised duration, 12.50mm/12.00mm lift.High lift Drag racing cams. These camshafts suit engines running up to 45lb boost and 9500rpm with our recommended valve spring.

Engine Make:		Engine Model:				Part Number:
MITSUBISHI		4G63 EVO 8				8-TX294
Valve Clearance:		Intake:	Set	at the
Exhaust:	Set	at the
Cam Lift:	Intake:			6.94mm	Exhaust:	6.94mm
Rocker Ratio:	Intake:			1.73	Exhaust:	1.73
Nett Valve Lift:	Intake:			12.00mm	Exhaust:	12.00mm
Advertised Duration @	0.10mm	Intake:			294	Exhaust:	300
Duration @	1.00mm VALVE LIFT	Intake:			250	Exhaust:	256
Timing @	1.00mm VALVE LIFT	IVO:			15 BTDC	EVO:	66 BBDC
IVC:			55 ABDC	EVC:	10 ATDC
Suggested Centre Lines:	Intake:			110	Exhaust:	118
VALVE	Lift @ TDC	Intake:			2.39mm	Exhaust:	1.88
