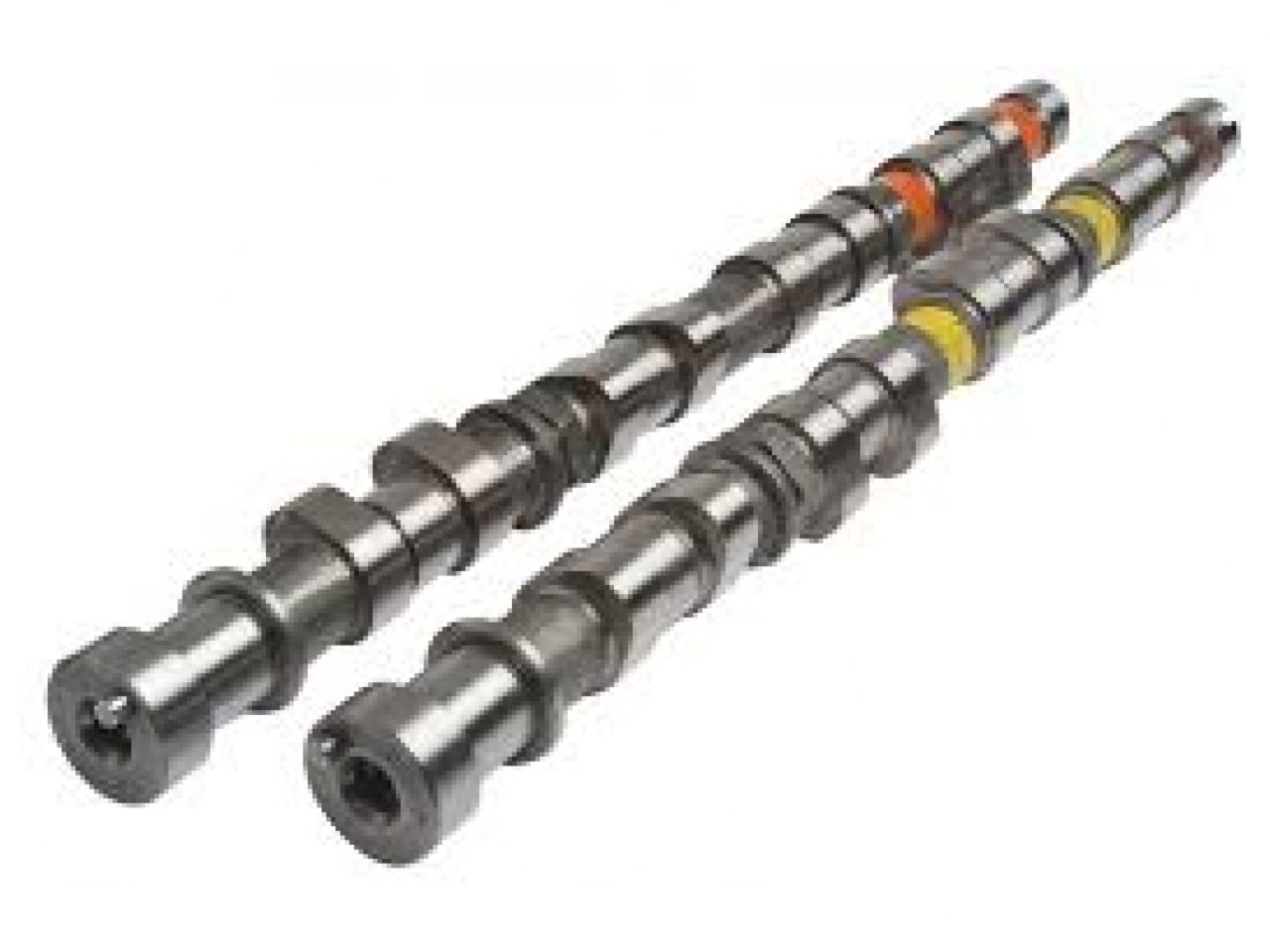

Kelford Cams Mitsubishi Evo 8 - Hydraulic - Kvs63-b/btk - Drag Racing Camshafts

New Range Of High Performance Camshafts.
288/280 Degree advertised duration, 12.00/11.50mm lift.Drag racing cams. These camshafts suit high HP, professionally built drag racing engines up to 50lb boost and 9500 RPM with our recommended valve springs.
![]() | |||||||
Engine Make: | Engine Model: | Part Number: | |||||
MITSUBISHI | 4G63 EVO 8 | 8-TX288 | |||||
Valve Clearance: | Intake: | Set | at the | ||||
Exhaust: | Set | at the | |||||
Cam Lift: | Intake: | 6.94mm | Exhaust: | 6.65mm | |||
Rocker Ratio: | Intake: | 1.73 | Exhaust: | 1.73 | |||
Nett Valve Lift: | Intake: | 12.00mm | Exhaust: | 11.50mm | |||
Advertised Duration @ | 0.10mm | Intake: | 288 | Exhaust: | 280 | ||
Duration @ | 1.00mm VALVE LIFT | Intake: | 242 | Exhaust: | 238 | ||
Timing @ | 1.00mm VALVE LIFT | IVO: | 16 BTDC | EVO: | 56 BBDC | ||
IVC: | 46 ABDC | EVC: | 2 ATDC | ||||
Suggested Centre Lines: | Intake: | 105 | Exhaust: | 117 | |||
VALVE | Lift @ TDC | Intake: | 2.40mm | Exhaust: | 1.32 |
Vehicle Fitments:
Year | Make | Model | Submodel |
---|---|---|---|
2005 | Mitsubishi | Lancer | Evolution MR, Evolution RS, LS Diamond |
2003 - 2005 | Mitsubishi | Lancer | OZ Rally, Evolution, ES, LS |
2004 - 2005 | Mitsubishi | Lancer | Ralliart, DE |
2004 | Mitsubishi | Lancer | Sportback Ralliart, Sportback |

Kelford Cams Mitsubishi Evo 8 - Hydraulic - Kvs63-b/btk - Drag Racing Camshafts
Sale price$615.60 USD
Regular price$648.00 USD
