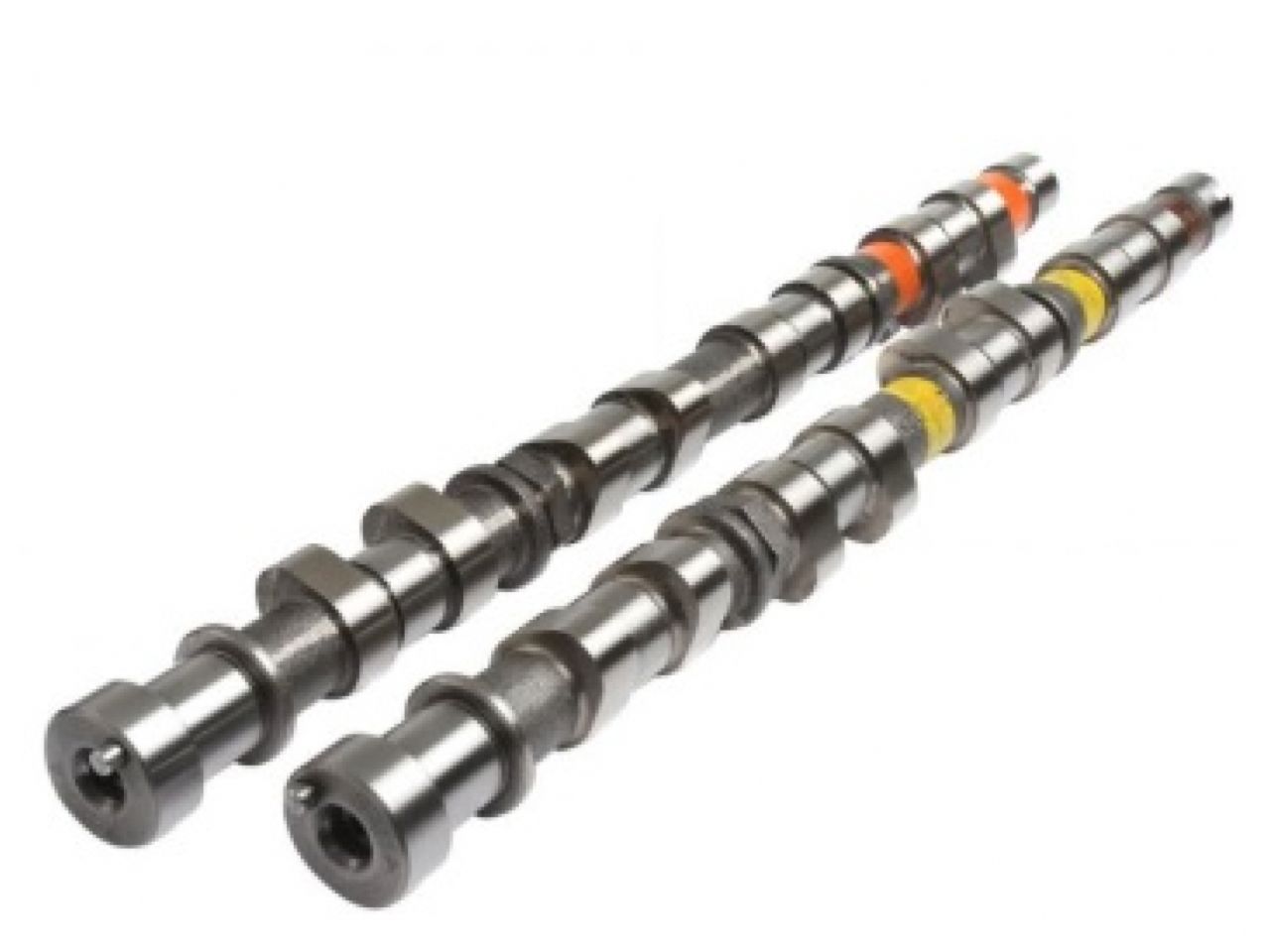

Kelford Cams Mitsubishi 4g63 Evo8 Performance Cam Set High Lift
Kelford Cams Mitsubishi 4g63 Evo8 Performance Cam Set High Lift
sku: 0U61C | mpn: 8-TX284HL
Regular price
$615.60
Regular price
$648.00
Sale price
$615.60
Shipping calculated at checkout.
Out of stock
Emissions
This is not an emissions item.
Quantity
Couldn't load pickup availability
- Ships Worldwide
- Easy Returns
- Fast Shipping
New Range Of High Performance Camshafts.
284/280 Degree advertised duration, 12.50mm/12.00mm high lift.High lift drag racing cams. These camshafts suit engines running up to 30lb boost and 9500 RPM with our recommended valve springs.
 | |||||||
| Engine Make: | Engine Model: | Part Number: | |||||
| MITSUBISHI | 4G63 EVO 8 | 8-TX284HL | |||||
| Valve Clearance: | Intake: | Set | at the | ||||
| Exhaust: | Set | at the | |||||
| Cam Lift: | Intake: | 7.23mm | Exhaust: | 6.94mm | |||
| Rocker Ratio: | Intake: | 1.73 | Exhaust: | 1.73 | |||
| Nett Valve Lift: | Intake: | 12.50mm | Exhaust: | 12.00mm | |||
| Advertised Duration @ | 0.10mm | Intake: | 284 | Exhaust: | 280 | ||
| Duration @ | 1.00mm VALVE LIFT | Intake: | 242 | Exhaust: | 238 | ||
| Timing @ | 1.00mm VALVE LIFT | IVO: | 15 BTDC | EVO: | 55 BBDC | ||
| IVC: | 47 ABDC | EVC: | 3 ATDC | ||||
| Suggested Centre Lines: | Intake: | 106 | Exhaust: | 116 | |||
| VALVE | Lift @ TDC | Intake: | 2.36mm | Exhaust: | 1.21 | ||
