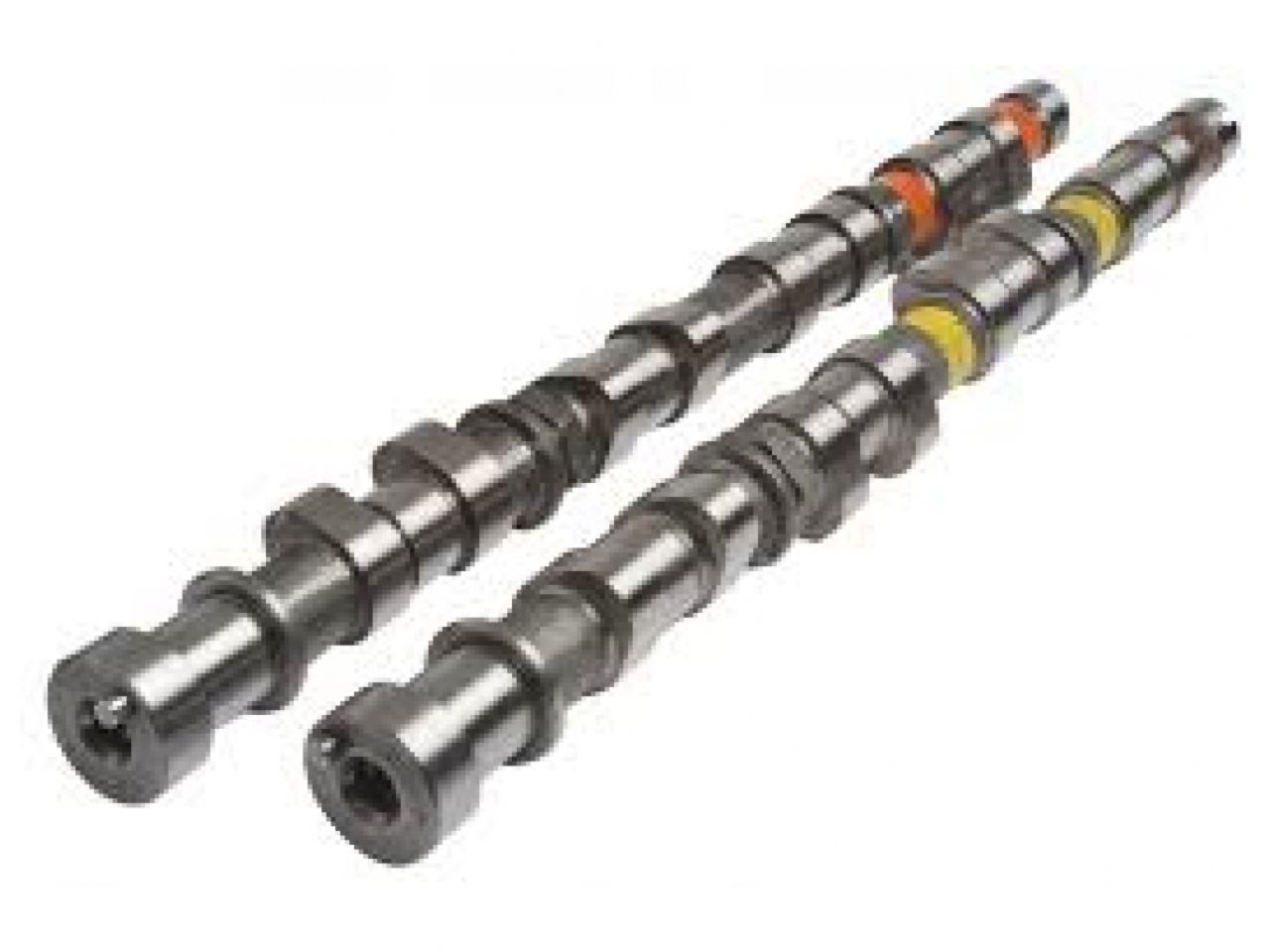

Kelford Cams Mitsubishi Evo 8 - Hydraulic - Kvs63-b/btk - High Hp Racing Cams
Kelford Cams Mitsubishi Evo 8 - Hydraulic - Kvs63-b/btk - High Hp Racing Cams
sku: 0U5XT | mpn: 8-TX280
Regular price
$615.60
Regular price
$648.00
Sale price
$615.60
Shipping calculated at checkout.
Out of stock
Emissions
This is not an emissions item.
Quantity
Couldn't load pickup availability
- Ships Worldwide
- Easy Returns
- Fast Shipping
New Range Of High Performance Camshafts.
280/276 Degree advertised duration, 11.50/11.00mm lift.High HP racing cams. These camshafts suit well built racing engines up to 35lb boost and 9000 RPM with our recommended valve springs.
 | |||||||
| Engine Make: | Engine Model: | Part Number: | |||||
| MITSUBISHI | 4G63 EVO 8 | 8-TX280 | |||||
| Valve Clearance: | Intake: | Set | at the | ||||
| Exhaust: | Set | at the | |||||
| Cam Lift: | Intake: | 6.65mm | Exhaust: | 6.36mm | |||
| Rocker Ratio: | Intake: | 1.73 | Exhaust: | 1.73 | |||
| Nett Valve Lift: | Intake: | 11.50mm | Exhaust: | 11.00mm | |||
| Advertised Duration @ | 0.10mm | Intake: | 280 | Exhaust: | 276 | ||
| Duration @ | 1.00mm VALVE LIFT | Intake: | 238 | Exhaust: | 230 | ||
| Timing @ | 1.00mm VALVE LIFT | IVO: | 12 BTDC | EVO: | 50 BBDC | ||
| IVC: | 46 ABDC | EVC: | 0 TDC | ||||
| Suggested Centre Lines: | Intake: | 107 | Exhaust: | 115 | |||
| VALVE | Lift @ TDC | Intake: | 2.09mm | Exhaust: | 1.00 | ||
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2004 - 2005 | Mitsubishi | Lancer | DE, Ralliart |
| 2005 | Mitsubishi | Lancer | Evolution RS, Evolution MR, LS Diamond |
| 2003 - 2005 | Mitsubishi | Lancer | LS, ES, Evolution, OZ Rally |
| 2004 | Mitsubishi | Lancer | Sportback Ralliart, Sportback |
