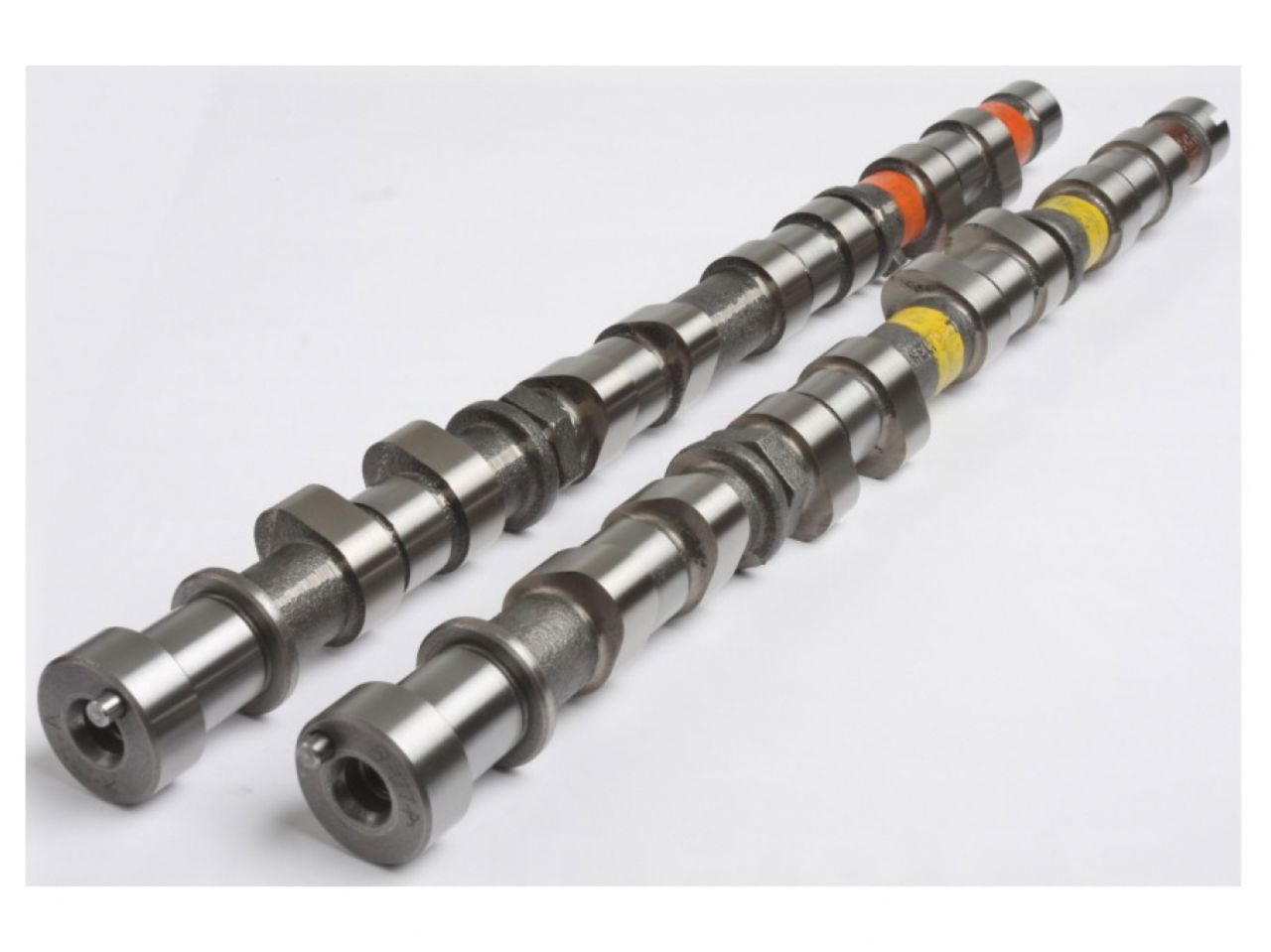

• Kelford Cams Camshafts 8-TX258 Item Image
1 1
Kelford Cams Authorized Dealer

Kelford Cams Mitsubishi EVO 8 - Hydraulic - KVS63-B/BTK - Fast Street, Stock Turbo,

Kelford Cams Mitsubishi EVO 8 - Hydraulic - KVS63-B/BTK - Fast Street, Stock Turbo,

sku: 0U5XQ | mpn: 8-TX258
$615.60
$648.00 $615.60
Sale Sold out
Shipping calculated at checkout.

Out of stock

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

258/264 Degree advertised duration, 10.50mm lift

Cams for fast street engines with stock or small turbocharger, or restrictor plate rally engines up to 8000 RPM and 25lb boost with our recommended valve springs.

CAMSHAFT SPECIFICATION

  • Engine Make: MITSUBISHI
  • Engine Model: 4G63 EVO 8
  • Cam Lift: Intake: 6.07mm Exhaust: 6.07mm
  • Rocker Ratio: Intake: 1.73 Exhaust: 1.73
  • Nett Valve Lift: Intake: 10.50mm Exhaust: 10.50mm
  • Advertised Duration @ 0.10mm Intake: 258 Exhaust: 264
  • Duration @ 1.00mm VALVE LIFT Intake: 208 Exhaust: 220
  • Timing @ 1.00mm VALVE LIFT
    • IVO: 3 ATDC EVO: 41 BBDC
    • IVC: 31 ABDC EVC: 1 BTDC
  • Suggested Centre Lines: Intake: 107 Exhaust: 111
  • VALVE Lift @ TDC Intake: 0.81mm Exhaust: 0.96


Vehicle Fitments:

Year Make Model Submodel
2003 Mitsubishi Lancer OZ Rally, ES, LS, Evolution
