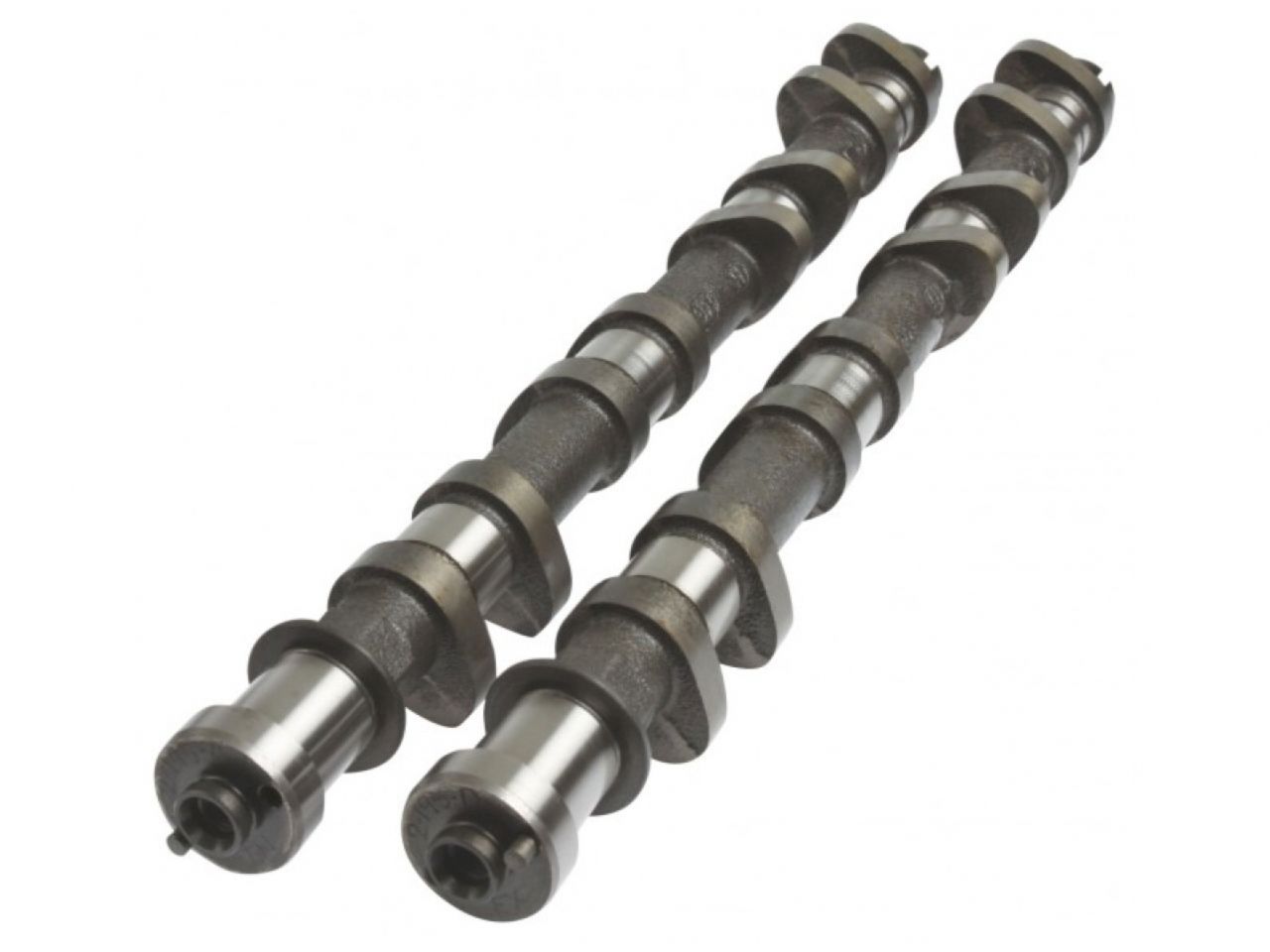

Kelford Cams Mechanical Cam Set; For Shim Under Bucket; For Well Built Engines; 450

New Range Of High Performance Camshafts.272/272 Degrees advertised duration. 10.80mm/10.80mm lift.3S-GTE Turbo cams for well built engines with 450-600HP turbo

Engine Make:		Engine Model:				Part Number:
TOYOTA		3S-GE (Gen 3)				3-195-TB
Valve Clearance:		Intake:	0.25mm	Set	COLD	at the	CAM
Exhaust:	0.30mm	Set	COLD	at the	CAM
Cam Lift:	Intake:			11.05mm	Exhaust:	11.10mm
Rocker Ratio:	Intake:			1	Exhaust:	1
Nett Valve Lift:	Intake:			10.80mm	Exhaust:	10.80mm
Advertised Duration @	0.30mm	Intake:			272	Exhaust:	272
Duration @	1.00mm VALVE LIFT	Intake:			232	Exhaust:	232
Timing @	1.00mm VALVE LIFT	IVO:			8 BTDC	EVO:	50 BBDC
IVC:			44 ABDC	EVC:	2 ATDC
Suggested Centre Lines:	Intake:			108	Exhaust:	114
VALVE	Lift @ TDC	Intake:			1.88mm	Exhaust:	1.15

Vehicle Fitments:
