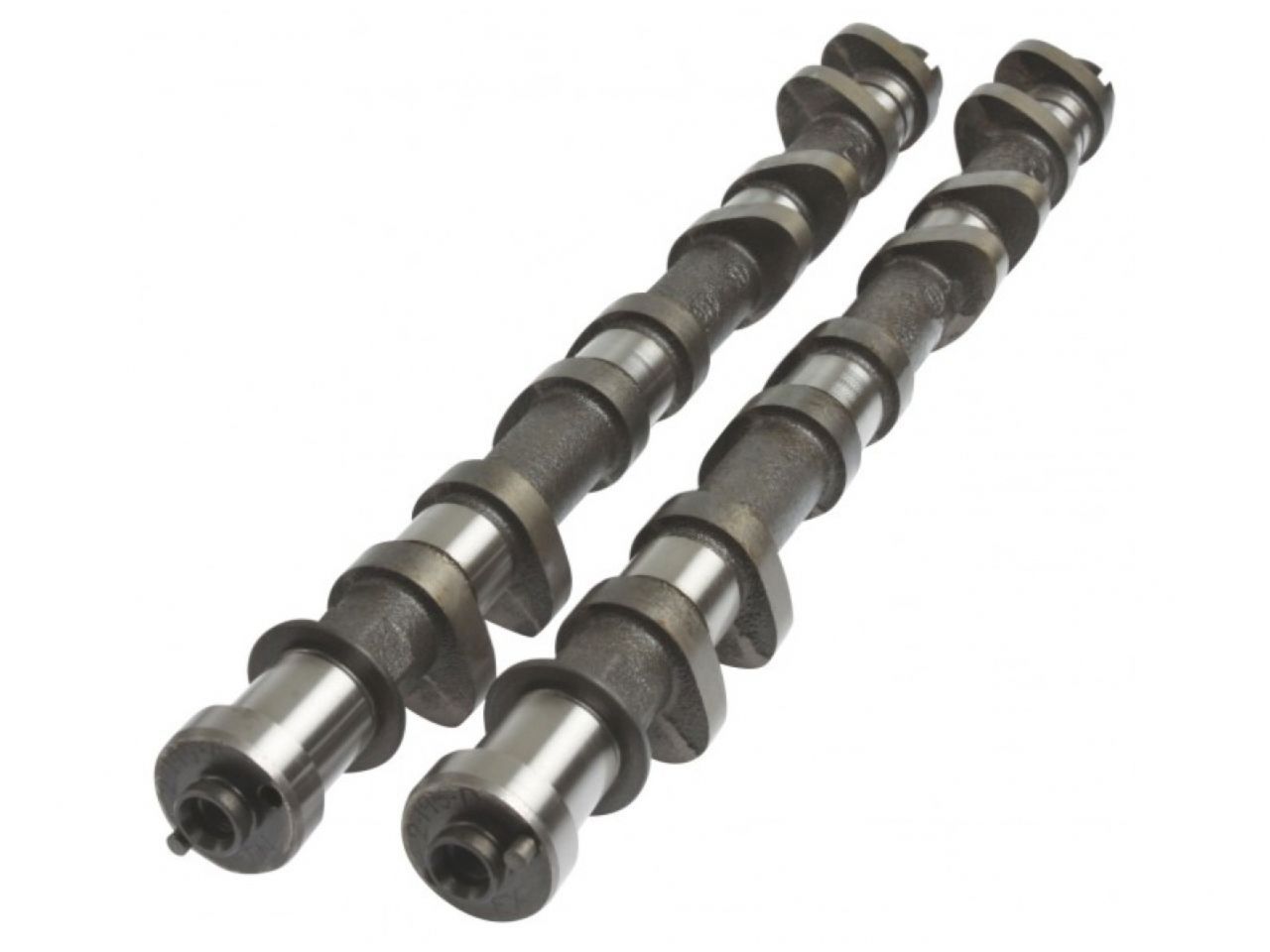

Kelford Cams Mechanical Cam Set; For Shim Under Bucket

3-195-TA Camshaft Set

262/262 Degrees advertised duration. 10.50mm/10.00mm lift.

Additional Information:

3S-GTE Turbo cams for serious street performance engines with 400HP turbo.

Engine Make:		Engine Model:				Part Number:
TOYOTA		3S-GE (Gen 3)				3-195-TA
Valve Clearance:		Intake:	0.25mm	Set	COLD	at the	CAM
		Exhaust:	0.30mm	Set	COLD	at the	CAM
Cam Lift:		Intake:			10.75mm	Exhaust:	10.30mm
Rocker Ratio:		Intake:			1	Exhaust:	1
Nett Valve Lift:		Intake:			10.50mm	Exhaust:	10.00mm
Advertised Duration @	0.30mm	Intake:			262	Exhaust:	262
Duration @	1.00mm VALVE LIFT	Intake:			224	Exhaust:	224
Timing @	1.00mm VALVE LIFT	IVO:			2 BTDC	EVO:	46 BBDC
		IVC:			42 ABDC	EVC:	2 BTDC
Suggested Centre Lines:		Intake:			110	Exhaust:	114
VALVE	Lift @ TDC	Intake:			1.22mm	Exhaust:	0.78
