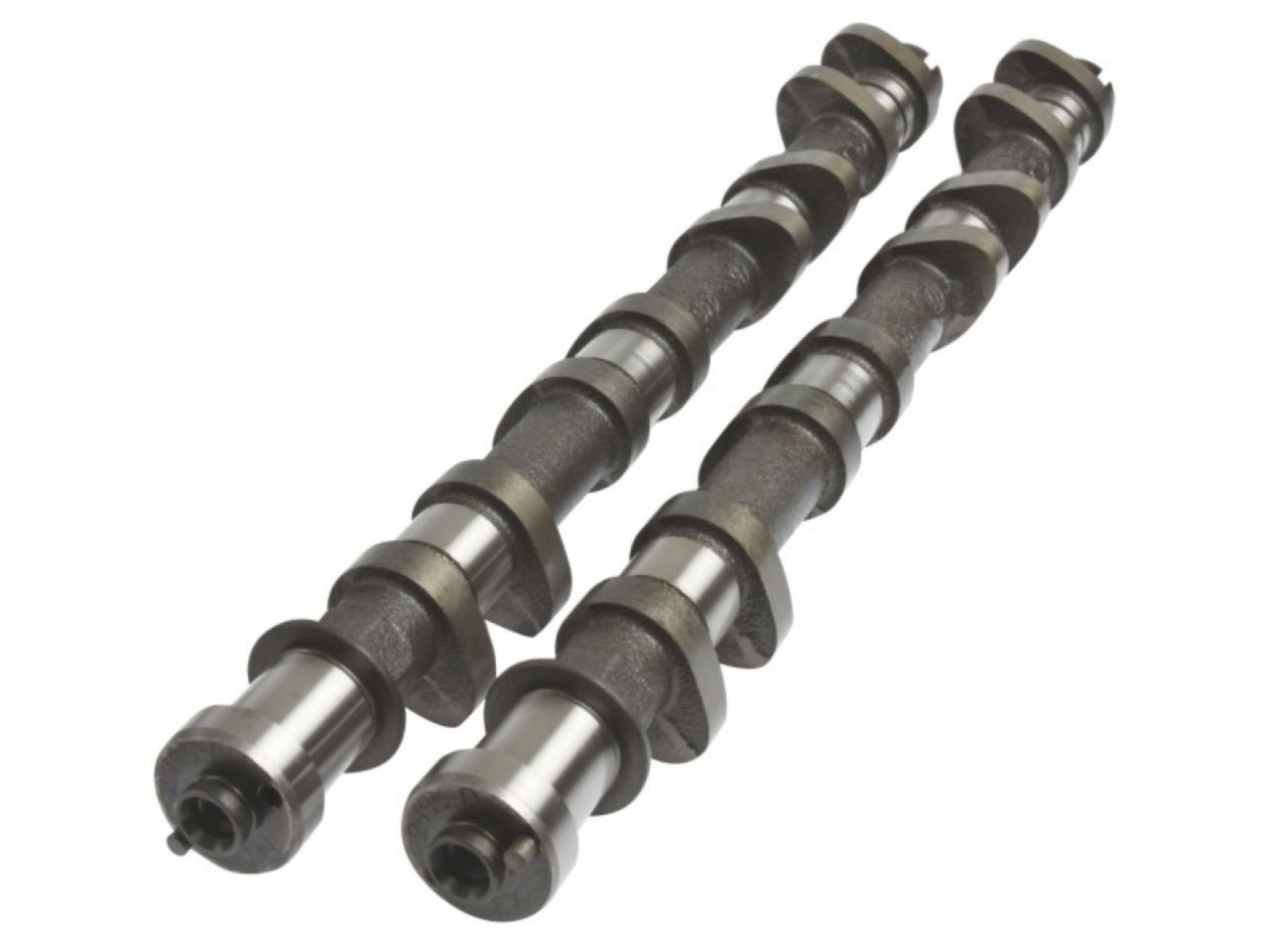

Kelford Cams Toyota 3S-GE (Gen 3) Shim Under Bucket - Mechanical - 312 302

Kelford Cams Toyota 3S-GE (Gen 3) Shim Under Bucket - Mechanical - 312 302

sku: 0U5T9 | mpn: 3-195-C
$627.00
$660.00 $627.00
Sale Sold out
Shipping calculated at checkout.

Out of stock

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

All motor drag race or lightweight race car cams to suit 12.5/1+ compression and close ratio gearbox.

CAMSHAFT SPECIFICATION

  • Engine Make: TOYOTA
  • Engine Model: 3S-GE (Gen 3)
  • Valve Clearance:
    • Intake: 0.25mm Set COLD at the CAM
    • Exhaust: 0.30mm Set COLD at the CAM
  • Cam Lift: Intake: 12.50mm Exhaust: 10.95mm
  • Rocker Ratio: Intake: 1 Exhaust: 1
  • Nett Valve Lift: Intake: 12.25mm Exhaust: 10.65mm
  • Advertised Duration @ 0.30mm Intake: 307 Exhaust: 300
  • Duration @ 1.00mm VALVE LIFT Intake: 273 Exhaust: 261
  • Timing @ 1.00mm VALVE LIFT
    • IVO: 38.5 BTDC EVO: 52.5 BBDC
    • IVC: 54.5 ABDC EVC: 28.5 ATDC
  • Suggested Centre Lines: Intake: 98 Exhaust: 102
  • VALVE Lift @ TDC Intake: 5.12mm Exhaust: 4.50


Vehicle Fitments:

Year Make Model Submodel
1994 - 1995 Toyota MR2 Turbo, Base
