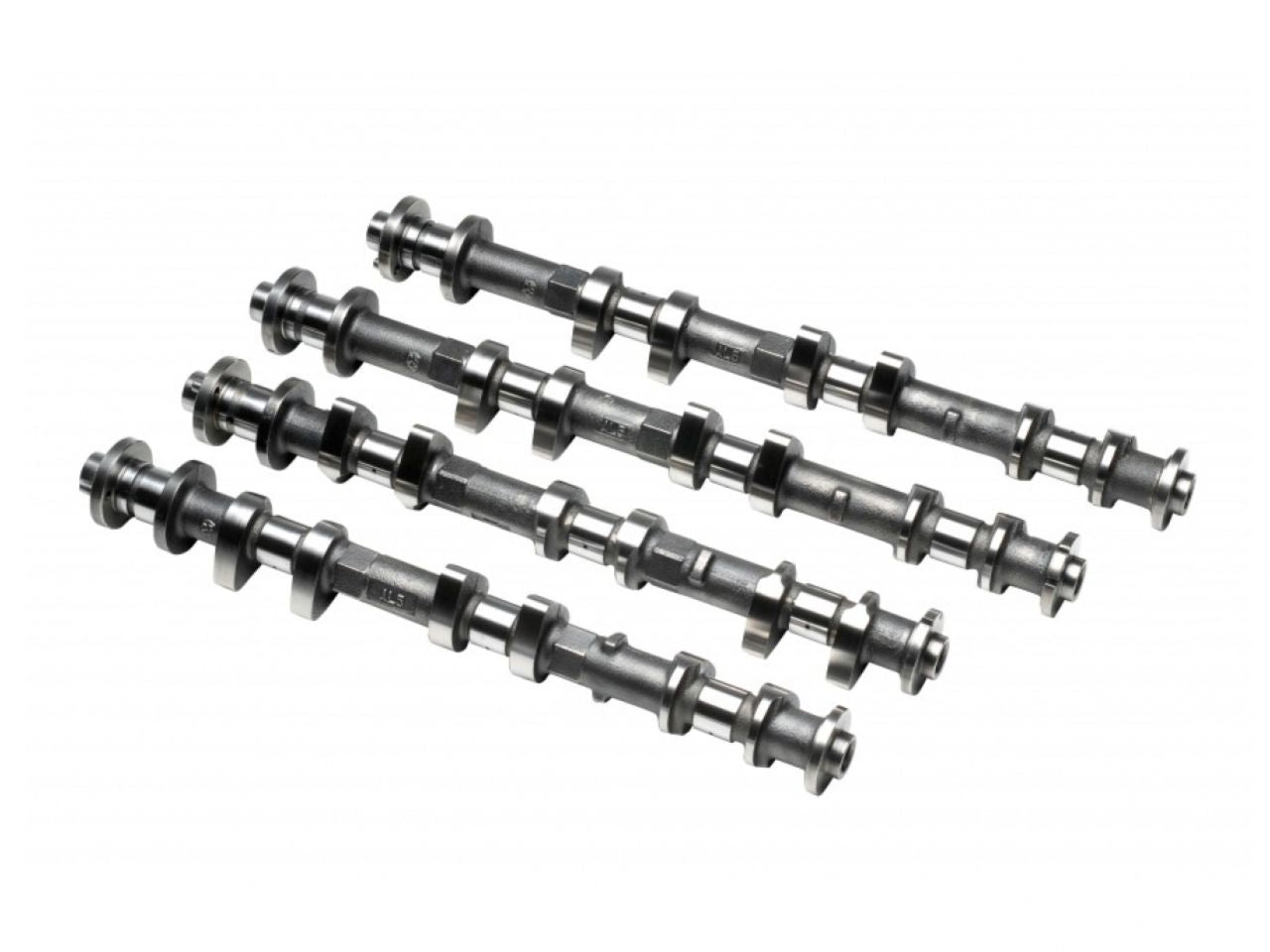

Kelford Cams Camshaft Set

292/306 Degrees advertised duration, 11.00mm/11.00mm lift.

Ultimate race cams for methanol burning pro drag racing motors, 6 second 2000HP+ type builds. Primary lobe specification is / Degrees advertised duration, lift. Please note that purchasing our recommended valve spring and titanium retainer kit is a precondition of the warranty on these camshafts. The KVS38-BT is suitable for most applications, however if you intend on running boost in excess of 3bar, or RPM exceeding 9000, please contact us for a custom solution.

Specifications:

• Valve Clearance: (0.30mm Intake) (0.33mm Exhaust)
• Cam Lift: (11.30mm Intake) (11.33mm Exhaust)
• Rocker Ratio: (1 Intake) (1 Exhaust)
• Nett Valve Lift: (11.00mm Intake) (11.00mm Exhaust)
• Advertised Duration @ 0.10mm: (292 Intake) (306 Exhaust)
• Duration @ 1.00mm VALVE LIFT: (246 Intake) (260 Exhaust)
• Timing @ 1.00mm VALVE LIFT: (IVO: 7 BTDC)(EVO:68 BBDC)(IVC:73 ABDC)(EVC:12 ATDC)
• Suggested Centre Lines: (130 Intake) (118 Exhaust)
• VALVE Lift @ TDC: (0.51mm Intake) (2.08 Exhaust)
