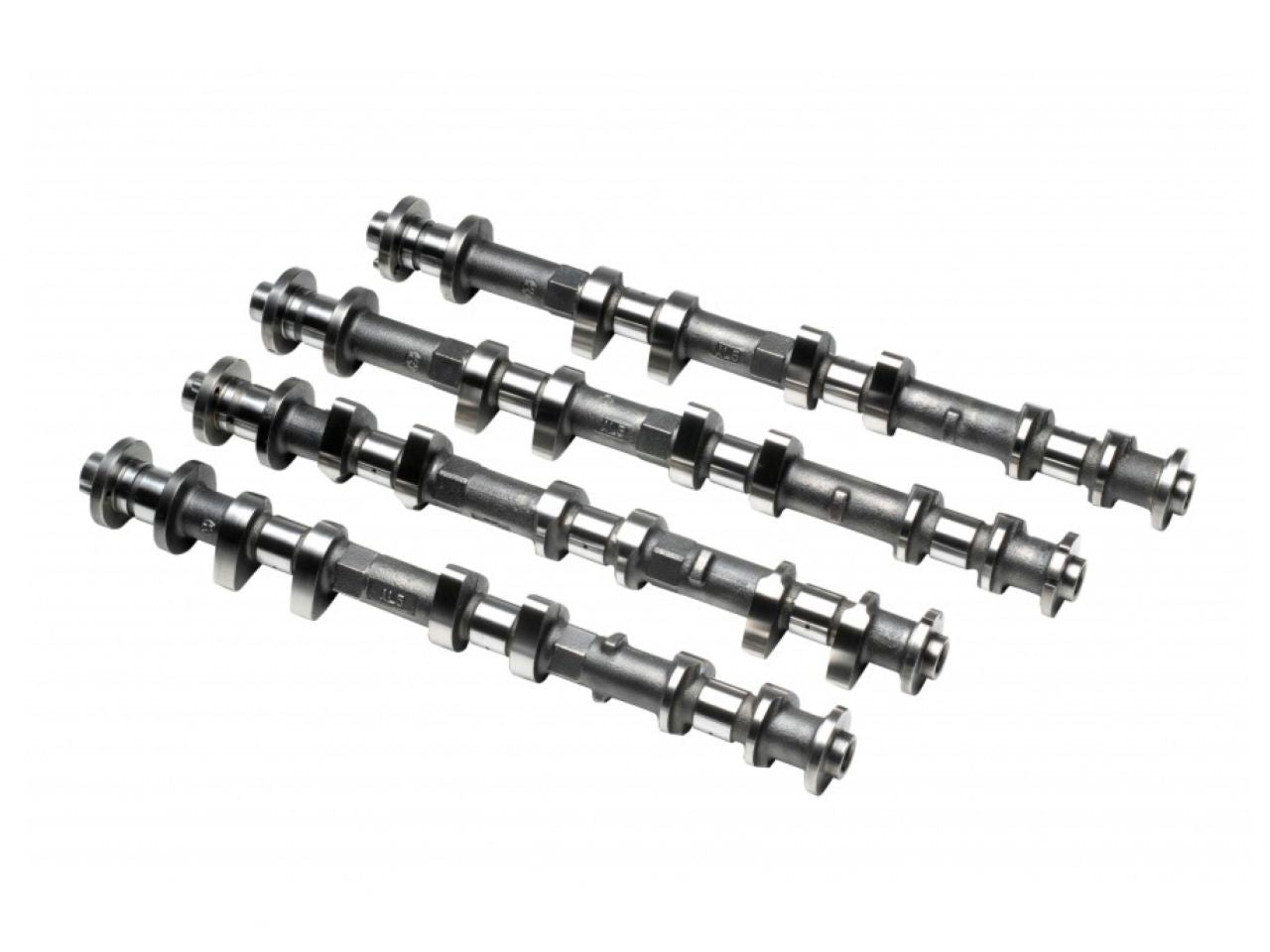

Kelford Cams Nissan Gtr R35 Drag Racing Camshafts For E85 & High Boost Applications

New Range Of High Performance Camshafts.284/290 Degrees advertised duration, 10.60mm/10.57mm lift.Serious race cams to suit drag racing engines using E85 or methanol fuel. The lobe designed to suit high RPM, high boost applications. Primary lobe specification is / Degrees advertised duration, lift. Please note that purchasing our recommended valve spring and titanium retainer kit is a precondition of the warranty on these camshafts. The KVS38-BT is suitable for most applications, however if you intend on running boost in excess of 3bar, or RPM exceeding 9000, please contact us for a custom solution.

Engine Make:		Engine Model:				Part Number:
NISSAN		VR38 R35 GTR				231-D
Valve Clearance:		Intake:	0.30mm	Set	COLD	at the	CAM
Exhaust:	0.33mm	Set	COLD	at the	CAM
Cam Lift:	Intake:			10.90mm	Exhaust:	10.90mm
Rocker Ratio:	Intake:			1	Exhaust:	1
Nett Valve Lift:	Intake:			10.60mm	Exhaust:	10.57mm
Advertised Duration @	0.30mm	Intake:			284	Exhaust:	290
Duration @	1.00mm VALVE LIFT	Intake:			240	Exhaust:	244
Timing @	1.00mm VALVE LIFT	IVO:			10 ATDC	EVO:	60 BBDC
IVC:			70 ABDC	EVC:	4 ATDC
Suggested Centre Lines:	Intake:			130	Exhaust:	118
VALVE	Lift @ TDC	Intake:			0.38mm	Exhaust:	1.37

Vehicle Fitments:
