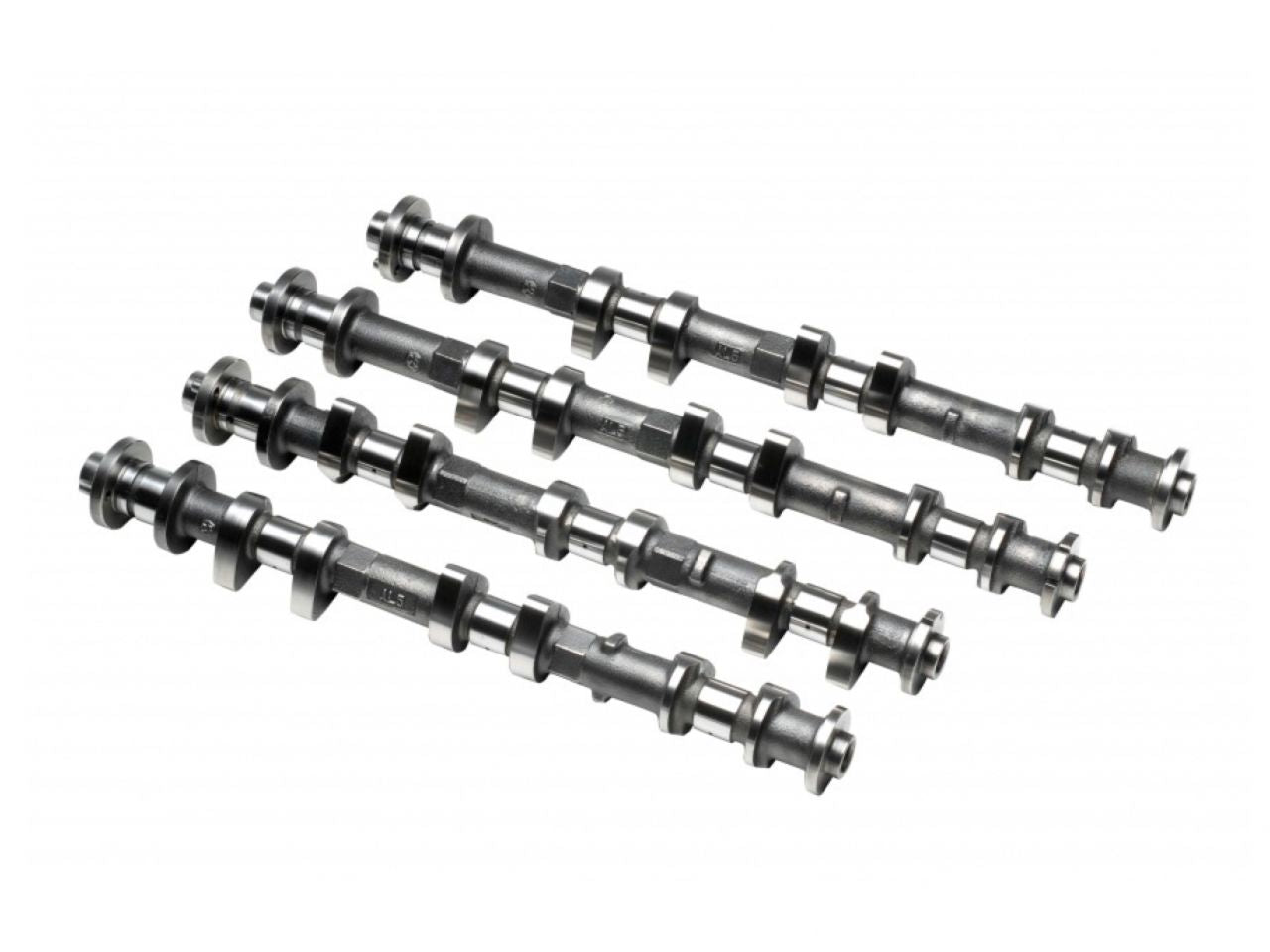

Kelford Cams Nissan Gtr R35 Stage 3 Cams To Suit Well Built Engines For Street/stri

New Range Of High Performance Camshafts.
276/276 Degrees advertised duration, 11.00mm/10.97mm lift.276/276 Degrees advertised duration, 11.00mm/10.97mm lift. Stage 3 racing cams to suit well built racing engines. Suitable for many types of motorsport applications. Primary lobe specification is 292/306 Degrees advertised duration, 11.00mm11.00mm lift.

Engine Make:		Engine Model:				Part Number:
NISSAN		VR38 R35 GTR				231-C
Valve Clearance:		Intake:	0.30mm	Set	COLD	at the	CAM
Exhaust:	0.33mm	Set	COLD	at the	CAM
Cam Lift:	Intake:			11.30mm	Exhaust:	11.30mm
Rocker Ratio:	Intake:			1	Exhaust:	1
Nett Valve Lift:	Intake:			11.00mm	Exhaust:	10.97mm
Advertised Duration @	0.30mm	Intake:			276	Exhaust:	276
Duration @	1.00mm VALVE LIFT	Intake:			236	Exhaust:	236
Timing @	1.00mm VALVE LIFT	IVO:			12 ATDC	EVO:	53 BBDC
IVC:			68 ABDC	EVC:	3 ATDC
Suggested Centre Lines:	Intake:			130	Exhaust:	115
VALVE	Lift @ TDC	Intake:			0.23mm	Exhaust:	1.28

Vehicle Fitments:
