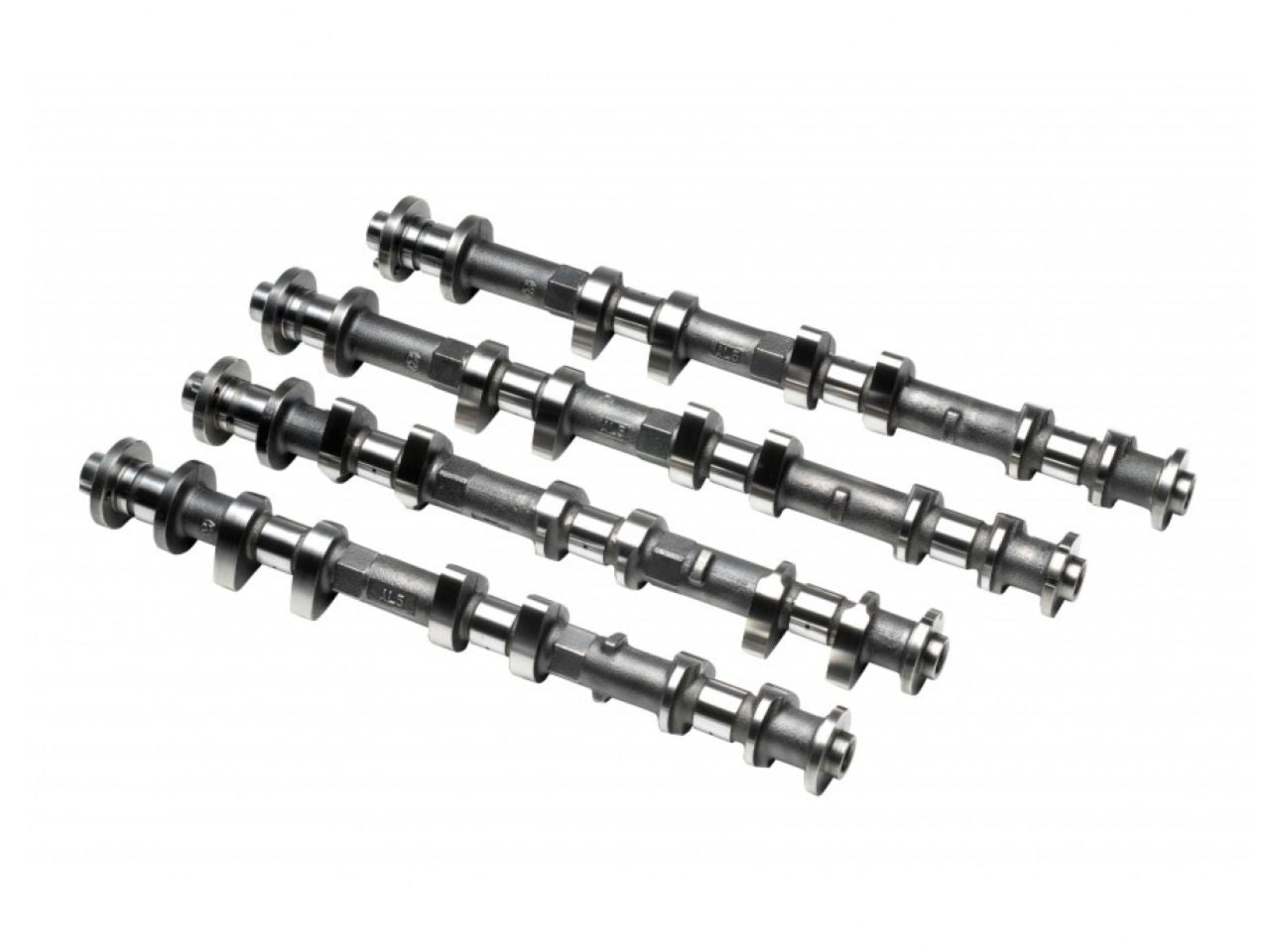

Kelford Cams Nissan Gtr R35 Stage 2 Cams To Give Great Midrange And Top End Power

New Range Of High Performance Camshafts.
274/274 Degrees advertised duration, 10.60mm/10.55mm lift.Stage 2 high lift cams for street and motorsport applications. Superior performance and timing chain system reliability when used with our valve spring set. Primary lobe specification is 276/276 Degrees advertised duration, 11.00mm10.97mm lift. Please note that purchasing our recommended valve spring and titanium retainer kit is a precondition of the warranty on these camshafts. The KVS38-BT is suitable for most applications, however if you intend on running boost in excess of 3bar, or RPM exceeding 9000, please contact us for a custom solution.

Engine Make:		Engine Model:				Part Number:
NISSAN		VR38 R35 GTR				231-B2
Valve Clearance:		Intake:	0.25mm	Set	COLD	at the	CAM
Exhaust:	0.30mm	Set	COLD	at the	CAM
Cam Lift:	Intake:			10.90mm	Exhaust:	10.85mm
Rocker Ratio:	Intake:			1	Exhaust:	1
Nett Valve Lift:	Intake:			10.65mm	Exhaust:	10.55mm
Advertised Duration @	0.30mm	Intake:			274	Exhaust:	274
Duration @	1.00mm VALVE LIFT	Intake:			233	Exhaust:	233
Timing @	1.00mm VALVE LIFT	IVO:			13.5 ATDC	EVO:	51.5 BBDC
IVC:			66.5 ABDC	EVC:	1.5 ATDC
Suggested Centre Lines:	Intake:			130	Exhaust:	115
VALVE	Lift @ TDC	Intake:			0.21mm	Exhaust:	1.17

Vehicle Fitments:
