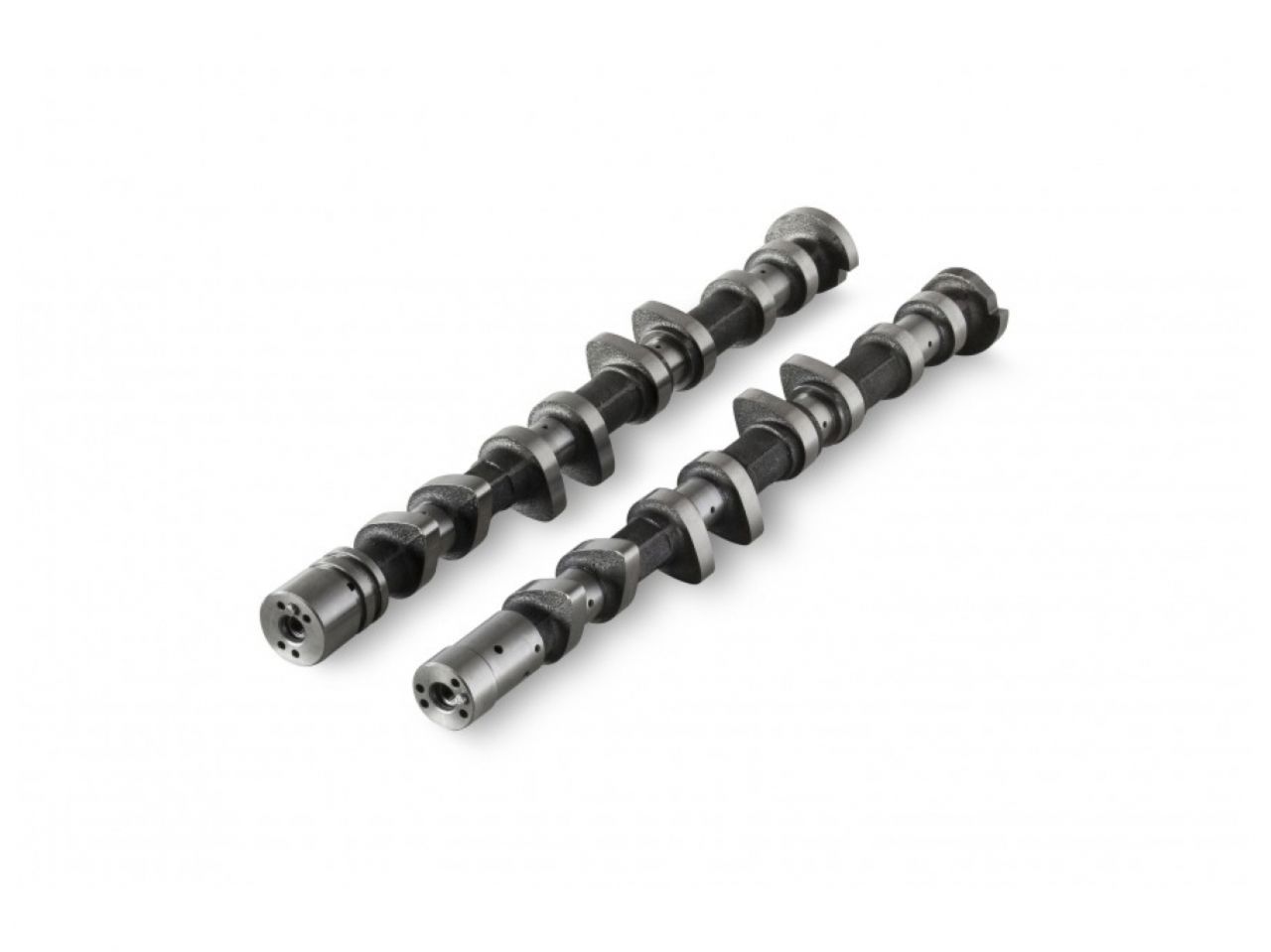

Kelford Cams Mitsubishi EVO X Cams
New Range Of High Performance Camshafts.
278/272 Degrees advertised duration, 11.50mm/11.00mm lift.Stage 3 racing cams to suit high HP engine builds,up to 32lb boost and 9000 RPM with the Kelford valve spring.
 | |||||||
| Engine Make: | Engine Model: | Part Number: | |||||
| MITSUBISHI | EVO X | 214-C | |||||
| Valve Clearance: | Intake: | 0.30mm | Set | COLD | at the | CAM | |
| Exhaust: | 0.35mm | Set | COLD | at the | CAM | ||
| Cam Lift: | Intake: | 11.80mm | Exhaust: | 11.35mm | |||
| Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |||
| Nett Valve Lift: | Intake: | 11.50mm | Exhaust: | 11.00mm | |||
| Advertised Duration @ | 0.10mm | Intake: | 278 | Exhaust: | 272 | ||
| Duration @ | 1.00mm VALVE LIFT | Intake: | 236 | Exhaust: | 230 | ||
| Timing @ | 1.00mm VALVE LIFT | IVO: | EVO: | ||||
| IVC: | EVC: | ||||||
| Suggested Centre Lines: | Intake: | VARI | Exhaust: | VARI | |||
| Lift @ TDC | Intake: | Exhaust: | |||||
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2011 - 2014 | Mitsubishi | Lancer | ES Sportback |
| 2008 - 2015 | Mitsubishi | Lancer | ES, GTS, Evolution MR, Evolution GSR, DE |
| 2015 | Mitsubishi | Lancer | Evolution Final Edition, SE Limited Edition, SE Limited Edition Sportback |
| 2010 | Mitsubishi | Lancer | Evolution SE |
| 2011 - 2015 | Mitsubishi | Lancer | GT Sportback, SE Sportback, GT |
| 2014 | Mitsubishi | Lancer | Limited Edition, Evolution |
| 2010 - 2011 | Mitsubishi | Lancer | Ralliart Sportback, Evolution MR Touring, GTS Sportback |
| 2010 - 2015 | Mitsubishi | Lancer | Ralliart, SE |
Kelford Cams Mitsubishi EVO X Cams
Sale price$655.50 USD
Regular price$690.00 USD
