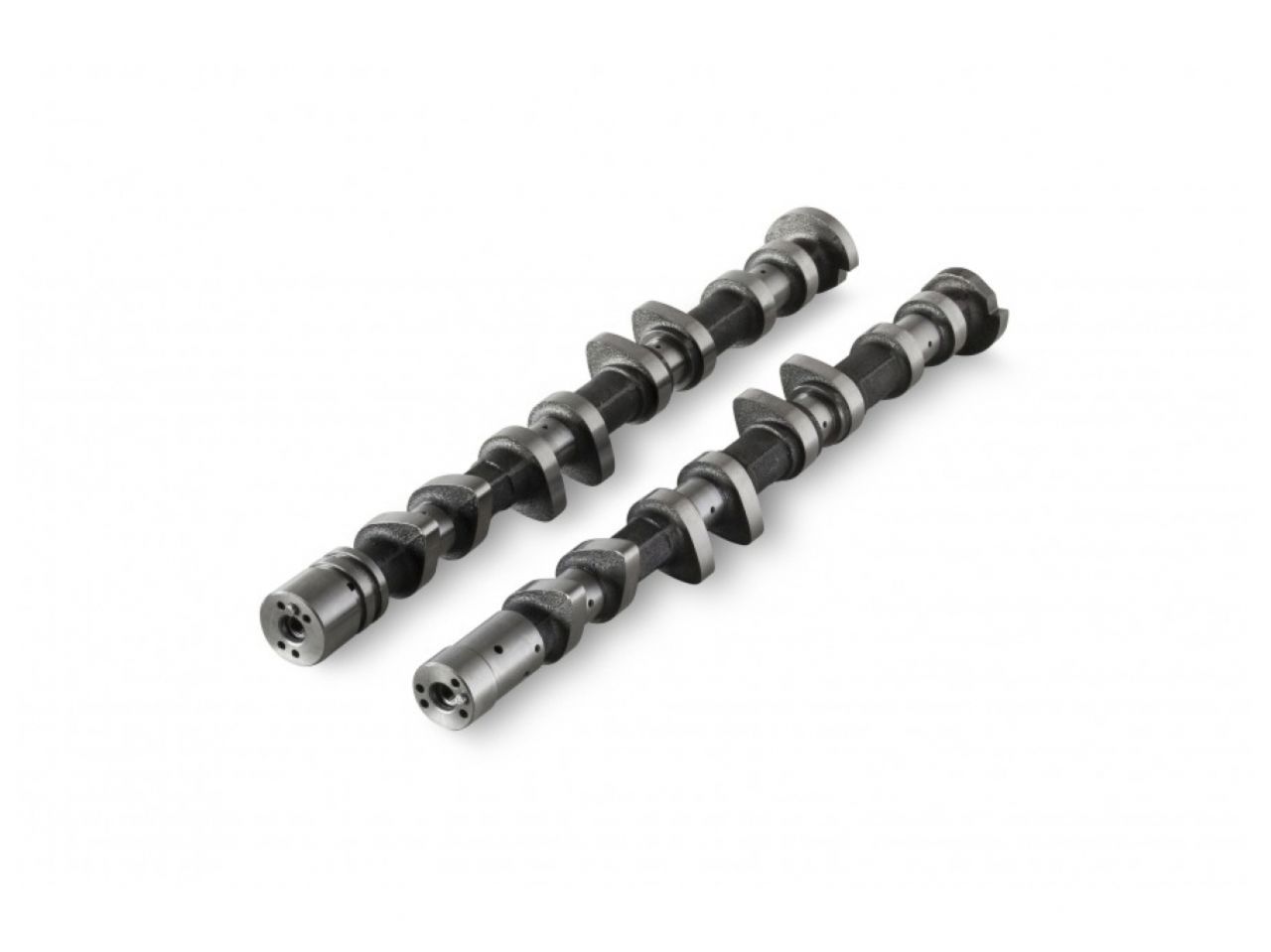

Kelford Cams Mitsubishi 4B11 EVO X - 270 260 - KVS11 - Requires Valve Springs - Sta
New Range Of High Performance Camshafts.
270/262 Degrees advertised duration, 11.00mm/10.00mm lift.Stage 2 high performance cams. These suit 350-550HP engine builds, up to 32lbs boost and 9000 RPM with the Kelford valve spring.
 | |||||||
| Engine Make: | Engine Model: | Part Number: | |||||
| MITSUBISHI | EVO X | 214-B | |||||
| Valve Clearance: | Intake: | 0.30mm | Set | COLD | at the | CAM | |
| Exhaust: | 0.35mm | Set | COLD | at the | CAM | ||
| Cam Lift: | Intake: | 11.30mm | Exhaust: | 10.35mm | |||
| Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |||
| Nett Valve Lift: | Intake: | 11.00mm | Exhaust: | 10.00mm | |||
| Advertised Duration @ | 0.10mm | Intake: | 270 | Exhaust: | 262 | ||
| Duration @ | 1.00mm VALVE LIFT | Intake: | 228 | Exhaust: | 220 | ||
| Timing @ | 1.00mm VALVE LIFT | IVO: | EVO: | ||||
| IVC: | EVC: | ||||||
| Suggested Centre Lines: | Intake: | VARI | Exhaust: | VARI | |||
| Lift @ TDC | Intake: | Exhaust: | |||||
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2011 - 2014 | Mitsubishi | Lancer | ES Sportback |
| 2015 | Mitsubishi | Lancer | Evolution Final Edition, SE Limited Edition Sportback, SE Limited Edition |
| 2008 - 2015 | Mitsubishi | Lancer | Evolution MR, GTS, ES, DE, Evolution GSR |
| 2010 | Mitsubishi | Lancer | Evolution SE |
| 2014 | Mitsubishi | Lancer | Limited Edition, Evolution |
| 2010 - 2011 | Mitsubishi | Lancer | Ralliart Sportback, GTS Sportback, Evolution MR Touring |
| 2009 - 2015 | Mitsubishi | Lancer | Ralliart, SE |
| 2011 - 2015 | Mitsubishi | Lancer | SE Sportback, GT, GT Sportback |
| 2009 | Mitsubishi | Lancer | Special Edition, Evolution RS |
Kelford Cams Mitsubishi 4B11 EVO X - 270 260 - KVS11 - Requires Valve Springs - Sta
Sale price$655.50 USD
Regular price$690.00 USD
