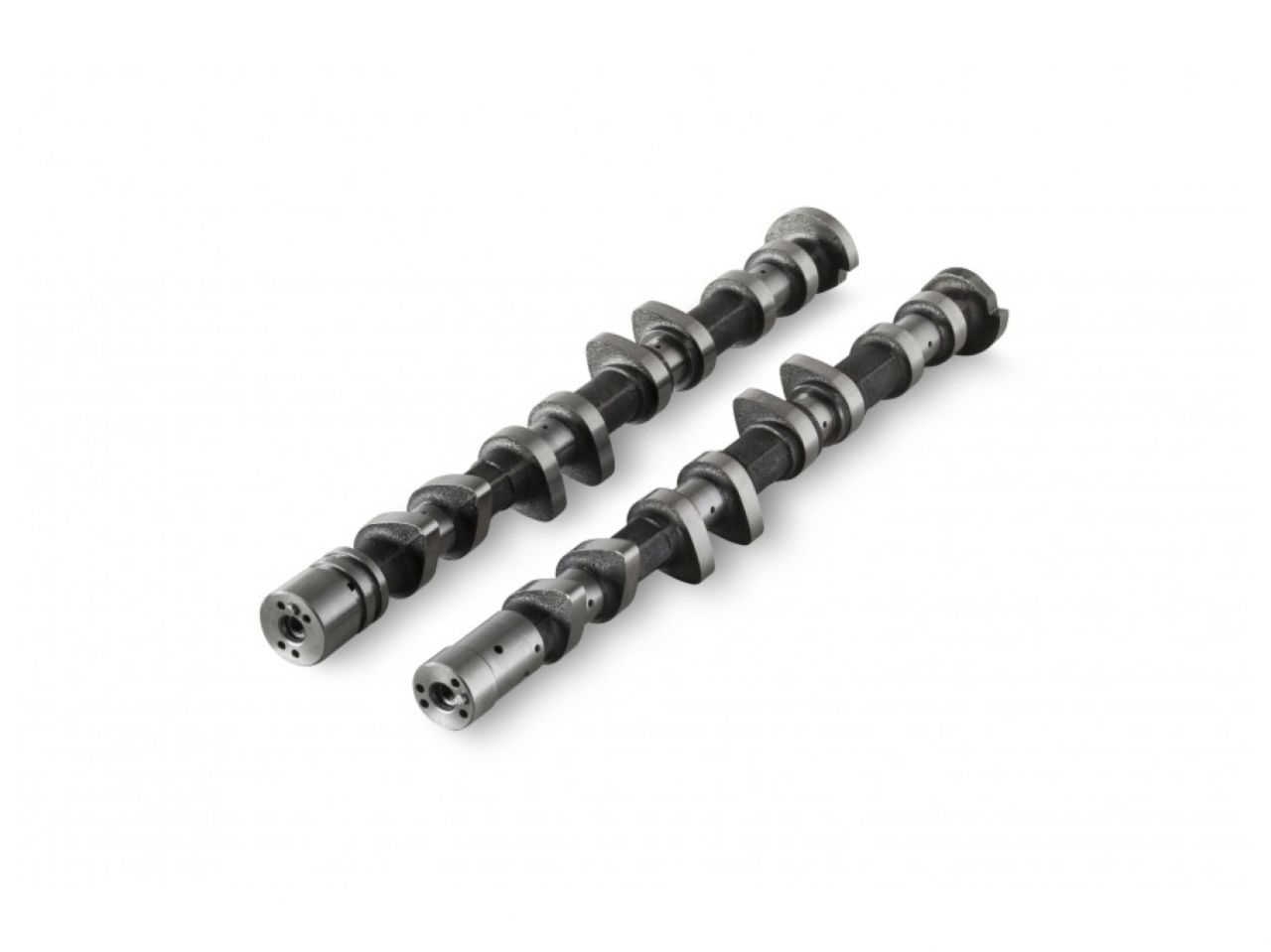

Kelford Cams Mitsubishi 4B11 EVO X - 264/252 - Stage 1 - Kvs11 - Camshaft To Suit

Kelford Cams Mitsubishi 4B11 EVO X - 264/252 - Stage 1 - Kvs11 - Camshaft To Suit

sku: 0U5W1 | mpn: 214-A
$655.50
$690.00 $655.50
Sale Sold out
Shipping calculated at checkout.

Out of stock

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

264/252 Degrees advertised duration, 10.00mm/9.30mm lift.

Additional Information:

These stage 1 high performance camshafts can run with the stock valve spring at stock RPM limit, or use our spring to run up to 32lb boost and 9000 RPM.

Engine Make: Engine Model: Part Number:
MITSUBISHI EVO X 214-A
Valve Clearance: Intake: 0.30mm Set COLD at the CAM
  Exhaust: 0.35mm Set COLD at the CAM

Cam Lift:   Intake: 10.30mm Exhaust: 9.65mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 10.00mm Exhaust: 9.30mm
Advertised Duration @ 0.10mm Intake: 264 Exhaust: 252
Duration @ 1.00mm VALVE LIFT Intake: 226 Exhaust: 212
Timing @ 1.00mm VALVE LIFT IVO:   EVO:
    IVC:   EVC:
Suggested Centre Lines:   Intake: VARI Exhaust: VARI
  Lift @ TDC Intake:   Exhaust:


Vehicle Fitments:

Year Make Model Submodel
2011 - 2014 Mitsubishi Lancer ES Sportback
2009 Mitsubishi Lancer Evolution RS, Special Edition
2010 Mitsubishi Lancer Evolution SE
2011 - 2015 Mitsubishi Lancer GT, SE Sportback, GT Sportback
2008 - 2015 Mitsubishi Lancer GTS, Evolution MR, Evolution GSR, DE, ES
2014 Mitsubishi Lancer Limited Edition, Evolution
2010 - 2011 Mitsubishi Lancer Ralliart Sportback, Evolution MR Touring, GTS Sportback
2009 - 2015 Mitsubishi Lancer Ralliart, SE
2015 Mitsubishi Lancer SE Limited Edition, Evolution Final Edition, SE Limited Edition Sportback
