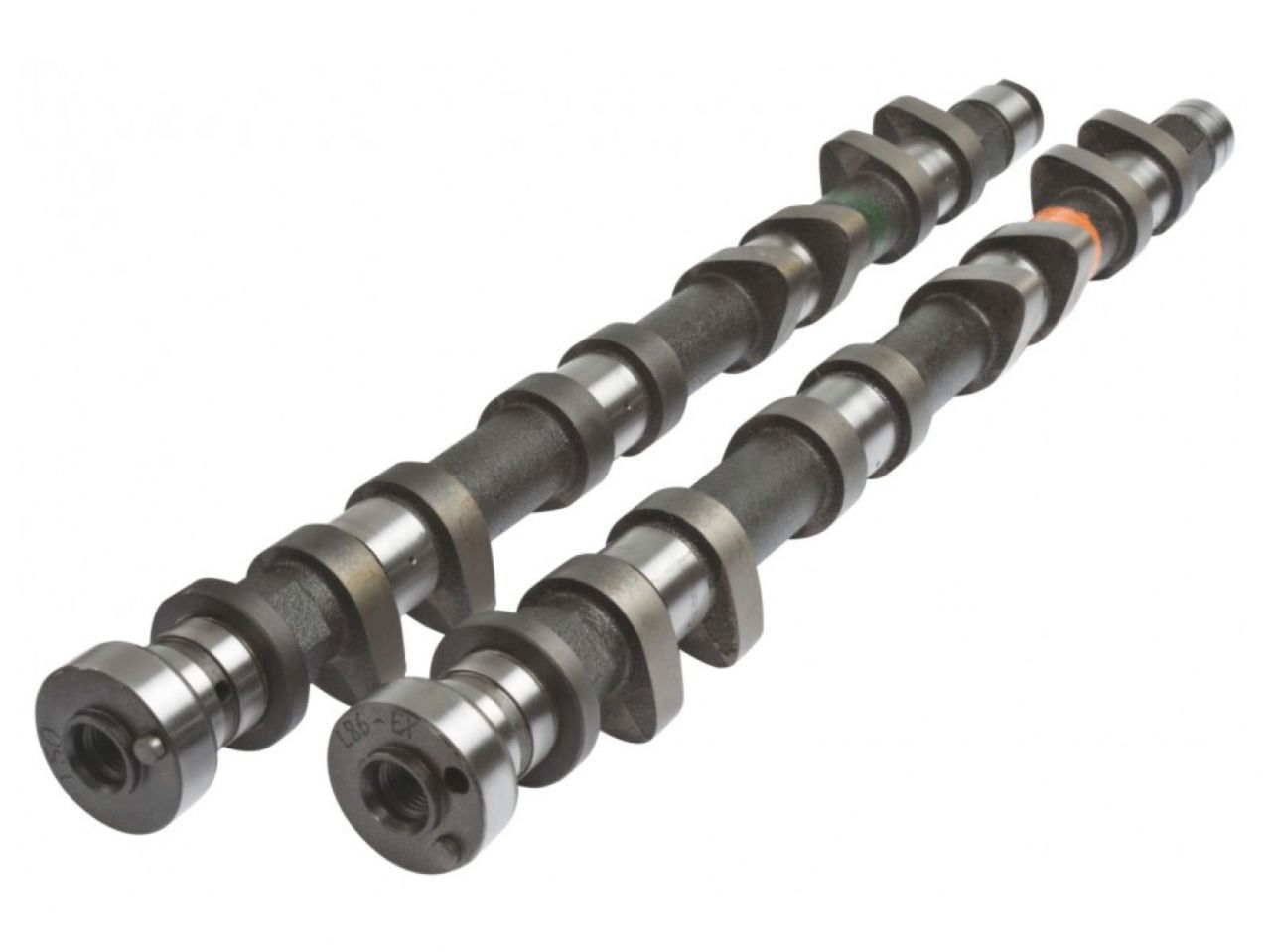

Kelford Cams Nissan KA24 Turbo Cam Set

278/278 Degrees advertised duration, 11.00mm/11.00mm lift.

Additional Information:

Stage 3 cams to suit turbocharged engines. These cams require cylinder head clearancing in order for the cams to rotate.

Engine Make:		Engine Model:				Part Number:
NISSAN		KA24				213-C
Valve Clearance:		Intake:	0.25mm	Set	COLD	at the	CAM
		Exhaust:	0.25mm	Set	COLD	at the	CAM
Cam Lift:		Intake:			11.25mm	Exhaust:	11.25mm
Rocker Ratio:		Intake:			1	Exhaust:	1
Nett Valve Lift:		Intake:			11.00mm	Exhaust:	11.00mm
Advertised Duration @	0.30mm	Intake:			278	Exhaust:	278
Duration @	1.00mm VALVE LIFT	Intake:			236	Exhaust:	236
Timing @	1.00mm VALVE LIFT	IVO:			8 BTDC	EVO:	54 BBDC
		IVC:			48 ABDC	EVC:	2 ATDC
Suggested Centre Lines:		Intake:			110	Exhaust:	116
VALVE	Lift @ TDC	Intake:			1.83mm	Exhaust:	1.20

Vehicle Fitments:
