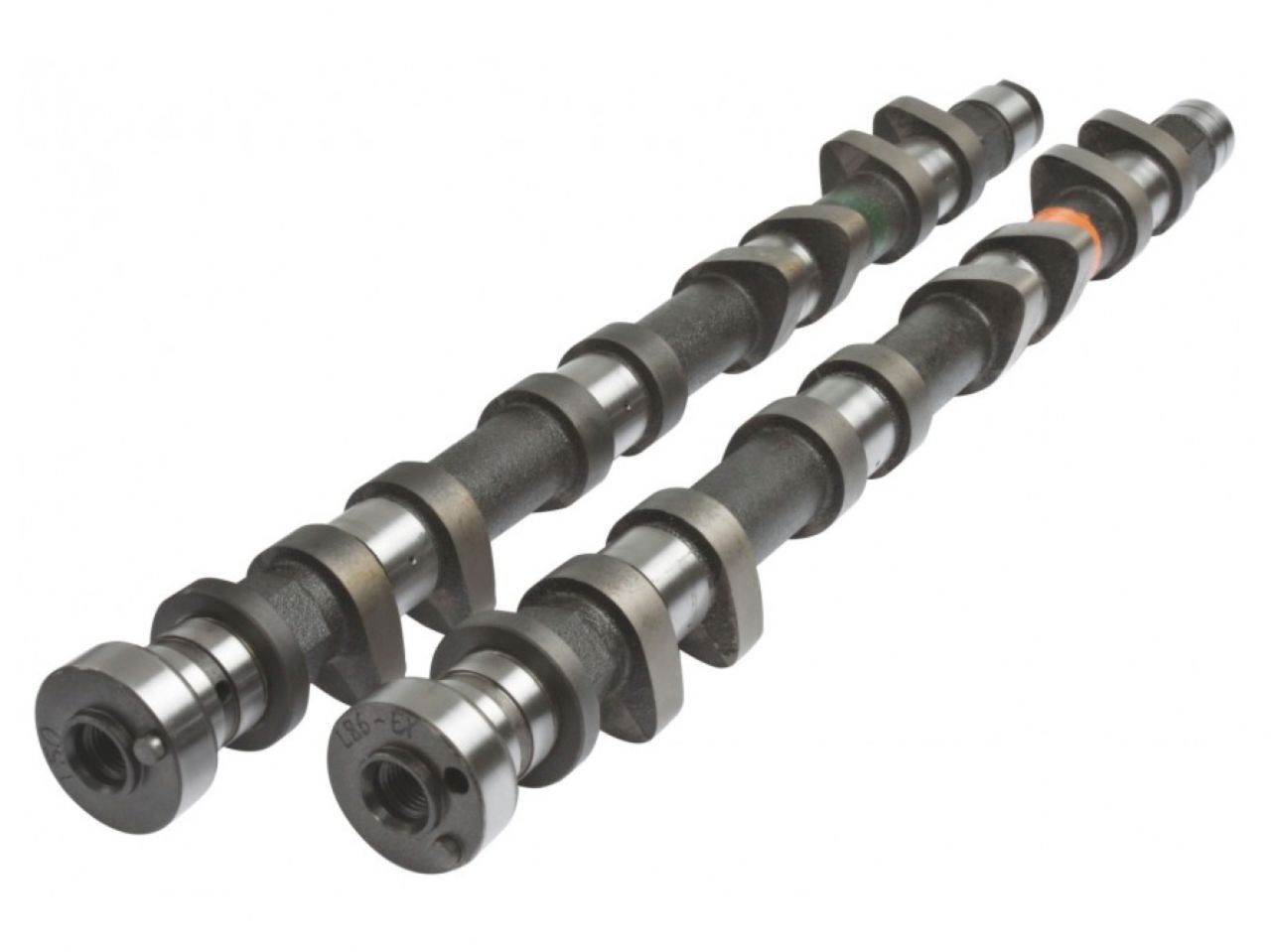

Kelford Cams Mechanical Cam Set Stage 2 Cam; For Turbo Applications w/ Stock Valve

272/272 Degrees advertised duration, 9.80mm/9.80mm lift.
Additional Information:
Stage 2 cams to suit turbocharged engines with over 400HP.
![]() | |||||||
Engine Make: | Engine Model: | Part Number: | |||||
NISSAN | KA24 | 213-B | |||||
Valve Clearance: | Intake: | 0.25mm | Set | COLD | at the | CAM | |
Exhaust: | 0.25mm | Set | COLD | at the | CAM | ||
Cam Lift: | Intake: | 10.05mm | Exhaust: | 10.05mm | |||
Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |||
Nett Valve Lift: | Intake: | 9.80mm | Exhaust: | 9.80mm | |||
Advertised Duration @ | 0.30mm | Intake: | 272 | Exhaust: | 272 | ||
Duration @ | 1.00mm VALVE LIFT | Intake: | 232 | Exhaust: | 232 | ||
Timing @ | 1.00mm VALVE LIFT | IVO: | 6 BTDC | EVO: | 52 BBDC | ||
IVC: | 46 ABDC | EVC: | 0 TDC | ||||
Suggested Centre Lines: | Intake: | 110 | Exhaust: | 116 | |||
VALVE | Lift @ TDC | Intake: | 1.70mm | Exhaust: | 1.02 |
Vehicle Fitments:
Year | Make | Model | Submodel |
---|---|---|---|
1989 - 1993 | Nissan | 240SX | Base |
1991 - 1992 | Nissan | 240SX | LE |
1989 - 1994 | Nissan | 240SX | SE |
1989 - 1990 | Nissan | 240SX | XE |

Kelford Cams Mechanical Cam Set Stage 2 Cam; For Turbo Applications w/ Stock Valve
Sale price$627.00 USD
Regular price$660.00 USD
