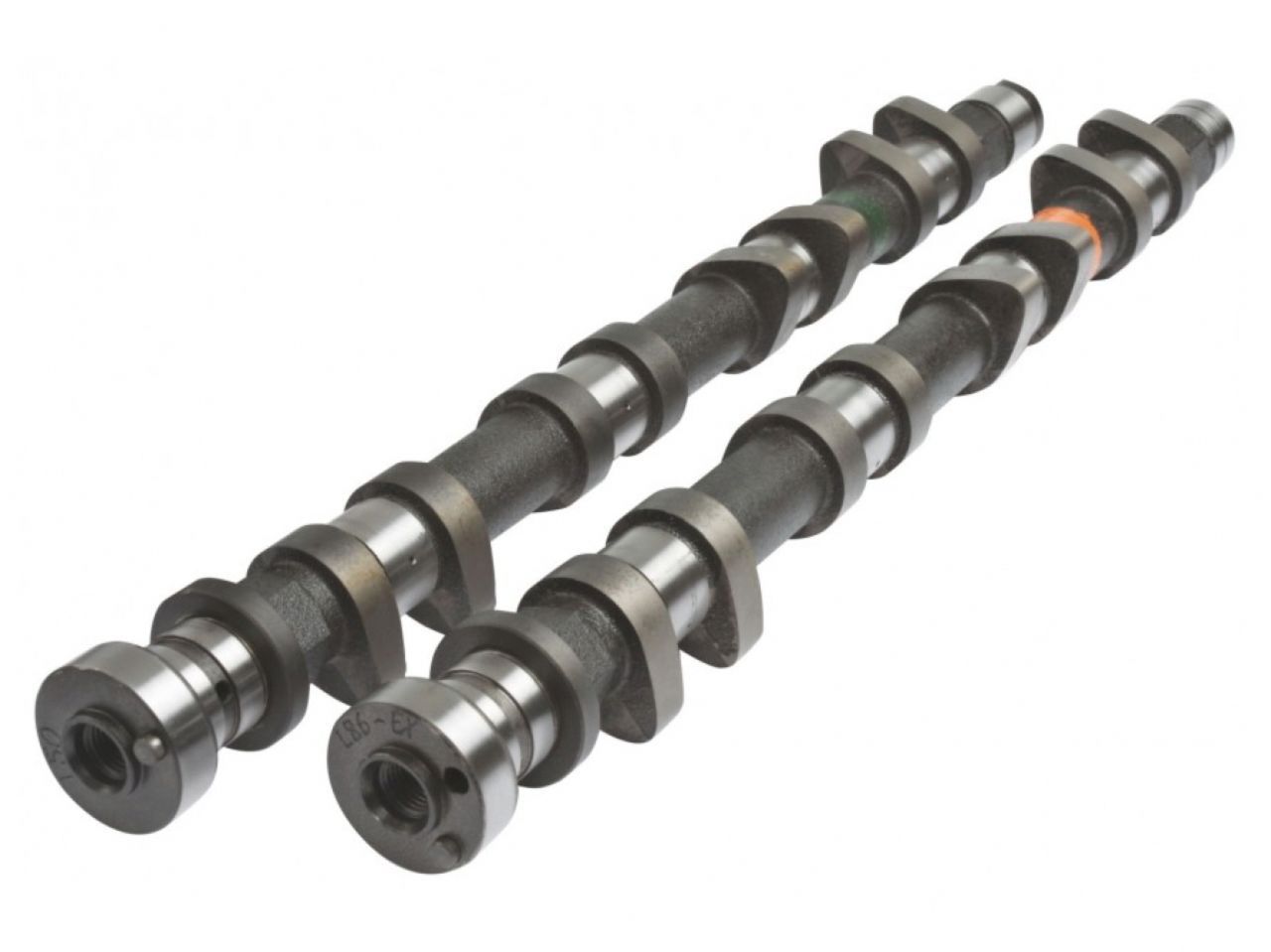

Kelford Cams Mechanical Cam Set; Stage 1 Cam; For Turbo Applications with Stock Val

New Range Of High Performance Camshafts.260/260 Degrees advertised duration, 9.38mm/9.38mm lift.Stage 1 drop in cams for turbocharged or naturally aspirated applications.

Engine Make:		Engine Model:				Part Number:
NISSAN		KA24				213-A
Valve Clearance:		Intake:	0.20mm	Set	COLD	at the	CAM
Exhaust:	0.20mm	Set	COLD	at the	CAM
Cam Lift:	Intake:			9.58mm	Exhaust:	9.58mm
Rocker Ratio:	Intake:			1	Exhaust:	1
Nett Valve Lift:	Intake:			9.38mm	Exhaust:	9.38mm
Advertised Duration @	0.30mm	Intake:			260	Exhaust:	260
Duration @	1.00mm VALVE LIFT	Intake:			222	Exhaust:	222
Timing @	1.00mm VALVE LIFT	IVO:			1 BTDC	EVO:	43 BBDC
IVC:			41 ABDC	EVC:	1 BTDC
Suggested Centre Lines:	Intake:			110	Exhaust:	112
VALVE	Lift @ TDC	Intake:			1.20mm	Exhaust:	1.00

Vehicle Fitments:
