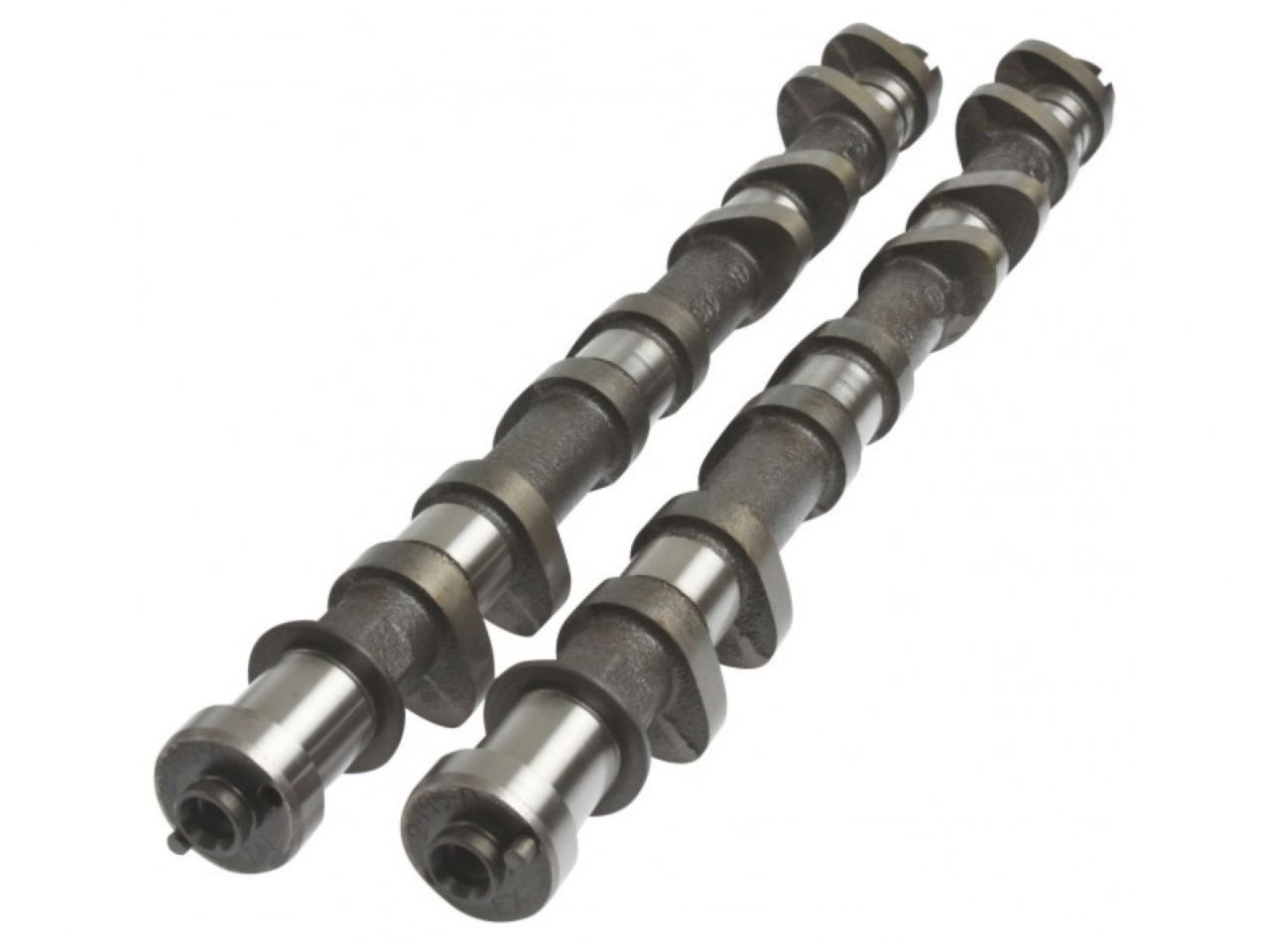

Kelford Cams Mechanical Cam Set; Drag Race Cam; For Shim Over Bucket; For High HP;
Kelford Cams Mechanical Cam Set; Drag Race Cam; For Shim Over Bucket; For High HP;
sku: 0U5T6 | mpn: 2-195-TC
Regular price
$655.50
Regular price
$690.00
Sale price
$655.50
Shipping calculated at checkout.
Out of stock
Emissions
This is not an emissions item.
Quantity
Couldn't load pickup availability
- Ships Worldwide
- Easy Returns
- Fast Shipping
New Range Of High Performance Camshafts.278/278 Degrees advertised duration. 9.90mm/9.90mm lift.3S-GTE Turbo drag racing cams for high HP and top end RPM.
 | |||||||
| Engine Make: | Engine Model: | Part Number: | |||||
| TOYOTA | 3S-GE (Gen 2) | 2-195-TC | |||||
| Valve Clearance: | Intake: | 0.25mm | Set | COLD | at the | CAM | |
| Exhaust: | 0.30mm | Set | COLD | at the | CAM | ||
| Cam Lift: | Intake: | 10.15mm | Exhaust: | 10.20mm | |||
| Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |||
| Nett Valve Lift: | Intake: | 9.90mm | Exhaust: | 9.90mm | |||
| Advertised Duration @ | 0.30mm | Intake: | 278 | Exhaust: | 278 | ||
| Duration @ | 1.00mm VALVE LIFT | Intake: | 240 | Exhaust: | 240 | ||
| Timing @ | 1.00mm VALVE LIFT | IVO: | 15 BTDC | EVO: | 55 BBDC | ||
| IVC: | 45 ABDC | EVC: | 5 ATDC | ||||
| Suggested Centre Lines: | Intake: | 105 | Exhaust: | 115 | |||
| VALVE | Lift @ TDC | Intake: | 2.58mm | Exhaust: | 1.47 | ||
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1990 - 1992 | Toyota | Celica | All Trac |
| 1990 - 1993 | Toyota | Celica | GT, ST, GTS |
| 1993 | Toyota | Celica | GTS All Trac |
| 1991 - 1993 | Toyota | MR2 | Base, Turbo |
