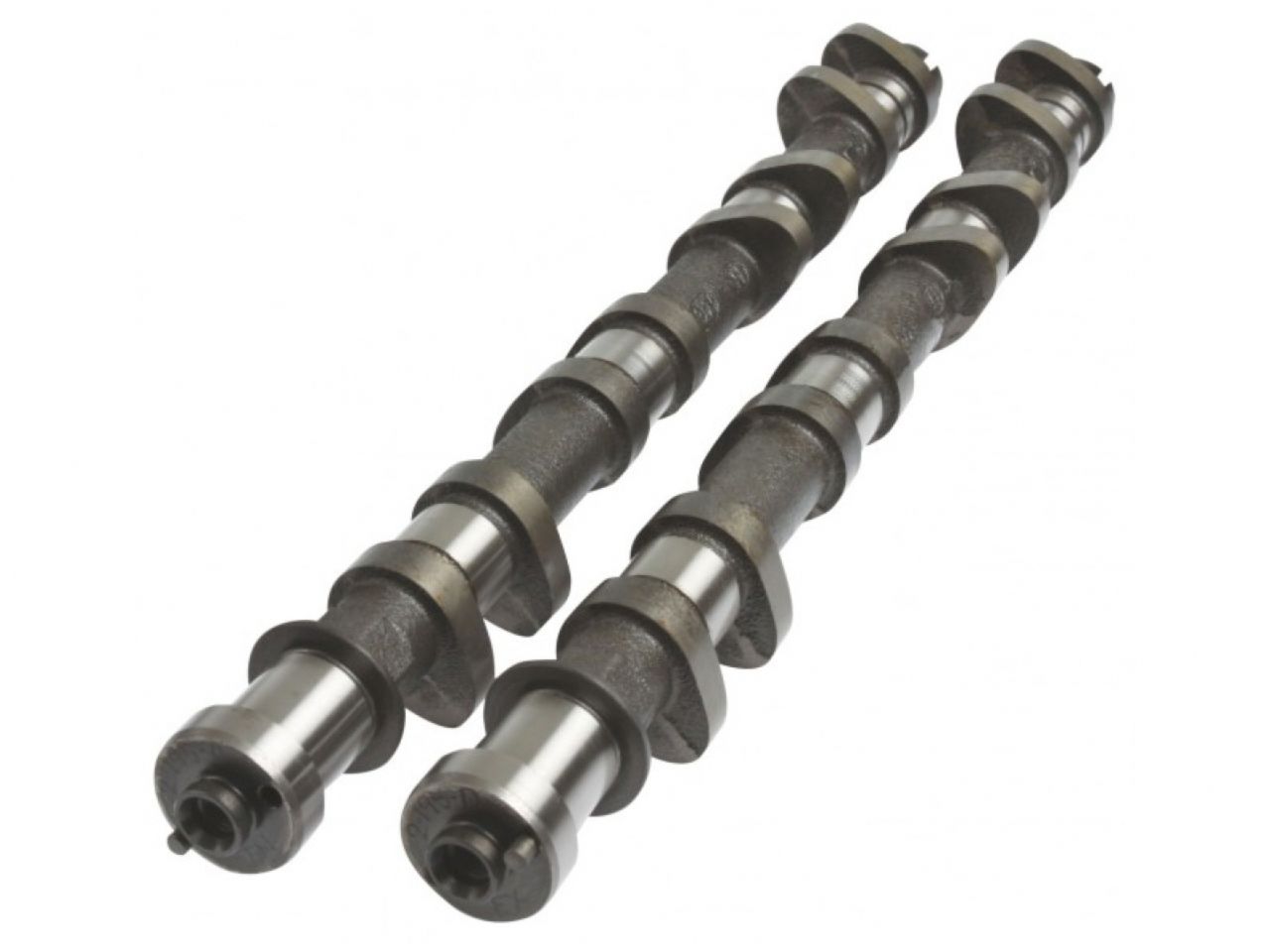

Kelford Cams Mechanical Cam Set; Serious Street Cam; For Shim Over Bucket; Requires
New Range Of High Performance Camshafts.270/270 Degrees advertised duration. 9.60mm/9.60mm lift.3S-GTE Turbo cams for serious street performance. Turbo and ECU upgrade required.
 | |||||||
| Engine Make: | Engine Model: | Part Number: | |||||
| TOYOTA | 3S-GE (Gen 2) | 2-195-TB | |||||
| Valve Clearance: | Intake: | 0.25mm | Set | COLD | at the | CAM | |
| Exhaust: | 0.30mm | Set | COLD | at the | CAM | ||
| Cam Lift: | Intake: | 9.85mm | Exhaust: | 9.90mm | |||
| Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |||
| Nett Valve Lift: | Intake: | 9.60mm | Exhaust: | 9.60mm | |||
| Advertised Duration @ | 0.30mm | Intake: | 270 | Exhaust: | 270 | ||
| Duration @ | 1.00mm VALVE LIFT | Intake: | 232 | Exhaust: | 232 | ||
| Timing @ | 1.00mm VALVE LIFT | IVO: | 8 BTDC | EVO: | 52 BBDC | ||
| IVC: | 44 ABDC | EVC: | 0 TDC | ||||
| Suggested Centre Lines: | Intake: | 108 | Exhaust: | 116 | |||
| VALVE | Lift @ TDC | Intake: | 1.80mm | Exhaust: | 0.95 | ||
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1990 - 1992 | Toyota | Celica | All Trac |
| 1990 - 1993 | Toyota | Celica | GT, GTS, ST |
| 1993 | Toyota | Celica | GTS All Trac |
| 1991 - 1993 | Toyota | MR2 | Base, Turbo |
Kelford Cams Mechanical Cam Set; Serious Street Cam; For Shim Over Bucket; Requires
Sale price$655.50 USD
Regular price$690.00 USD
