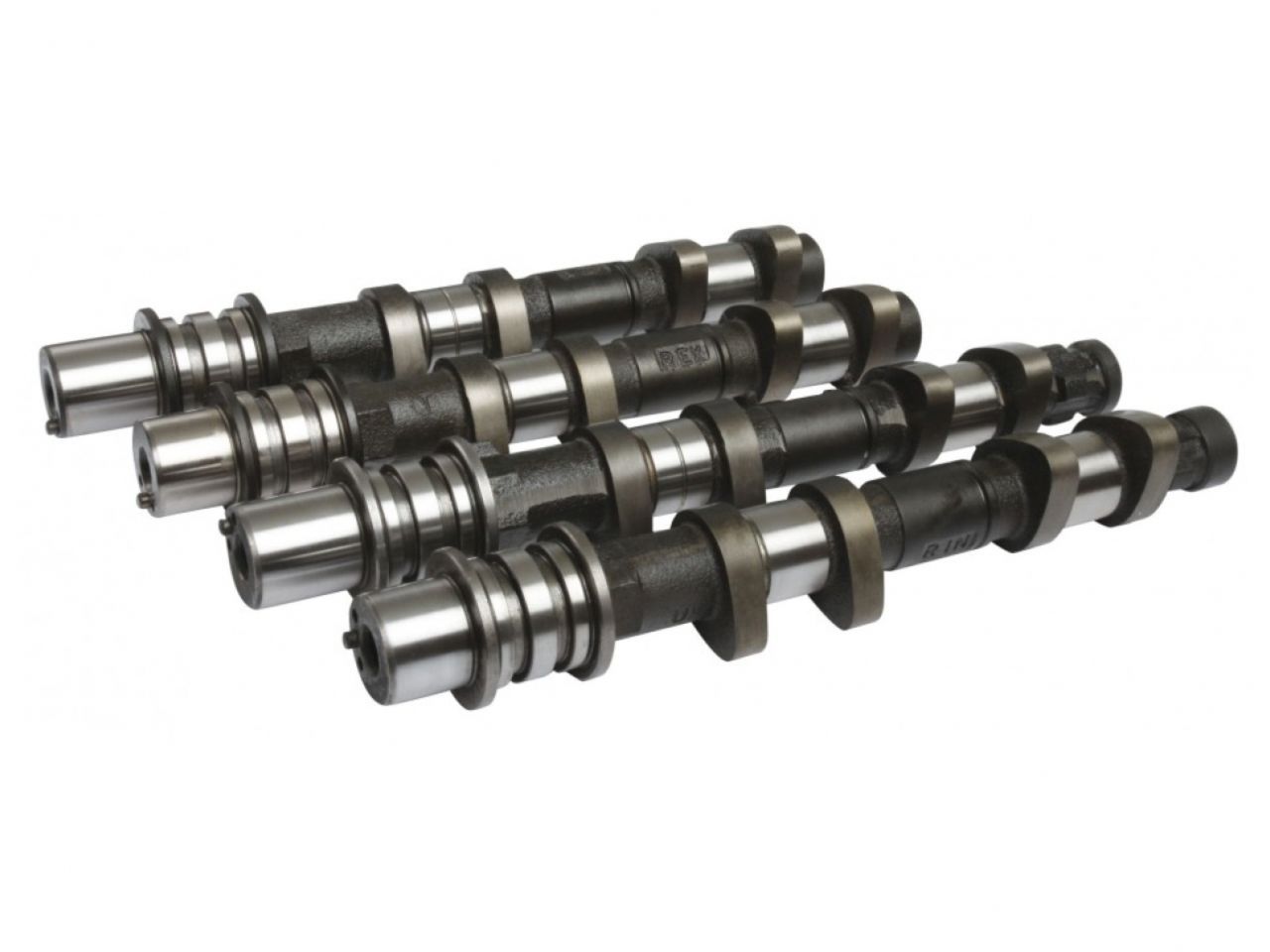

Kelford Cams Mechanical Cam Set; Race Cam; For Built Engine, Stroker Kit, N2o, Etc

New Range Of High Performance Camshafts.274&270/270 Degrees advertised duration. 10.60mm&10.60mm/10.60mm lift.272 degree high performance camshafts to suit most motorsport applications. Suits well built engines on E85.

Engine Make:		Engine Model:				Part Number:
SUBARU		EJ20 WRX Version 5-6 non AVCS				199-E
Valve Clearance:		Intake:	0.20mm	Set	COLD	at the	CAM
Exhaust:	0.25mm	Set	COLD	at the	CAM
Cam Lift:	Intake:			10.80mm	Exhaust:	10.85mm
Rocker Ratio:	Intake:			1	Exhaust:	1
Nett Valve Lift:	Intake:			10.60mm	Exhaust:	10.60mm
Advertised Duration @	0.25mm	Intake:			274	Exhaust:	270
Duration @	1.00mm VALVE LIFT	Intake:			232	Exhaust:	228
Timing @	1.00mm VALVE LIFT	IVO:			6 BTDC	EVO:	47 BBDC
IVC:			46 ABDC	EVC:	1 ATDC
Suggested Centre Lines:	Intake:			110	Exhaust:	113
VALVE	Lift @ TDC	Intake:			1.68mm	Exhaust:	1.13

Vehicle Fitments:
