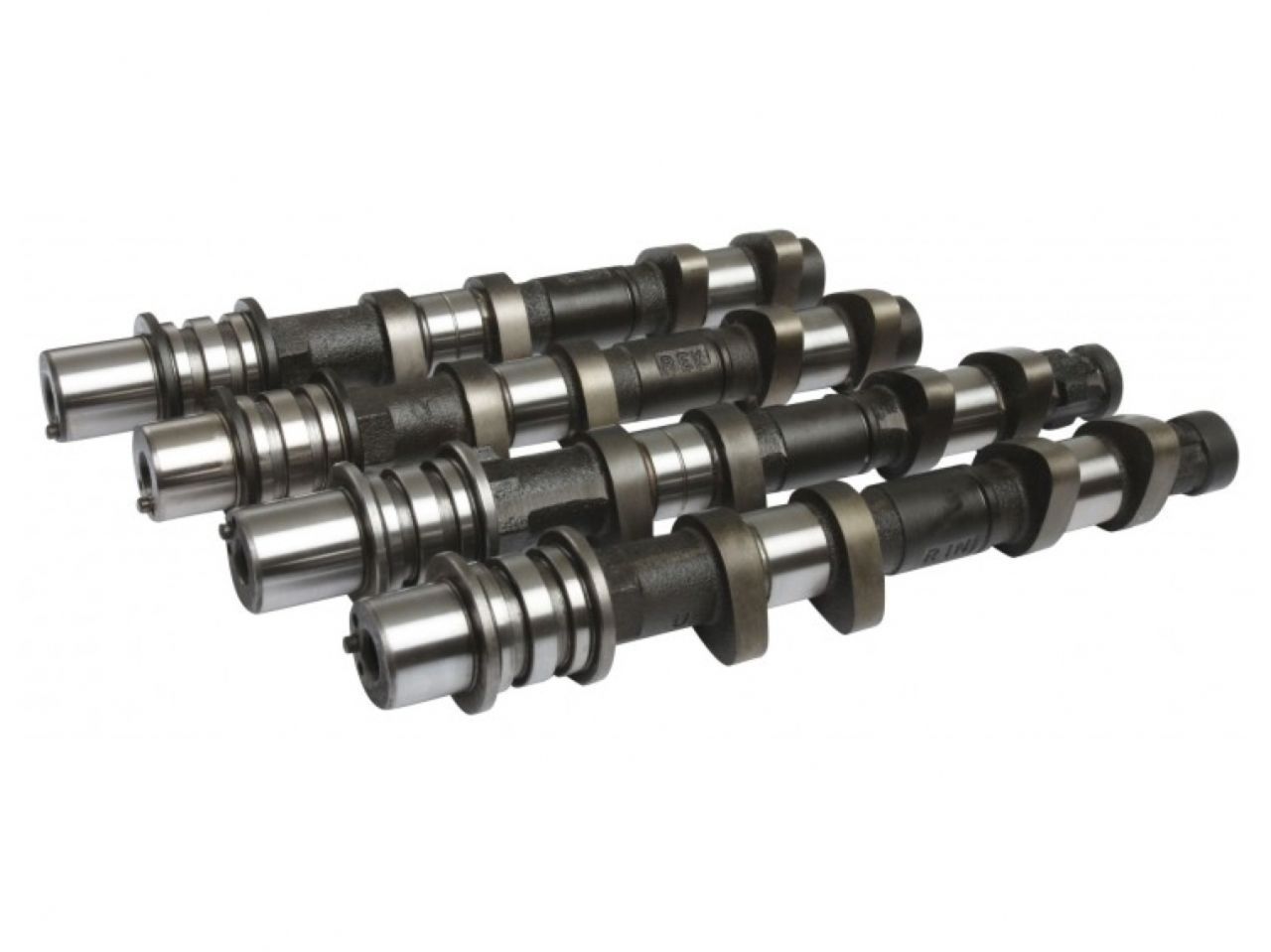

Kelford Cams Mechanical Cam Set; Hot Street Cam; For Turbo Upgrade [Subaru Impreza]

New Range Of High Performance Camshafts.268&264/264 Degrees advertised duration. 10.30mm&10.00mm/10.00mm lift.264 degree camshafts to suit street strip and track applications, requires ecu and turbo upgrade.

Engine Make:		Engine Model:				Part Number:
SUBARU		EJ20 WRX Version 5-6 non AVCS				199-C
Valve Clearance:		Intake:	0.20mm	Set	COLD	at the	CAM
Exhaust:	0.25mm	Set	COLD	at the	CAM
Cam Lift:	Intake:			10.50mm	Exhaust:	10.25mm
Rocker Ratio:	Intake:			1	Exhaust:	1
Nett Valve Lift:	Intake:			10.30mm	Exhaust:	10.00mm
Advertised Duration @	0.25mm	Intake:			268	Exhaust:	264
Duration @	1.00mm VALVE LIFT	Intake:			226	Exhaust:	222
Timing @	1.00mm VALVE LIFT	IVO:			3 BTDC	EVO:	43 BBDC
IVC:			43 ABDC	EVC:	1 BTDC
Suggested Centre Lines:	Intake:			110	Exhaust:	112
VALVE	Lift @ TDC	Intake:			1.36mm	Exhaust:	0.92

Vehicle Fitments:
