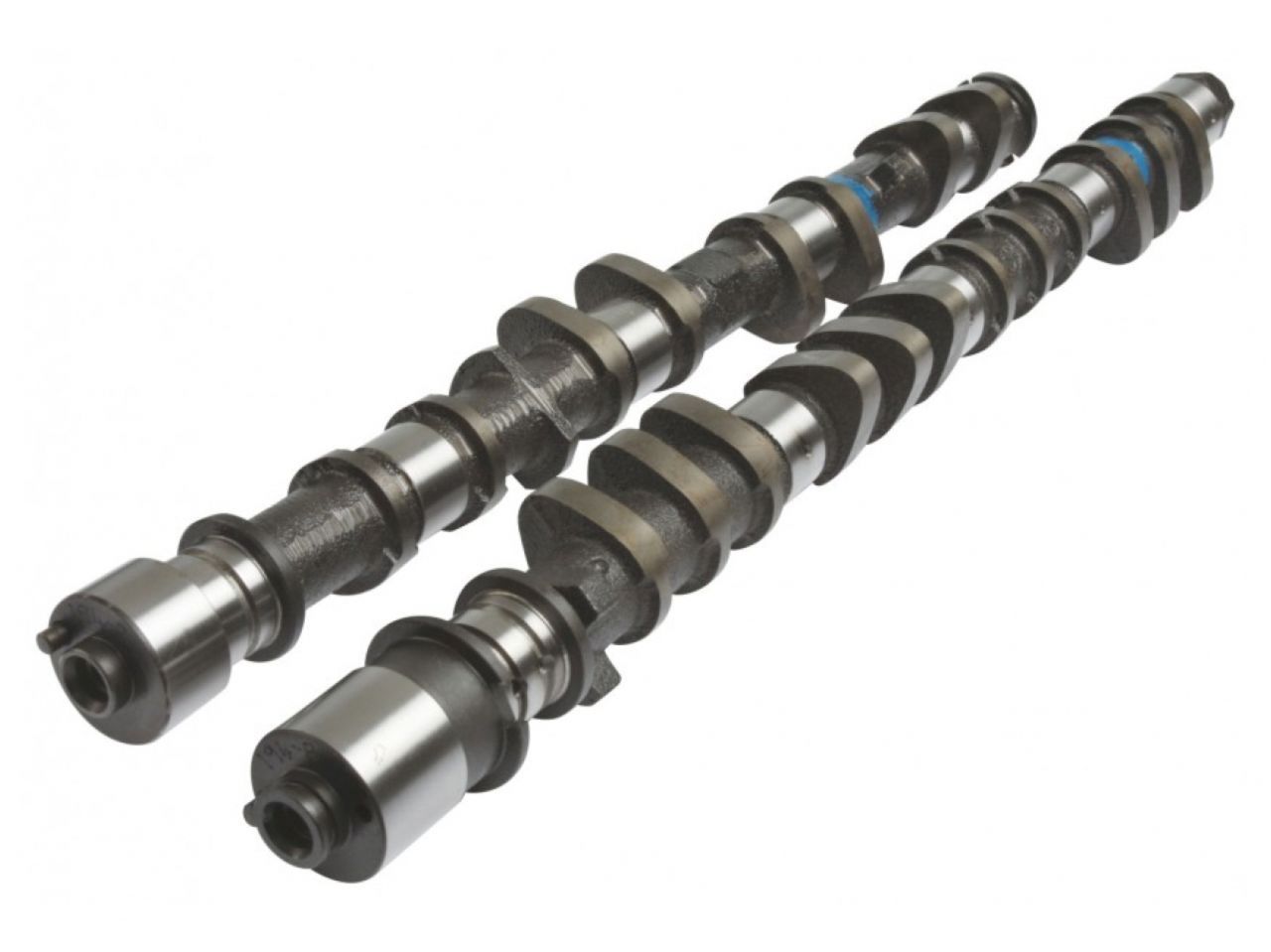

Kelford Cams Mechanical Cam Set; Ultimate Race cam; For High RPM, High Compression,

New Range Of High Performance Camshafts.
302/290 Degrees advertised duration. 10.50mm/10.00mm lift.Racing cams to suit high compression, high RPM professionally built competition engine in a light car. Great with 7A short block. These cams are not for use with VVT.

Engine Make:		Engine Model:				Part Number:
TOYOTA		4A-GE, 20 VALVE				194-E
Valve Clearance:		Intake:	0.25mm	Set	COLD	at the	CAM
Exhaust:	0.30mm	Set	COLD	at the	CAM
Cam Lift:	Intake:			10.75mm	Exhaust:	10.30mm
Rocker Ratio:	Intake:			1	Exhaust:	1
Nett Valve Lift:	Intake:			10.50mm	Exhaust:	10.00mm
Advertised Duration @	0.10mm	Intake:			302	Exhaust:	290
Duration @	1.00mm VALVE LIFT	Intake:			266	Exhaust:	250
Timing @	1.00mm VALVE LIFT	IVO:			33 BTDC	EVO:	50 BBDC
IVC:			53 ABDC	EVC:	20 ATDC
Suggested Centre Lines:	Intake:			100	Exhaust:	105
VALVE	Lift @ TDC	Intake:			4.08mm	Exhaust:	2.87

Vehicle Fitments:
