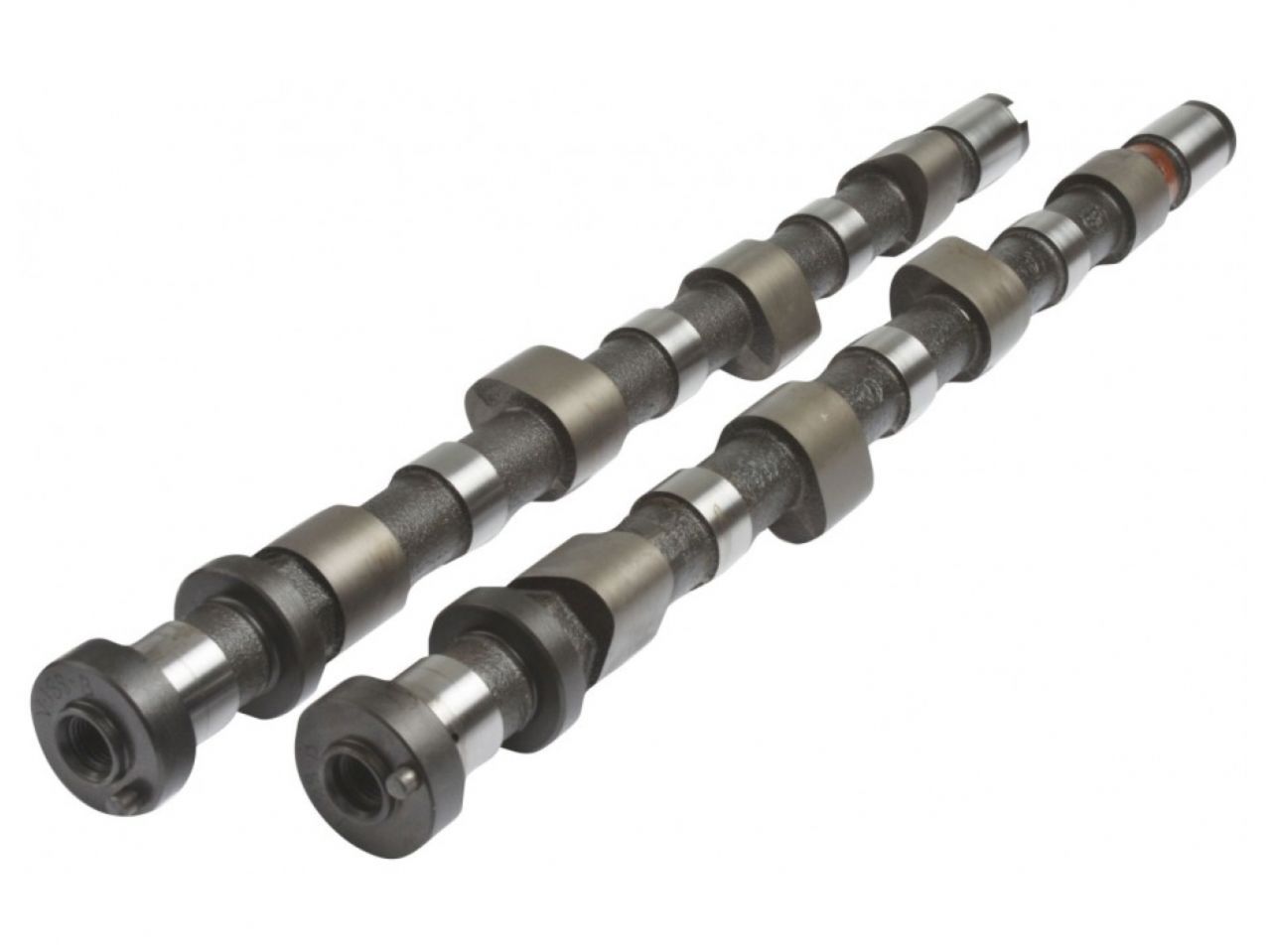

Kelford Cams Hydraulic Cam Set; Ultimate Drift Spec; Requires Turbo & ECU Upgrade
Kelford Cams Hydraulic Cam Set; Ultimate Drift Spec; Requires Turbo & ECU Upgrade
Out of stock
Not sure this is the right part? Ask us to check fitment. Include your year, make, model, engine and manufacturer part number.
Need this part?
This item is currently unavailable. Ask us about availability or help finding a suitable replacement.
Shipping & returns
This selection is unavailable. Ask us to confirm availability and timing.
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policy268/272 Degrees advertised duration, 12.00mm/11.50mm lift.
Additional Information:
Ultimate drift spec cams featuring maximum lobe area and low duration for fast spool and lots of top end power. Requires KVS93 or KVS93-BT valve springs if using over 2 bar boost.
 | |||||||
| Engine Make: | Engine Model: | Part Number: | |||||
| NISSAN | SR20DET S13 TURBO | 188-B | |||||
| Valve Clearance: | Intake: | Set | at the | ||||
| Exhaust: | Set | at the | |||||
| Cam Lift: | Intake: | 7.74mm | Exhaust: | 7.42mm | |||
| Rocker Ratio: | Intake: | 1.55 | Exhaust: | 1.55 | |||
| Nett Valve Lift: | Intake: | 12.00mm | Exhaust: | 11.50mm | |||
| Advertised Duration @ | 0.10mm | Intake: | 268 | Exhaust: | 272 | ||
| Duration @ | 1.00mm VALVE LIFT | Intake: | 226 | Exhaust: | 230 | ||
| Timing @ | 1.00mm VALVE LIFT | IVO: | 5 BTDC | EVO: | 50 BBDC | ||
| IVC: | 41 ABDC | EVC: | 0 TDC | ||||
| Suggested Centre Lines: | Intake: | 108 | Exhaust: | 115 | |||
| VALVE | Lift @ TDC | Intake: | 1.52mm | Exhaust: | 1.06 | ||
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1989 - 1998 | Nissan | 240SX | Base, SE |
| 1991 - 1998 | Nissan | 240SX | LE |
| 1989 - 1990 | Nissan | 240SX | XE |
