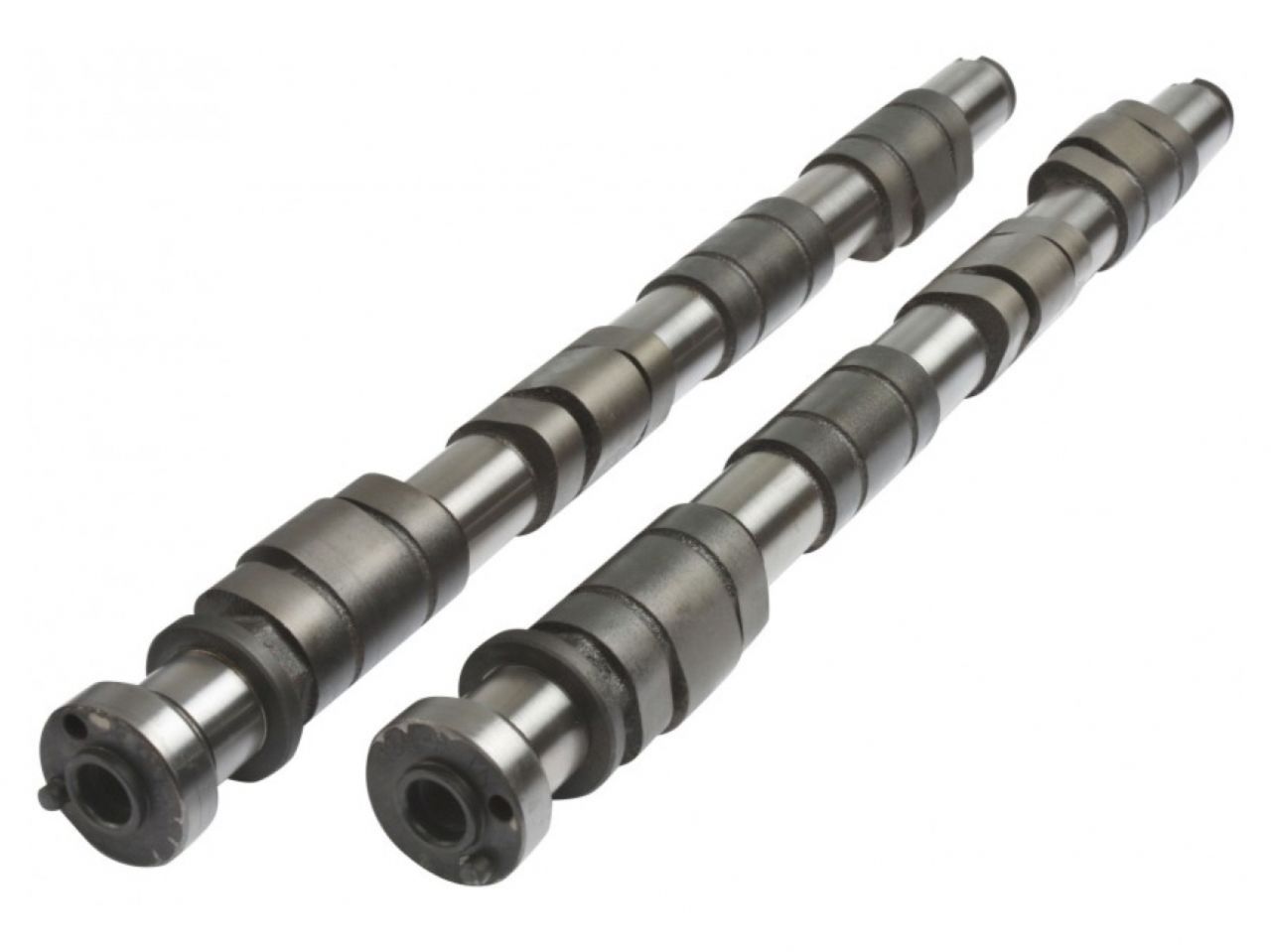

Kelford Cams Nissan SR16VE / 20VE P11/P12 (Mech) Turbo Cam Set

292/303 Degrees advertised duration, 11.40mm/11.40mm lift.Nissan SR20VE-T cams for high HP turbocharged engines for drag racing. Primary lobe specification is 260/260 Degrees advertised duration, 10.20mm/10.15mm lift.

Specifications

Engine Make: Nissan

Engine Model: SR16/20VE

Valve Clearance: (Intake) 0.20mm Set Cold at the CAM; (Exhaust)0.27mm Set Cold at the CAM

Cam Lift: 7.33mm (Intake) / 7.40mm (Exhaust)

Rocker Ratio: 1.6 (Intake) / 1.6 (Exhaust)

Nett Valve Lift: 11.40mm (Intake) / 11.40mm (Exhaust)

Advertised Duration @: 0.10mm / 29 2(Intake) / 303 (Exhaust)

Duration @: 1.00mm Valve Lift / 250 (Intake) / 256 (Exhaust)

Timing @: 1.00mm Valve Lift / 17 BTDC (IVO) /64 BBDC (EVO); 53 ABDC (IVC) / 12 ATDC (EVC)

Suggested Centre Line: 108 (Intake) / 116 (Exhaust)

Valve Lift @ TDC: 2.79mm (Intake) / 1.74 (Exhaust)
