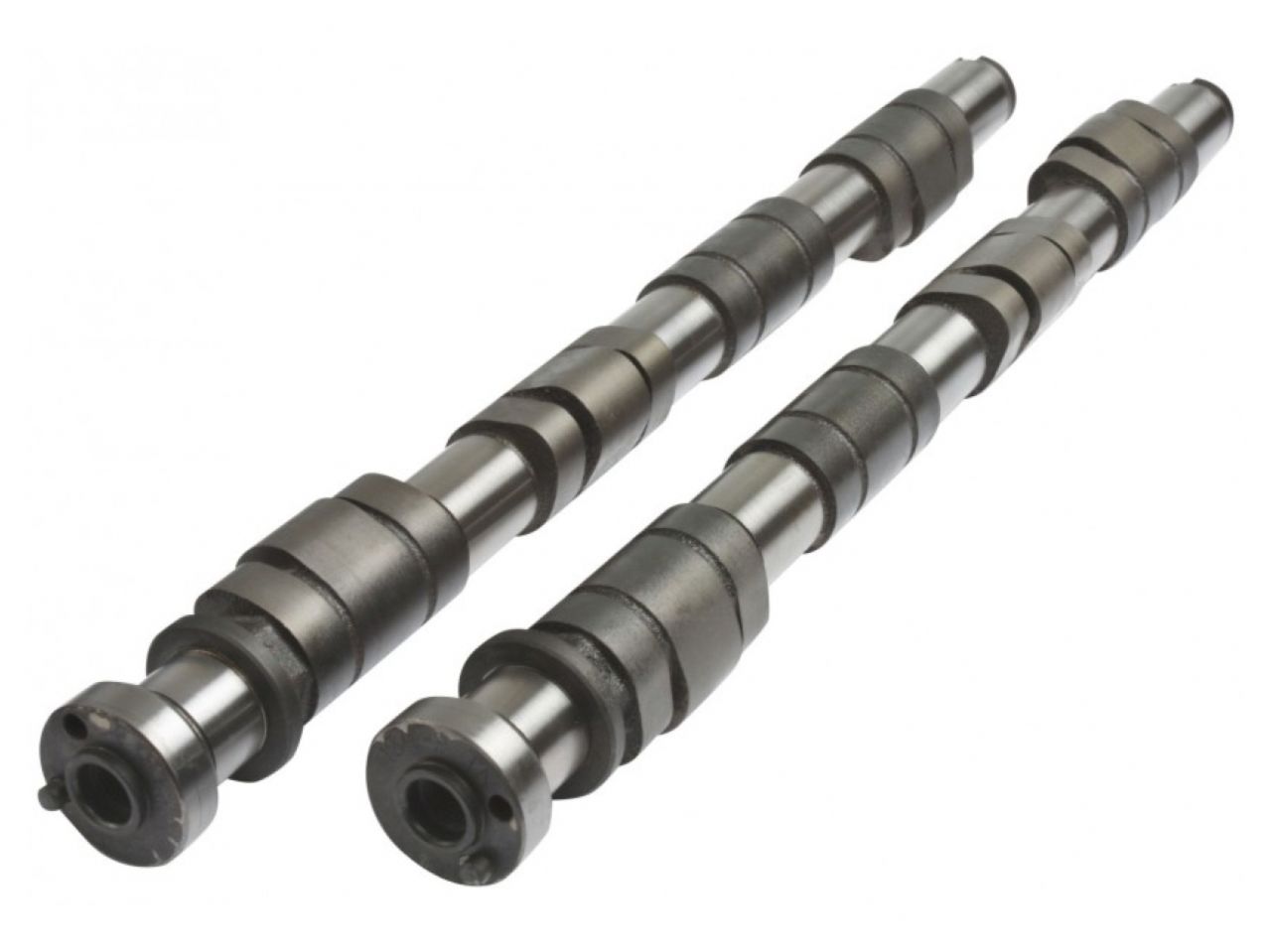

Kelford Cams Turbo Application Camshaft Set

290/290 Degrees advertised duration, 10.60mm/10.60mm lift.

Nissan SR20VE-T cams for high performance, turbocharged street cars. Primary lobe specification is 252/248 Degrees advertised duration, 10.20mm/8.30mm lift.

Specification:

• Valve Clearance: (0.20mm Intake) (0.40mm Exhaust)
• Cam Lift: (6.83mm Intake) (7.03mm Exhaust)
• Rocker Ratio: (1.6 Intake) (1.6 Exhaust)
• Nett Valve Lift: (10.60mm Intake) (10.60mm Exhaust)
• Advertised Duration @ 0.10mm: (290 Intake) (290 Exhaust)
• Duration @ 1.00mm VALVE LIFT: (246 Intake) (246 Exhaust)
• Timing @ 1.00mm VALVE LIFT: (IVO: 15 BTDC)(EVO:59 BBDC)(IVC:51 ABDC)(EVC:7 ATDC)
• Suggested Centre Lines: (108 Intake) (116 Exhaust)
• VALVE Lift @ TDC: (2.10mm Intake) (1.42 Exhaust)
