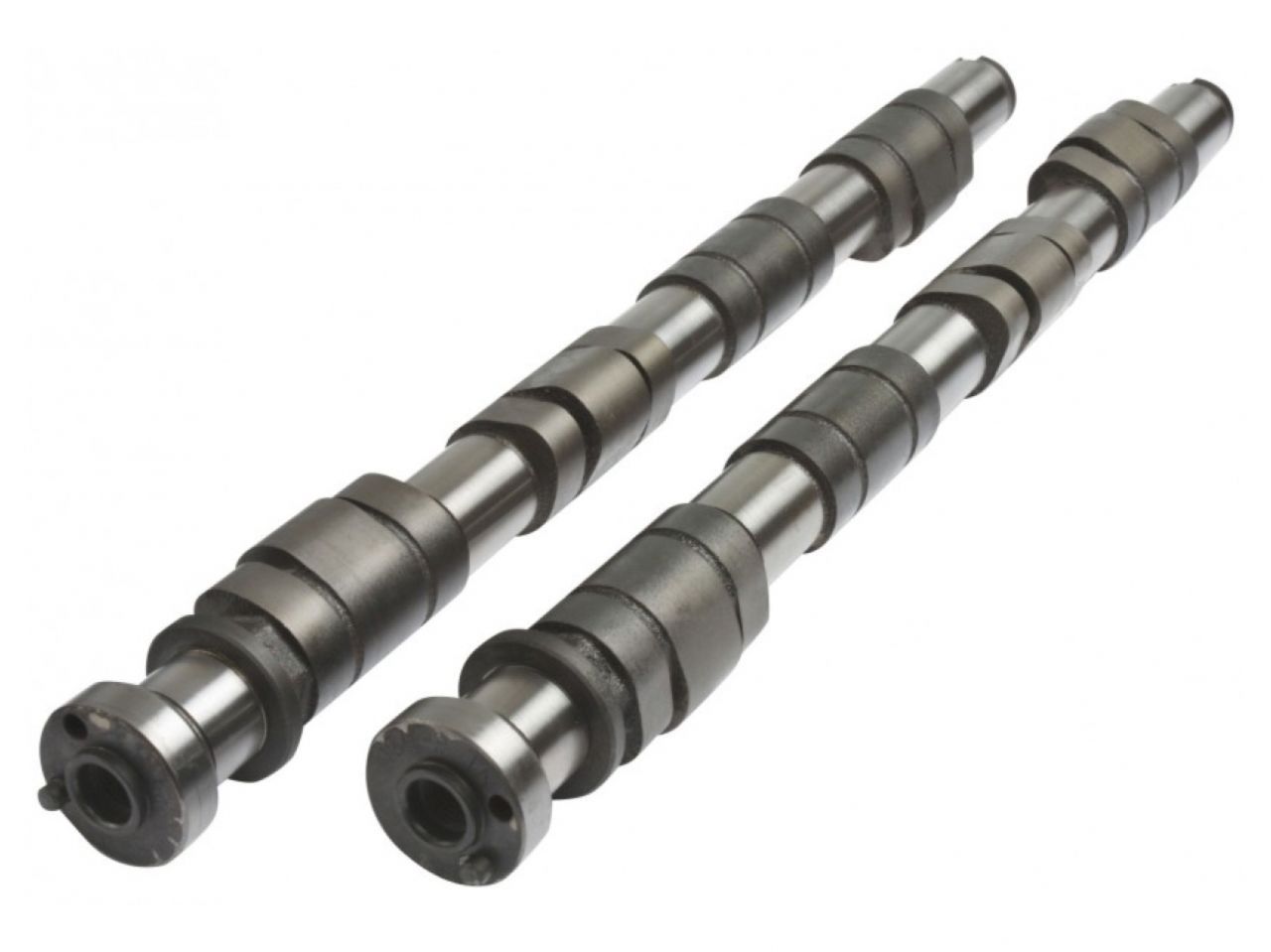

Kelford Cams Camshaft Set

314/312 Degrees advertised duration, 12.50mm/11.80mm lift.

SR20VE Racing cams to suit well modified, high compression motors. Ideal for strokers and IR manifolds. Primary lobe specification is 252/248 Degrees advertised duration, 10.20mm8.30mm lift.

Specifications:

• Valve Clearance: (0.20mm Intake) (0.40mm Exhaust)
• Cam Lift: (8.01mm Intake) (7.78mm Exhaust)
• Rocker Ratio: (1.6 Intake) (1.6 Exhaust)
• Nett Valve Lift: (12.50mm Intake) (11.80mm Exhaust)
• Advertised Duration @ 0.10mm: (314 Intake) (312 Exhaust)
• Duration @ 1.00mm VALVE LIFT: (266 Intake) (258 Exhaust)
• Timing @ 1.00mm VALVE LIFT: (IVO: 29 BTDC)(EVO:49 BBDC)(IVC:57 ABDC)(EVC:29 ATDC)
• Suggested Centre Lines: (104 Intake) (100 Exhaust)
• VALVE Lift @ TDC: (4.24mm Intake) (3.70 Exhaust)
