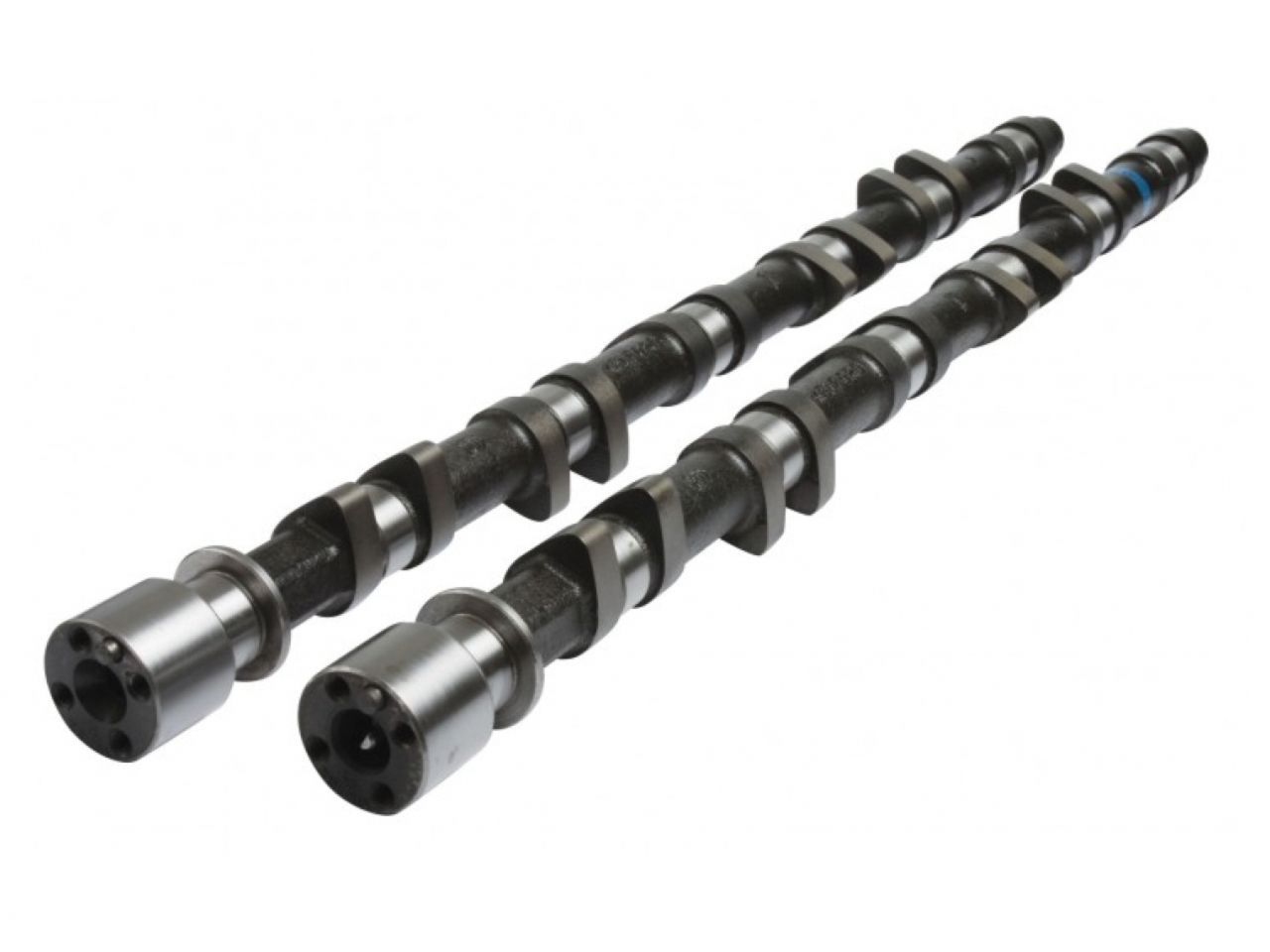

Kelford Cams Nissan RB26-DETT R32 & R33 (Mech) Performance Cam

274/270 Degree split lobe high performance cams t suit a range of motorsport applications. These are especially effective with engines running E85 fuel.

Camshaft Specifications

• Engine Make: NISSAN
• Engine Model: RB26DETT
• Valve Clearance:
  • Intake: 0.25mm Set COLD at the CAM
  • Exhaust: 0.30mm Set COLD at the CAM
• Cam Lift:
  • Intake: 10.80mm; Exhaust: 10.80mm
• Rocker Ratio:
  • Intake: 1; Exhaust: 1
• Nett Valve Lift:
  • Intake: 10.55mm; Exhaust: 10.50mm
• Advertised Duration @ 0.10mm
  • Intake: 274 Exhaust: 274
• Duration @ 1.00mm VALVE LIFT
  • Intake: 236 Exhaust: 236
• Timing @ 1.00mm VALVE LIFT
  • IVO: 8 BTDC
  • EVO: 54 BBDC; IVC: 48 ABDC; EVC: 2 ATDC
• Suggested Centre Lines:
  • Intake: 110; Exhaust: 116
• VALVE Lift @ TDC
  • Intake: 1.88mm; Exhaust: 1.18
