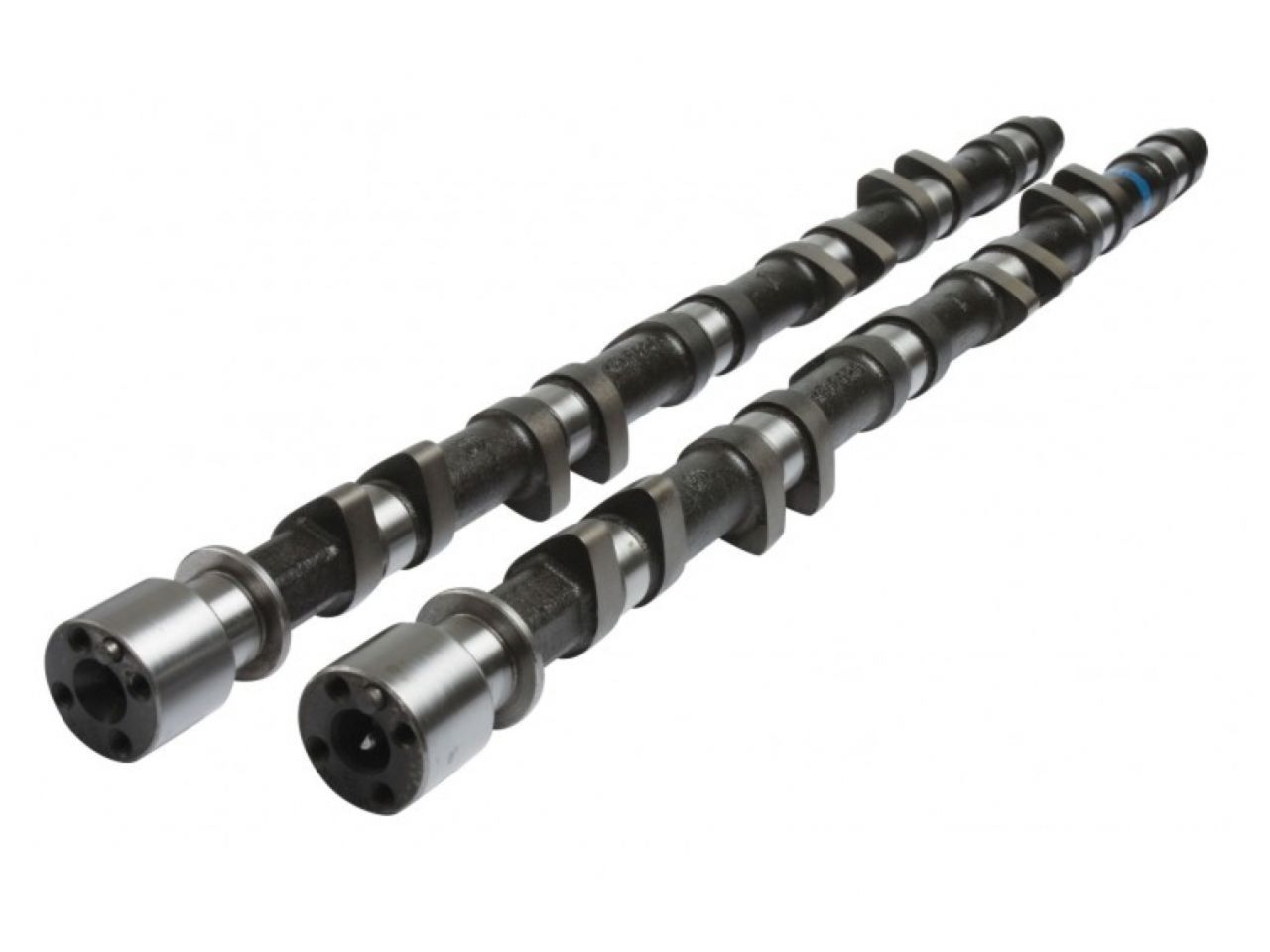

• Kelford Cams Camshafts 182-E Item Image
1 1
Kelford Cams Authorized Dealer

Kelford Cams Nissan RB26-DETT R32 & R33 - Mechanical Serious Drag Racing Camshafts

Kelford Cams Nissan RB26-DETT R32 & R33 - Mechanical Serious Drag Racing Camshafts

sku: 0U5U4 | mpn: 182-E
$874.00
$920.00 $874.00
Sale Sold out
Shipping calculated at checkout.

Out of stock

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

288 Degree serious racing cams. These require custom shims because of the reduced base circle.

Camshaft Specifications

  • Engine Make: NISSAN
  • Engine Model: RB26DETT
  • Valve Clearance:
    • Intake: 0.25mm Set COLD at the CAM
    • Exhaust: 0.30mm Set COLD at the CAM
  • Cam Lift:
    • 10.80mm ; Exhaust: 10.80mm
  • Rocker Ratio:
    • Intake: 1; Exhaust: 1
  • Nett Valve Lift:
    • 10.55mm; Exhaust: 10.50mm
  • Advertised Duration @ 0.35mm
    • Intake: 280 Exhaust: 280
  • Duration @ 1.00mm VALVE LIFT
    • Intake: 242 ; Exhaust: 242
  • Timing @ 1.00mm VALVE LIFT
    • IVO: 9 BTDC; EVO: 61 BBDC
    • IVC: 53; ABDC EVC: 1 ATDC
  • Suggested Centre Lines:
    • Intake: 112 Exhaust: 120
  • VALVE Lift @ TDC
    • Intake: 1.95mm; Exhaust: 1.05
