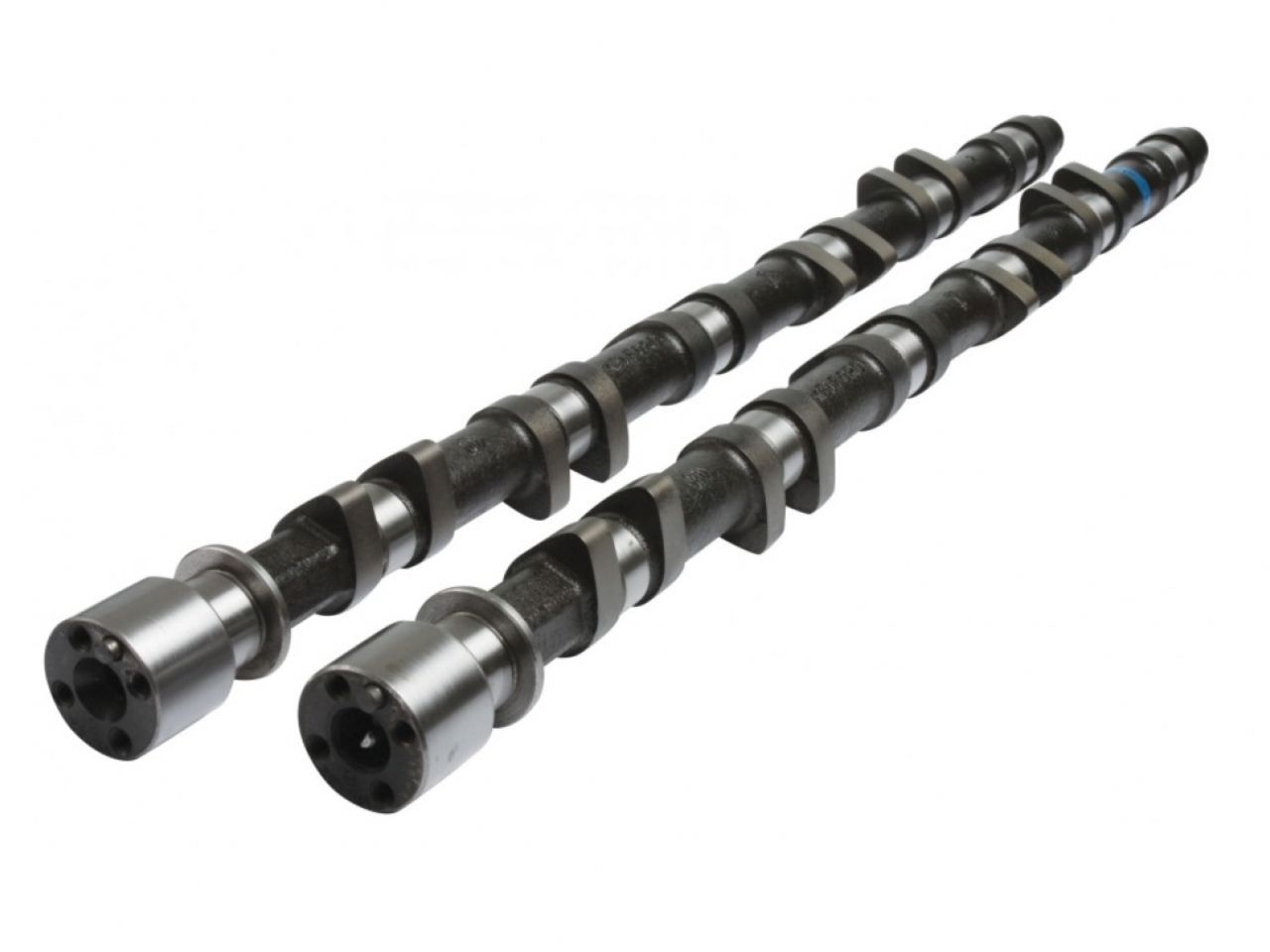

Kelford Cams Nissan Rb26-dett R32 & R33 - Mechanical 272 Degree Mid Lift Street

New Range Of High Performance Camshafts.

272/272 Degrees advertised duration, 10.00mm/9.95mm lift.272 Degree performance cams delivering low end power and fast spool up.

Engine Make:		Engine Model:				Part Number:
NISSAN		RB26DETT				182-C
Valve Clearance:		Intake:	0.25mm	Set	COLD	at the	CAM
Exhaust:	0.30mm	Set	COLD	at the	CAM
Cam Lift:	Intake:			10.25mm	Exhaust:	10.25mm
Rocker Ratio:	Intake:			1	Exhaust:	1
Nett Valve Lift:	Intake:			10.00mm	Exhaust:	9.95mm
Advertised Duration @	0.35mm	Intake:			272	Exhaust:	272
Duration @	1.00mm VALVE LIFT	Intake:			234	Exhaust:	234
Timing @	1.00mm VALVE LIFT	IVO:			7 BTDC	EVO:	53 BBDC
IVC:			47 ABDC	EVC:	1 ATDC
Suggested Centre Lines:	Intake:			110	Exhaust:	116
VALVE	Lift @ TDC	Intake:			1.73mm	Exhaust:	1.05
