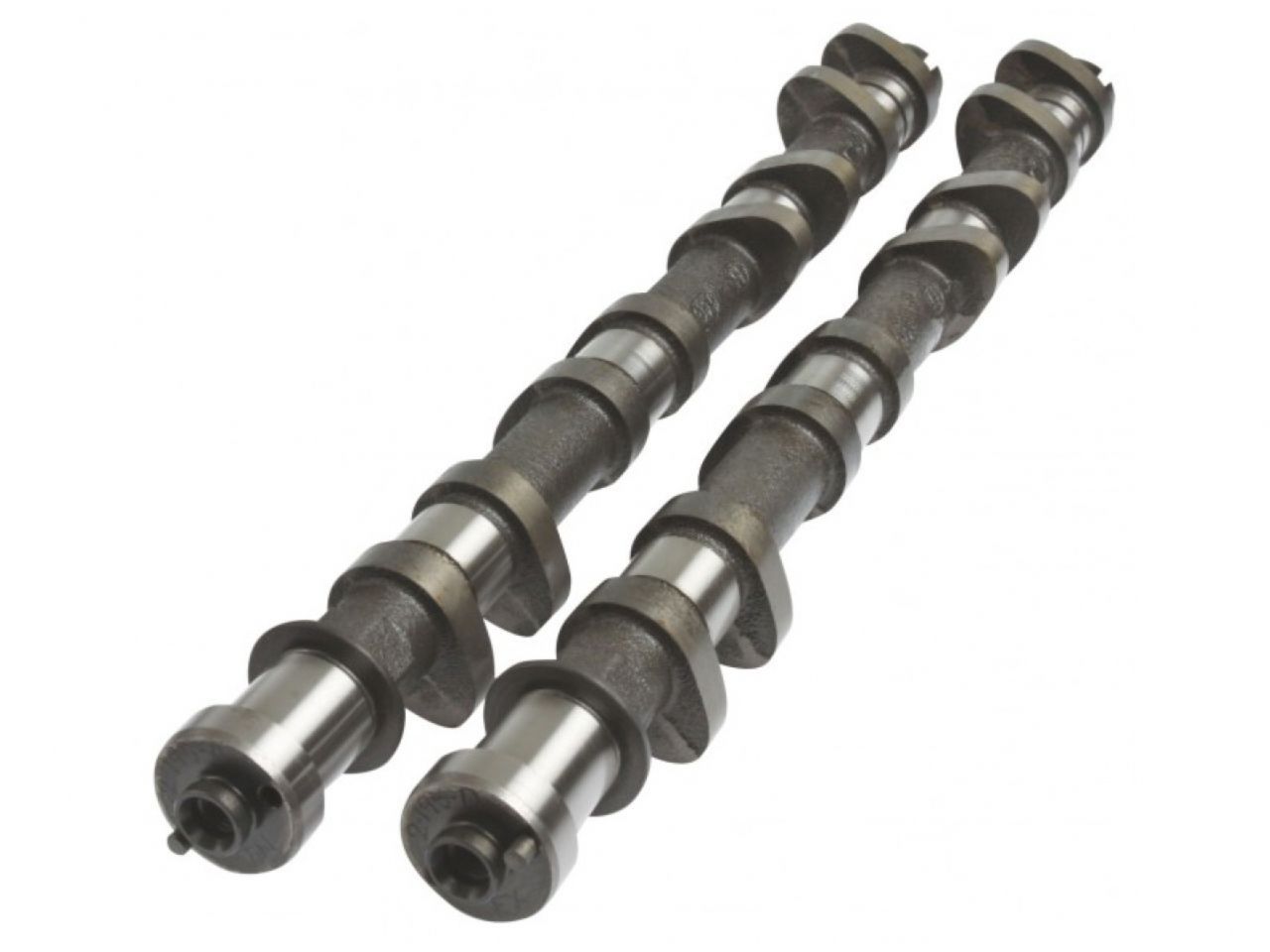

Kelford Cams Toyota 3rz Performance Cam Set

New Range Of High Performance Camshafts.290/290 Degrees advertised duration. 10.60mm/10.20mm lift.Drag racing cams to suit top end, high HP Turbocharged 3RZ-FE engines.

Engine Make:		Engine Model:				Part Number:
TOYOTA		2RZ-3RZ				180-C
Valve Clearance:		Intake:	0.25mm	Set	COLD	at the	CAM
Exhaust:	0.25mm	Set	COLD	at the	CAM
Cam Lift:	Intake:			10.85mm	Exhaust:	10.45mm
Rocker Ratio:	Intake:			1	Exhaust:	1
Nett Valve Lift:	Intake:			10.60mm	Exhaust:	10.20mm
Advertised Duration @	0.10mm	Intake:			290	Exhaust:	290
Duration @	1.00mm VALVE LIFT	Intake:			252	Exhaust:	252
Timing @	1.00mm VALVE LIFT	IVO:			16 BTDC	EVO:	64 BBDC
IVC:			56 ABDC	EVC:	8 ATDC
Suggested Centre Lines:	Intake:			110	Exhaust:	118
VALVE	Lift @ TDC	Intake:			2.67mm	Exhaust:	1.96

Vehicle Fitments:
