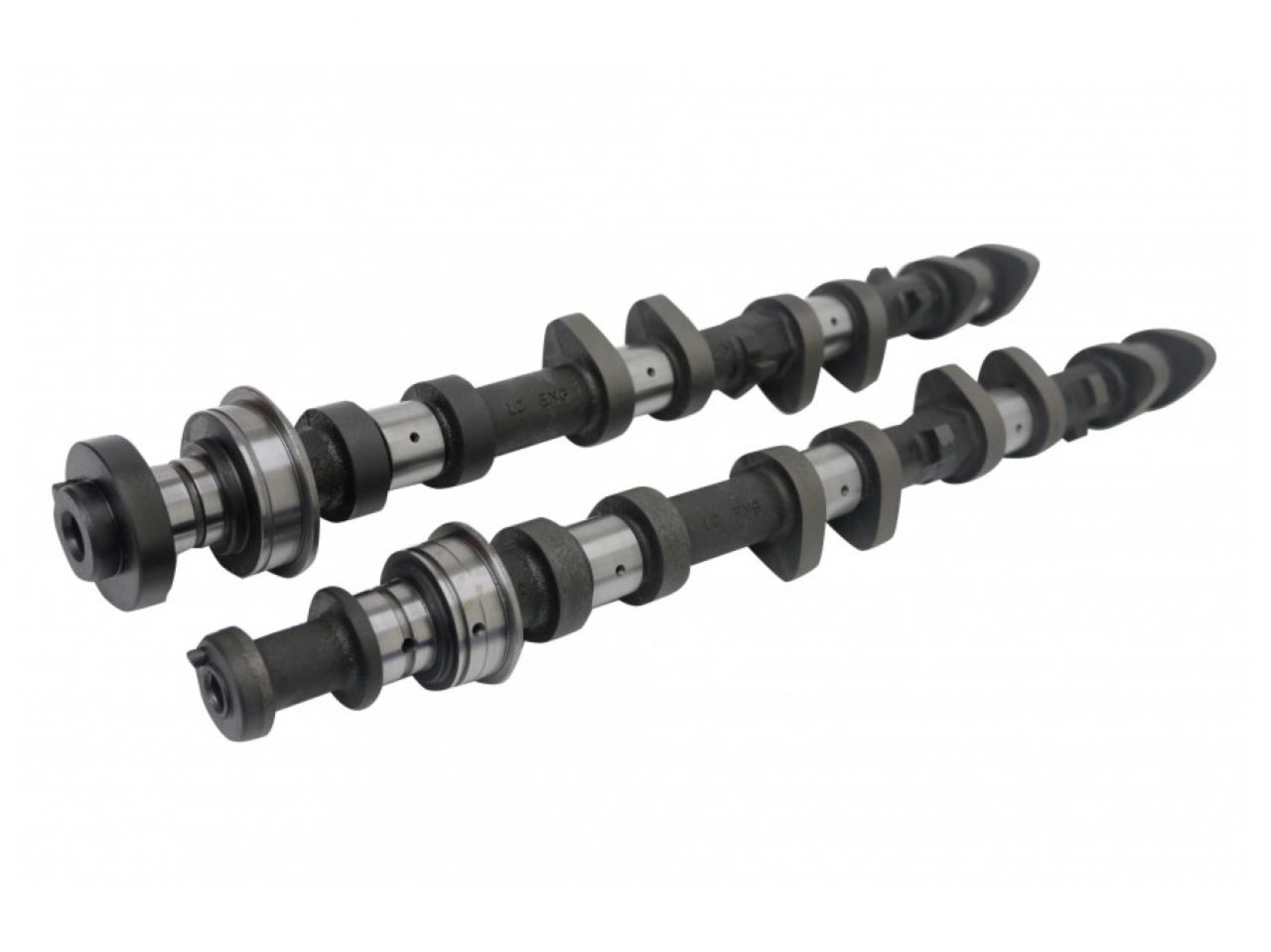

Kelford Cams Toyota Tacoma 2RZ/3RZ Perfomance Cam

272/278 Degrees advertised duration. 9.95mm/9.95mm lift.

Additional Information:

Stage 2 racing cams for well modified, turbocharged 3RZ-FE engine builds.

Engine Make:		Engine Model:				Part Number:
TOYOTA		2RZ-3RZ				180-B
Valve Clearance:		Intake:	0.25mm	Set	COLD	at the	CAM
		Exhaust:	0.25mm	Set	COLD	at the	CAM
Cam Lift:		Intake:			10.20mm	Exhaust:	10.20mm
Rocker Ratio:		Intake:			1	Exhaust:	1
Nett Valve Lift:		Intake:			9.95mm	Exhaust:	9.95mm
Advertised Duration @	0.10mm	Intake:			272	Exhaust:	278
Duration @	1.00mm VALVE LIFT	Intake:			236	Exhaust:	240
Timing @	1.00mm VALVE LIFT	IVO:			8 BTDC	EVO:	58 BBDC
		IVC:			48 ABDC	EVC:	2 ATDC
Suggested Centre Lines:		Intake:			110	Exhaust:	118
VALVE	Lift @ TDC	Intake:			1.83mm	Exhaust:	1.30
