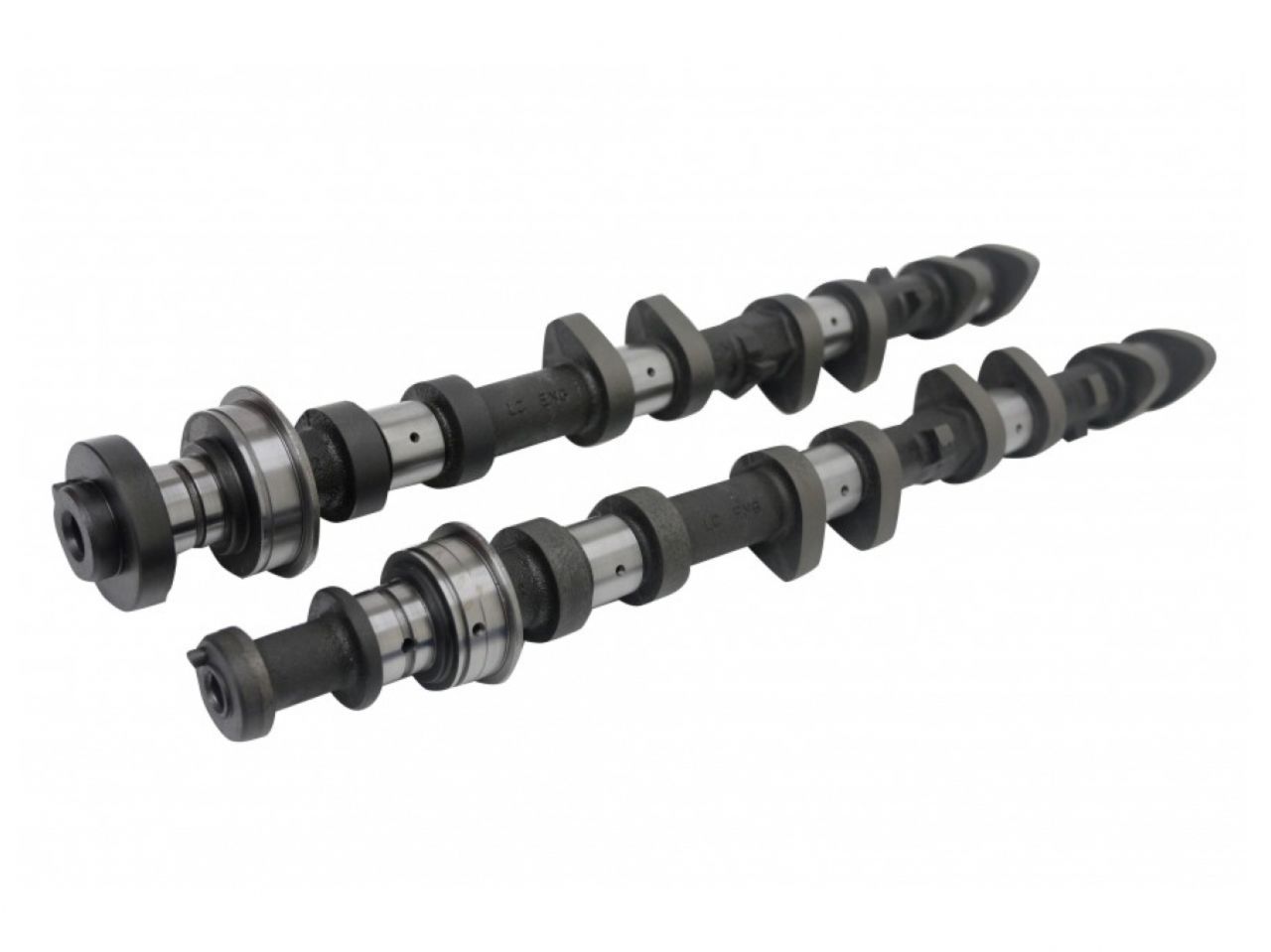

Kelford Cams Toyota 2RZ/3RZ Tacoma Performance Cams

Stage 1 high performance cams for mildy tuned, turbocharged 3RZ-FE engine builds.

Camshaft Specification

• Engine Make: Engine Model: Part Number:
• TOYOTA 2RZ-3RZ 180-A
• Valve Clearance:
  • Intake: 0.25mm Set COLD at the CAM
  • Exhaust: 0.25mm Set COLD at the CAM
• Cam Lift: Intake: 9.90mm Exhaust: 9.90mm
• Rocker Ratio: Intake: 1 Exhaust: 1
• Nett Valve Lift: Intake: 9.65mm Exhaust: 9.65mm
• Advertised Duration @ 0.10mm Intake: 264 Exhaust: 272
• Duration @ 1.00mm VALVE LIFT Intake: 228 Exhaust: 232
• Timing @ 1.00mm VALVE LIFT
  • IVO: 7 BTDC EVO: 52 BBDC
  • IVC: 41 ABDC EVC: 0 TDC
• Suggested Centre Lines: Intake: 107 Exhaust: 116
• VALVE Lift @ TDC Intake: 1.73mm Exhaust: 0.94
