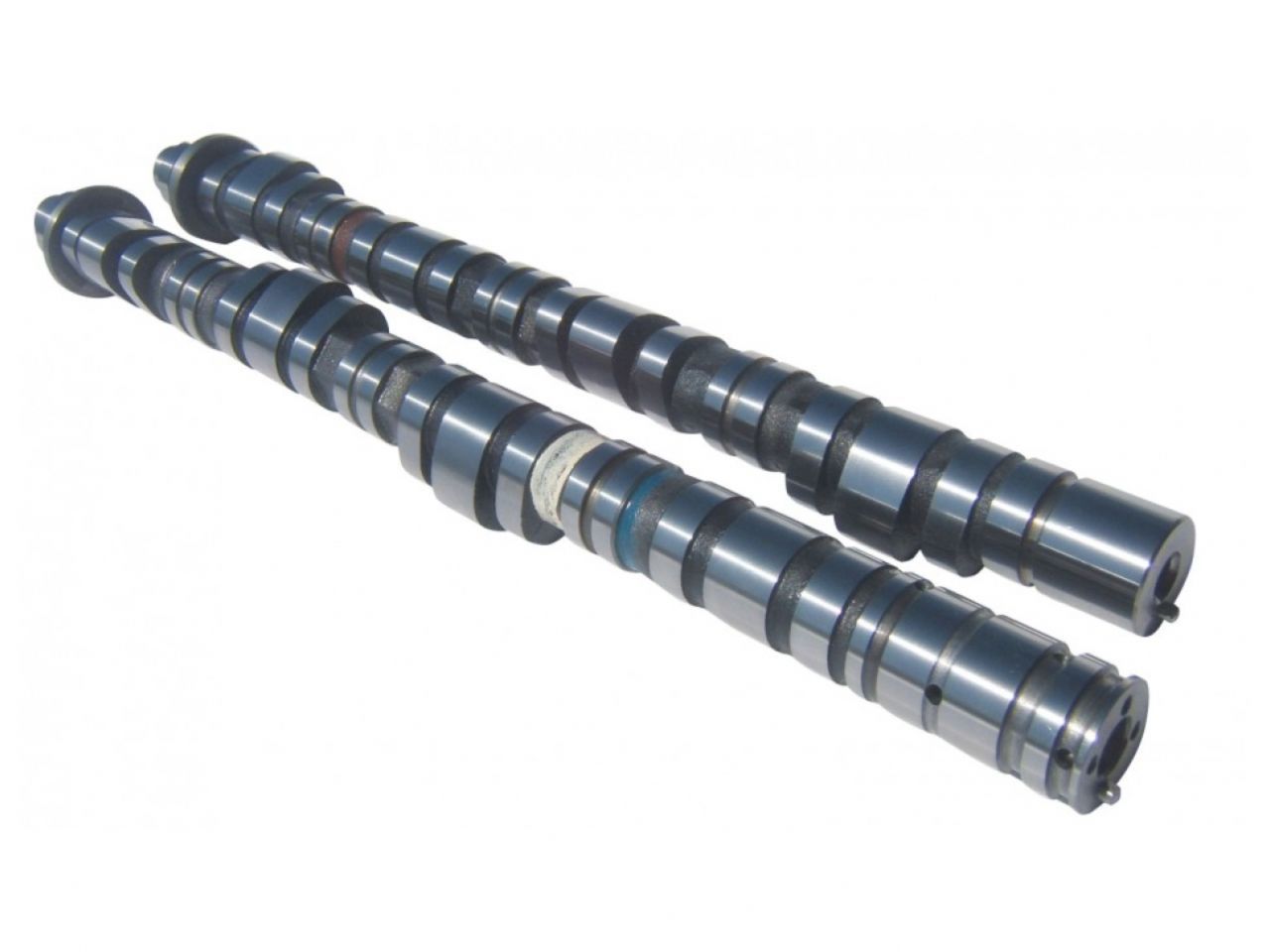

Kelford Cams Honda K20A/K24A2 iVtec - 316/324 - Stage 2 - KVS79-K - K Series Cams
Camshaft Set 316/308 Degrees advertised duration. 14.50mm/12.80mm lift.
Racing cams to suit professionally built, large displacement K series drag race engines and alcohol injected midget car racing engines. Primary/Intermediate lobe specifications are 286 & 292/274 Degrees advertised duration. 11.35mm & 12.00mm/9.80mm lift.
Camshaft Specifications
- HONDAK20 i-VTEC
- Valve Clearance: Intake:0.30mm
-
Exhaust: 0.30mm
-
Cam Lift: Intake: 8.82mm/Exhaust: 7.82mm
-
Rocker Ratio: Intake:1.7/Exhaust:1.7
-
Nett Valve Lift: Intake:14.70mm/Exhaust:13.00mm
- Advertised Duration @0.10mm: Intake:316/Exhaust:308
- Duration @1.00mm VALVE LIFT: Intake:272/Exhaust:268
-
Timing @1.00mm VALVE LIFT: IVO/EVO: 56 BBDC /IVC:/EVC:32 ATDC
-
Suggested Centre Lines: Intake:Vari/Exhaust:102
- VALVELift @ TDC: Intake/Exhaust:4.32
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2005 - 2006 | Acura | RSX | Type-S, Base |
| 2003 - 2005 | Honda | Civic | Hybrid |
| 2005 | Honda | Civic | LX Special Edition, Reverb, EX Special Edition |
| 2002 - 2005 | Honda | Civic | LX, HX, Si, DX, GX, EX |
| 2002 - 2004 | Honda | Civic | SiR |
| 2004 - 2005 | Honda | Civic | Value Package |
Kelford Cams Honda K20A/K24A2 iVtec - 316/324 - Stage 2 - KVS79-K - K Series Cams
Sale price$878.75 USD
Regular price$925.00 USD
