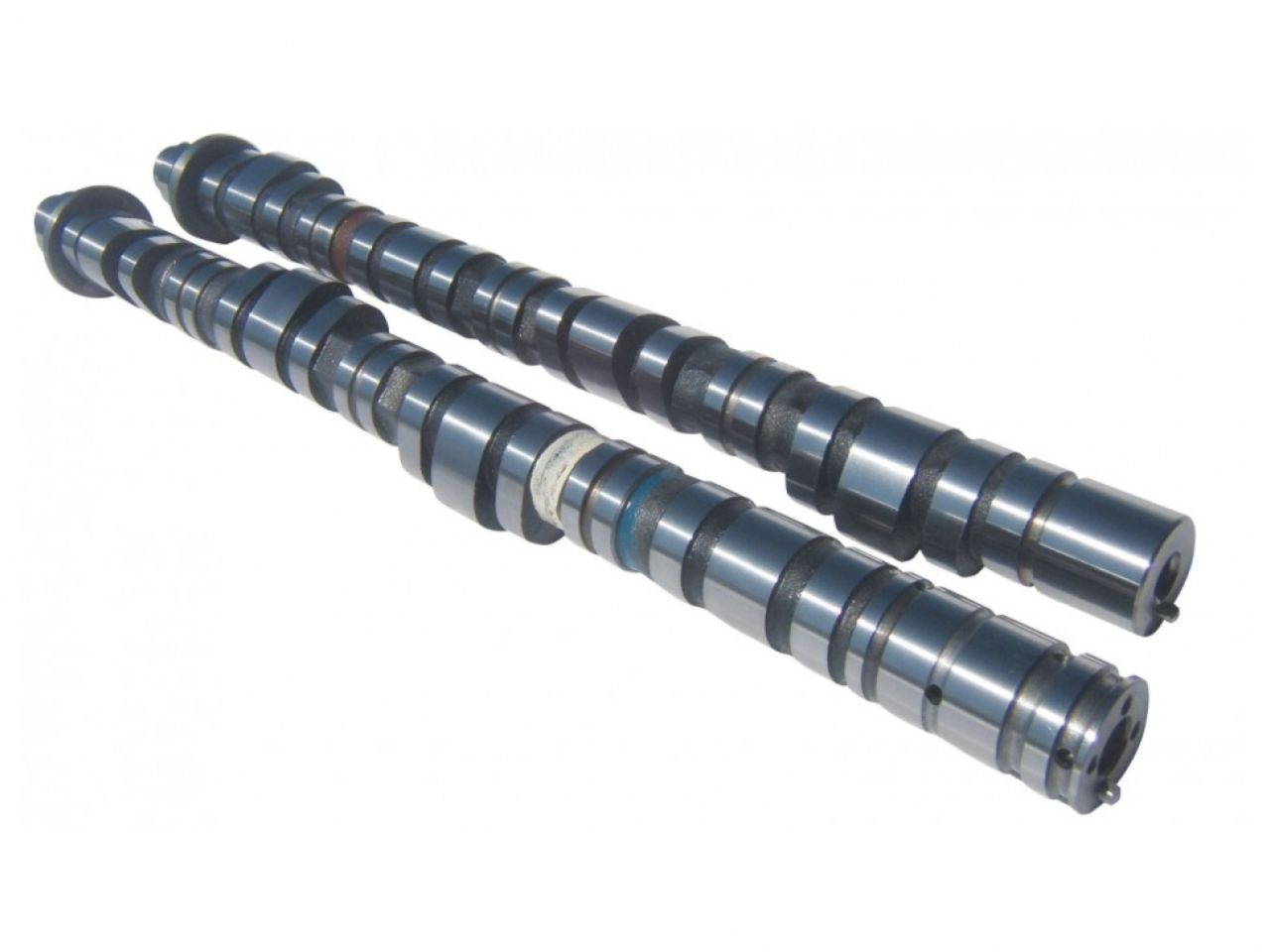

Kelford Cams Camshaft Set
K20-24 racing cams, designed for track racing applications. Large low lobes require idle tuning by TPS. Super strong midrange power, rough idle on plenum manifolds. Primary/Intermediate lobe specifications are 280 & 284/280 Degrees advertised duration. 11.00mm & 11.00mm/8.00mm & 8.25mm lift.
Camshaft Specification
- Engine Make: HONDA
- Engine Model: K20 i-VTEC 179-B2
- Valve Clearance: Intake: 0.30mm Set HOT at the VALVE
- Exhaust: 0.30mm Set HOT at the VALVE
- Cam Lift: Intake: 8.12mm Exhaust: 7.35mm
- Rocker Ratio: Intake: 1.7 Exhaust: 1.7
- Nett Valve Lift: Intake: 13.50mm Exhaust: 12.20mm
- Advertised Duration @ 0.10mm Intake: 306 Exhaust: 302
- Duration @ 1.00mm VALVE LIFT Intake: 260 Exhaust: 246
- Timing @ 1.00mm VALVE LIFT
- IVO: EVO: 47 BBDC
- IVC: EVC: 19 ATDC
- Suggested Centre Lines: Intake: VARI Exhaust: 104
- VALVE Lift @ TDC Intake: Exhaust: 2.48
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2005 - 2006 | Acura | RSX | Type-S, Base |
| 2002 - 2005 | Honda | Civic | DX, GX, Si, HX, EX, LX |
| 2003 - 2005 | Honda | Civic | Hybrid |
| 2005 | Honda | Civic | LX Special Edition, EX Special Edition, Reverb |
| 2002 - 2004 | Honda | Civic | SiR |
| 2004 - 2005 | Honda | Civic | Value Package |
Kelford Cams Camshaft Set
Sale price$878.75 USD
Regular price$925.00 USD
