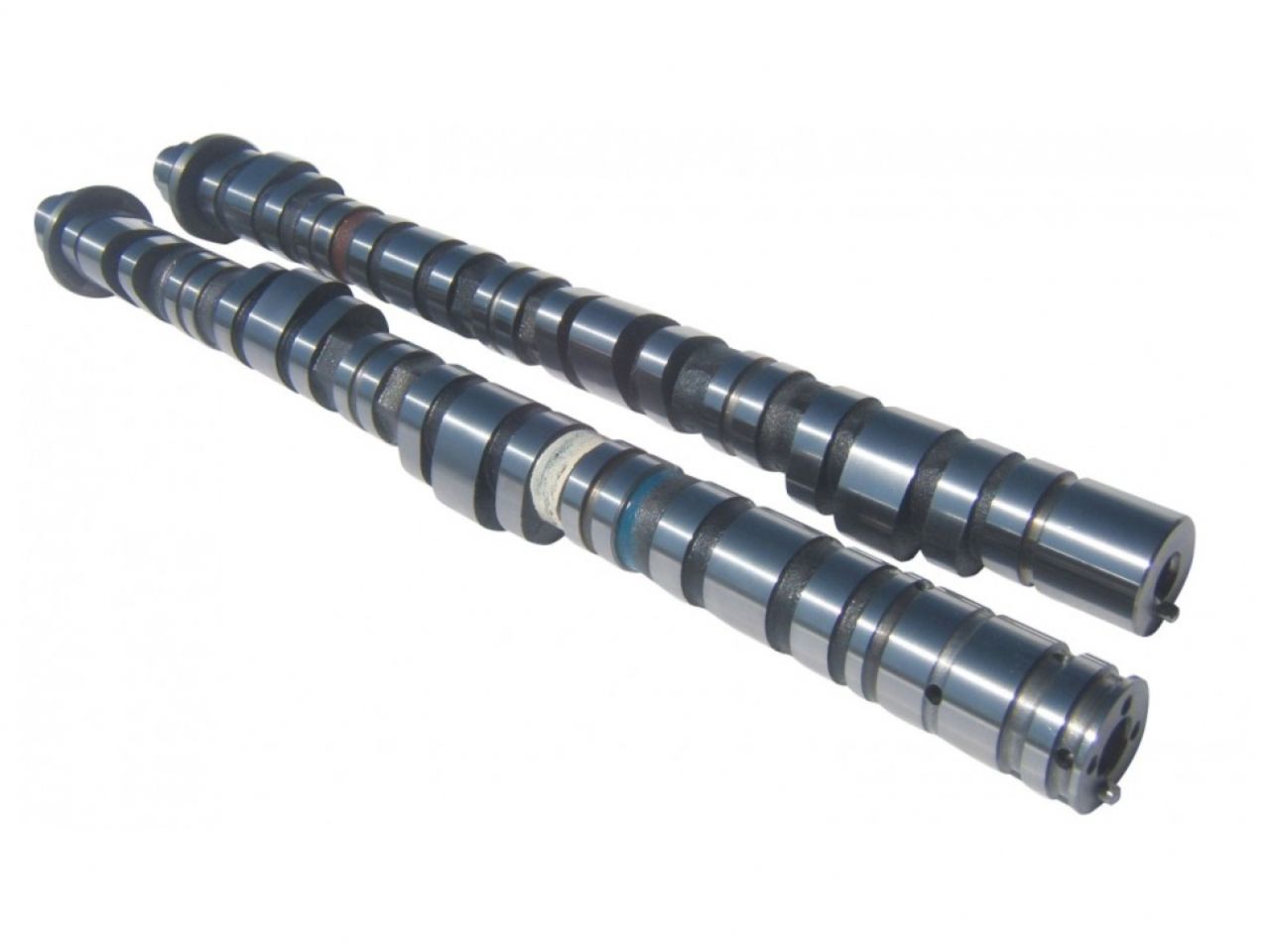

Kelford Cams Honda K20A/K24A2 iVtec-306/312-Stage 2-KVS79-K-K Series Cams

Stage 2 racing cams to suit well modified 2.0L and 2.4L engines for street/strip and track racing. Primary/Intermediate lobe specifications are 269 & 274/260 Degrees advertised duration. 8.25mm & 9.00mm/7.00mm & 7.25mm lift.

Specifications

Valve Clearance:0.30mm(Intake),(Set)HOT,(At the)VALVE /0.30mm(Exhaust),(Set)HOT (,(At the)VALVE

Cam Lift: (Intake)8.12mm /(Exhaust)7.35mm

Rocker Ratio:(Intake)1.7/ (Exhaust)1.7

Nett Valve Lift: (Intake)13.50mm/ (Exhaust)12.20mm

Advertised Duration @: 0.10mm/306(Intake)/302(Exhaust)

Duration @: 1.00mm Valve Lift/260(Intake)/244(Exhaust)

Timing @:1.00mm Valve Lift/46 BBDC(EVO)/18 ATDC(EVC)

Valve(Lift @ TDC):2.46(Exhaust)

Vehicle Fitments:
