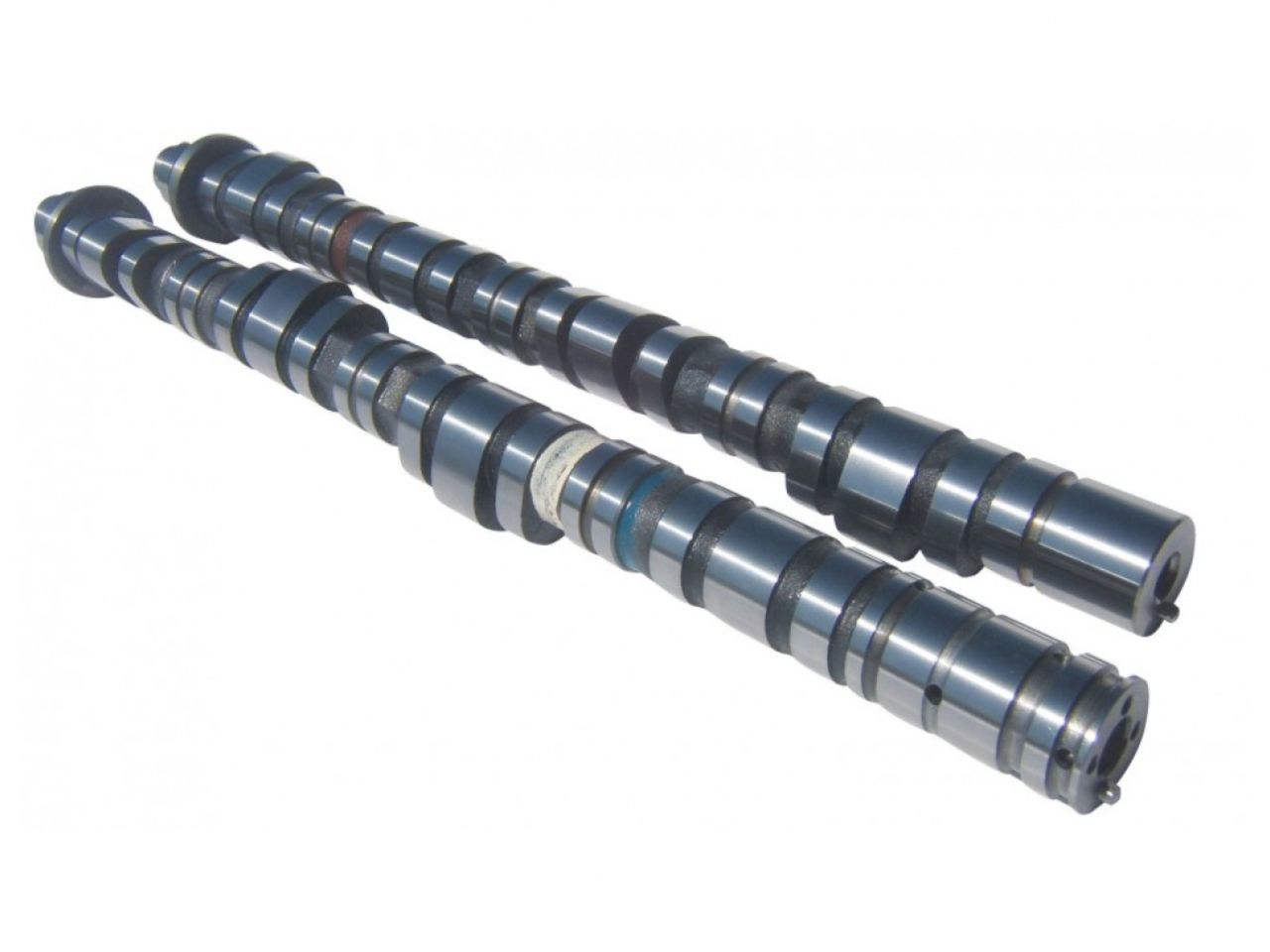

Kelford Cams Camshaft Set
296/292 degrees advertised duration. 12.50mm/11.15mm lift.
Stage 1 racing cams to suit 2.0L and 2.4L builds for many applications. Great power gains in the whole range over the TSX cams. Primary/Intermediate lobe specifications are 246 & 252/258 degrees advertised duration. 7.75mm & 8.55mm/7.40mm lift.
Specifications:
- Cam Lift: 7.53mm Intake/6.74mm Exhaust
- Rocker Ratio: 1.7 Intake/1.7 Exhaust
- Nett Valve Lift:12.50mm Intake/11.15mm Exhaust
- Advertised Duration @0.10mm:296 Intake/292Exhaust
- Duration @ 1.00mm VALVE LIFT:258 Intake/248 Exhaust
- Timing @ 1.00mm VALVE LIFT:(EVO:49 BBDC)((EVC:19 ATDC)
- Suggested Centre Lines:VARI Intake/105 Exhaust
- VALVE Lift @ TDC:2.51 Exhaust
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2005 - 2006 | Acura | RSX | Base, Type-S |
| 2002 - 2005 | Honda | Civic | DX, Si, GX, HX, EX, LX |
| 2003 - 2005 | Honda | Civic | Hybrid |
| 2005 | Honda | Civic | LX Special Edition, Reverb, EX Special Edition |
| 2002 - 2004 | Honda | Civic | SiR |
| 2004 - 2005 | Honda | Civic | Value Package |
Kelford Cams Camshaft Set
Sale price$878.75 USD
Regular price$925.00 USD
