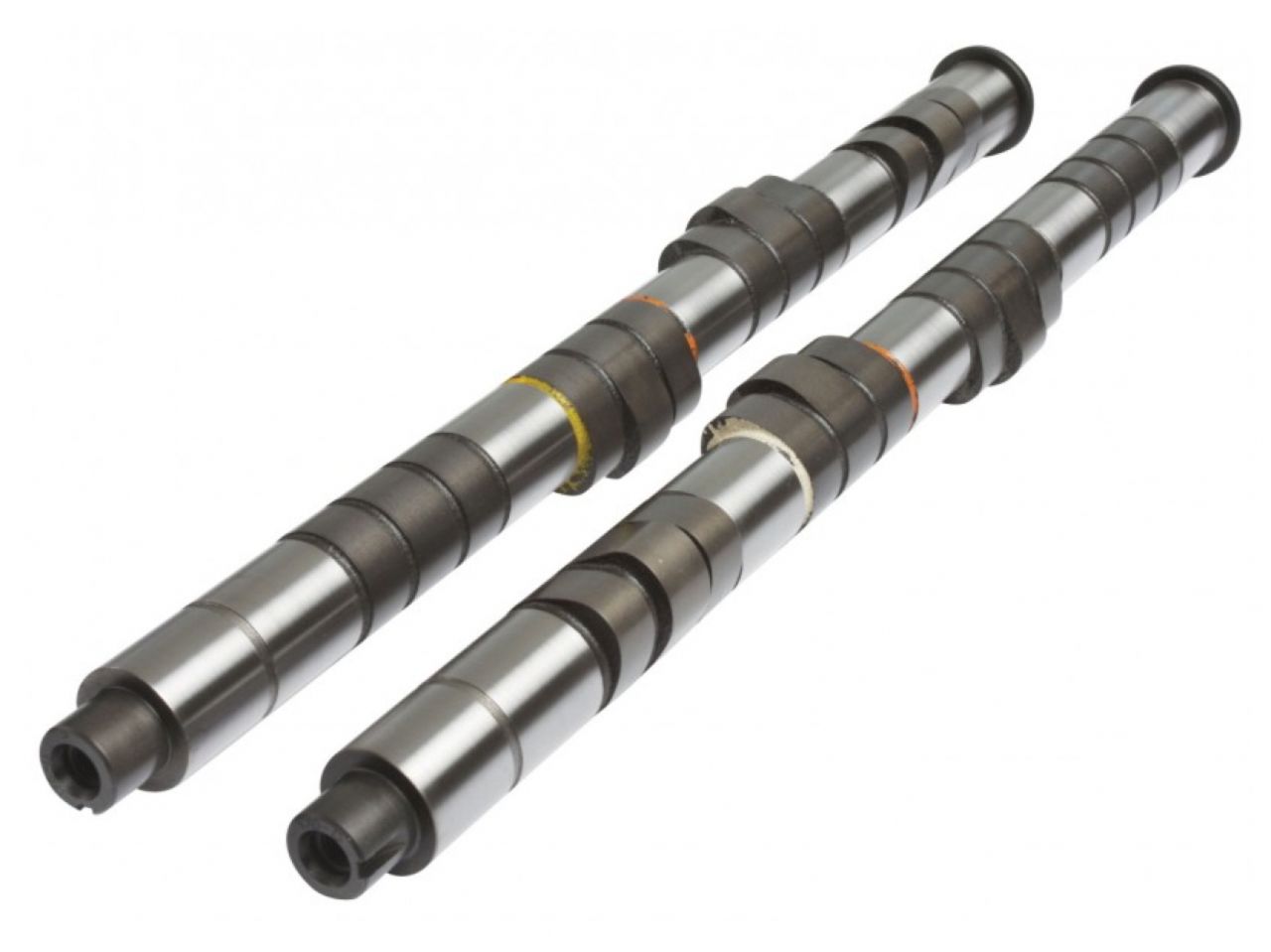

Kelford Cams Honda B16A/B18C VTEC Performance Cam
New Range Of High Performance Camshafts.
284/274 Degrees advertised duration. 11.25mm /11.00mm lift.Special design cams, to suit high power turbocharged B series engines in the 600-1000HP range. Primary & Secondary lobe specifications are: Intake 250 & 254 / Exhaust 250 & 250 Degrees advertised duration. Intake 7.00mm & 8.60mm / Exhaust 7.00mm & 7.00mm lift.
 | |||||||
| Engine Make: | Engine Model: | Part Number: | |||||
| HONDA | B16A/B18C VTEC | 176-T | |||||
| Valve Clearance: | Intake: | 0.30mm | Set | HOT | at the | VALVE | |
| Exhaust: | 0.30mm | Set | HOT | at the | VALVE | ||
| Cam Lift: | Intake: | 7.45mm | Exhaust: | 7.29mm | |||
| Rocker Ratio: | Intake: | 1.55 | Exhaust: | 1.55 | |||
| Nett Valve Lift: | Intake: | 11.25mm | Exhaust: | 11.00mm | |||
| Advertised Duration @ | 0.10mm | Intake: | 284 | Exhaust: | 274 | ||
| Duration @ | 1.00mm VALVE LIFT | Intake: | 254 | Exhaust: | 246 | ||
| Timing @ | 1.00mm VALVE LIFT | IVO: | 19 BTDC | EVO: | 58 BBDC | ||
| IVC: | 55 ABDC | EVC: | 8 ATDC | ||||
| Suggested Centre Lines: | Intake: | 108 | Exhaust: | 115 | |||
| VALVE | Lift @ TDC | Intake: | 3.07mm | Exhaust: | 1.84 | ||
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1992 - 2001 | Acura | Integra | GS, LS, GS-R |
| 1992 - 1998 | Acura | Integra | RS |
| 1995 - 1996 | Acura | Integra | Special Edition |
| 1997 - 2001 | Acura | Integra | Type R |
| 1999 - 2000 | Honda | Civic | DX, EX, LX, CX, EX-R, GX, EX-R SIR, HX, Si |
| 1999 | Honda | Civic | Value Package |
| 1994 - 1997 | Honda | Civic del Sol | Si, VTEC, S |
| 1995 | Honda | Prelude | SE |
| 1993 - 1994 | Honda | Prelude | Si 4WS |
| 1993 - 1996 | Honda | Prelude | VTEC, S, Si |
Kelford Cams Honda B16A/B18C VTEC Performance Cam
Sale price$783.75 USD
Regular price$825.00 USD
