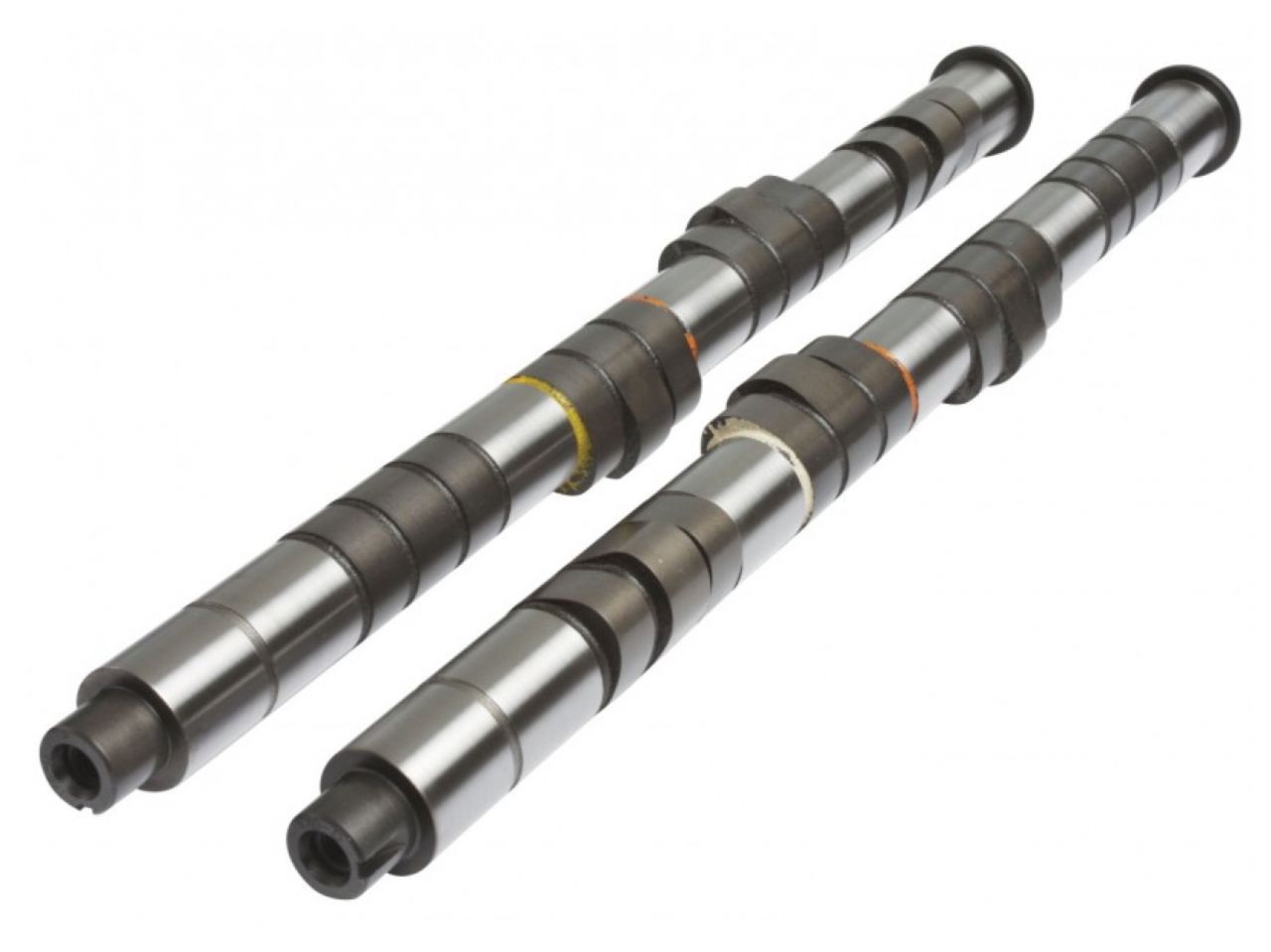

Kelford Cams Mechanical Cam Set; Street/Strip or Circuit Racing Cams

294/286 Degrees advertised duration. 11.80mm /11.30mm lift.

Additional Information:

B Series racing cams. Large low lobe spec for improved torque in lower RPM range. Super strong midrange power, rough idle on plenum manifolds. Primary & Secondary lobe specifications are: Intake 270 & 270 / Exhaust 262 & 262 Degrees advertised duration. Intake 11.00mm & 11.00mm / Exhaust 10.00mm & 10.00mm lift.

Engine Make:		Engine Model:				Part Number:
HONDA		B16A/B18C VTEC				176-C
Valve Clearance:		Intake:	0.30mm	Set	HOT	at the	VALVE
		Exhaust:	0.30mm	Set	HOT	at the	VALVE
Cam Lift:		Intake:			7.81mm	Exhaust:	7.48mm
Rocker Ratio:		Intake:			1.55	Exhaust:	1.55
Nett Valve Lift:		Intake:			11.80mm	Exhaust:	11.30mm
Advertised Duration @	0.10mm	Intake:			294	Exhaust:	286
Duration @	1.00mm VALVE LIFT	Intake:			264	Exhaust:	256
Timing @	1.00mm VALVE LIFT	IVO:			30 BTDC	EVO:	52 BBDC
		IVC:			54 ABDC	EVC:	24 ATDC
Suggested Centre Lines:		Intake:			102	Exhaust:	104
VALVE	Lift @ TDC	Intake:			4.70mm	Exhaust:	3.86

Vehicle Fitments:
