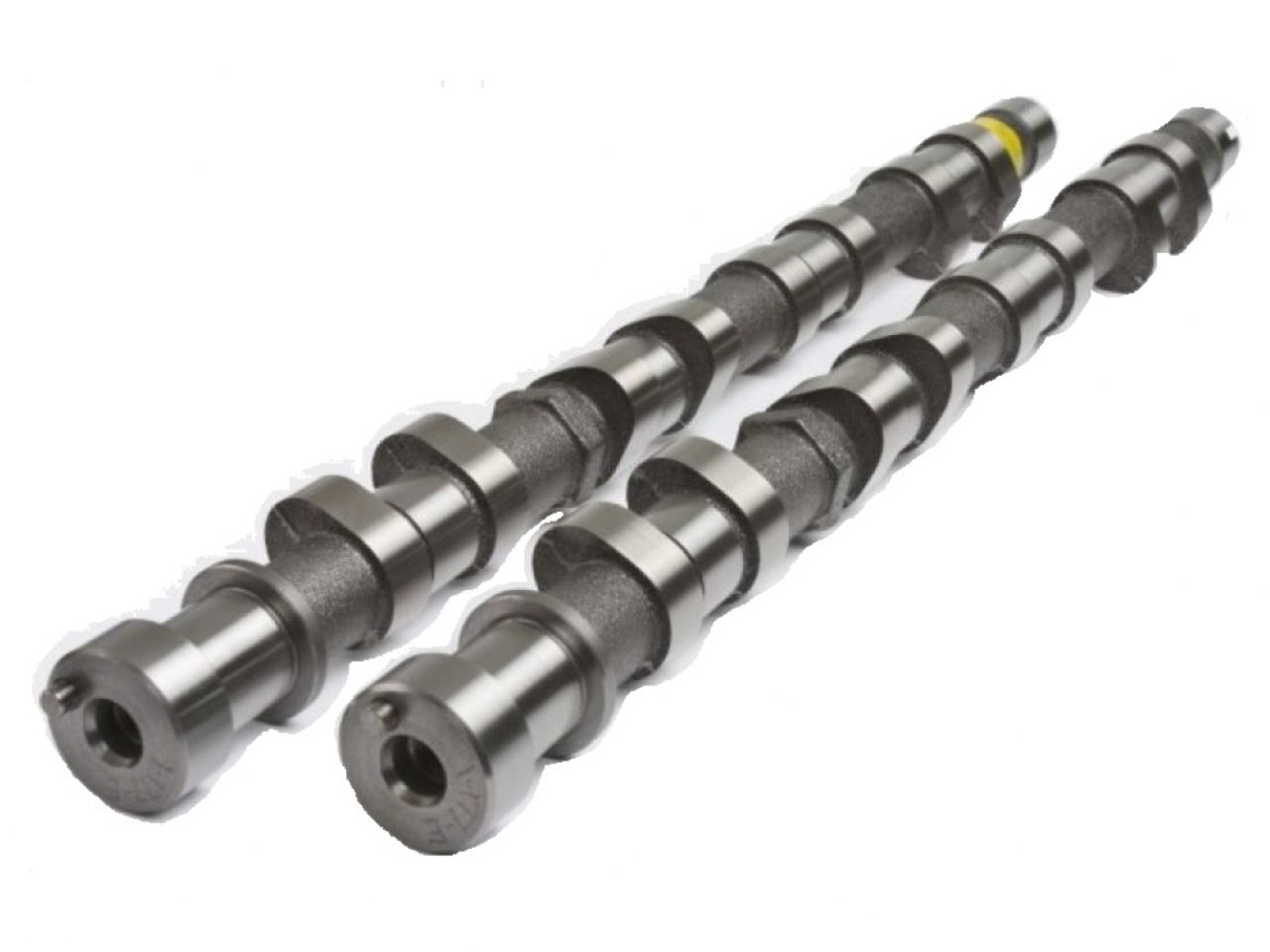

Kelford Cams Mitsubishi 4G63 VR4 Evo 1-3 Performance Cam Set

New Range Of High Performance Camshafts.280/288 Degree advertised duration, 11.50/11.50mm lift high HP racing cams.These camshafts suit well built time attack and drag racing engines using E85 fuel.

Engine Make:		Engine Model:				Part Number:
MITSUBISHI		4G63 EVO 1-3				1-TX280R
Valve Clearance:		Intake:	Set	at the
Exhaust:	Set	at the
Cam Lift:	Intake:			6.65mm	Exhaust:	6.65mm
Rocker Ratio:	Intake:			1.73	Exhaust:	1.73
Nett Valve Lift:	Intake:			11.50mm	Exhaust:	11.50mm
Advertised Duration @	0.10mm	Intake:			280	Exhaust:	288
Duration @	1.00mm VALVE LIFT	Intake:			238	Exhaust:	242
Timing @	1.00mm VALVE LIFT	IVO:			12 BTDC	EVO:	57 BBDC
IVC:			46 ABDC	EVC:	5 ATDC
Suggested Centre Lines:	Intake:			107	Exhaust:	116
VALVE	Lift @ TDC	Intake:			2.09mm	Exhaust:	1.29

Vehicle Fitments:
