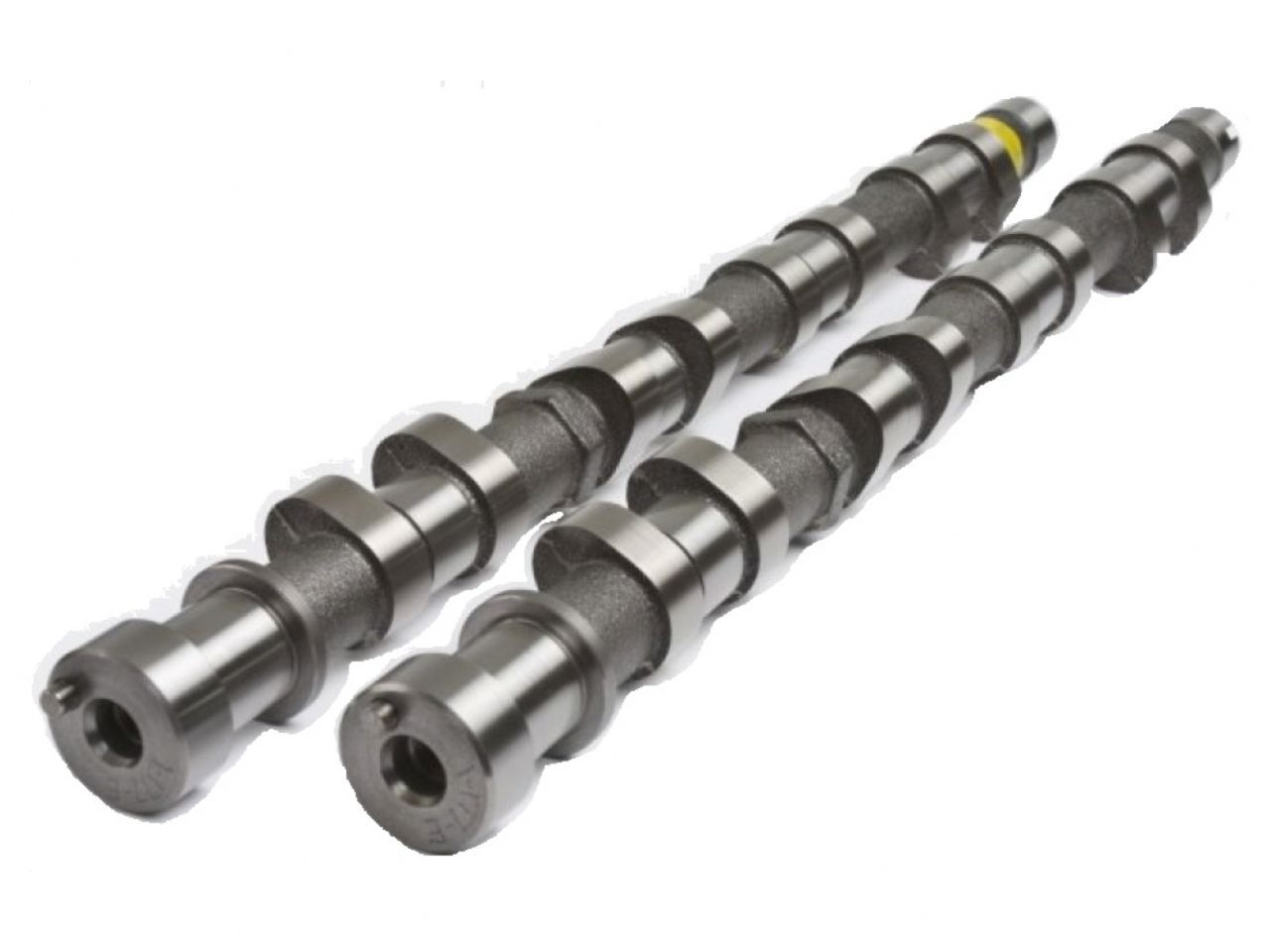

Kelford Cams Mitsubishi 4G63 Eclipse GST, GSX, Spyder GST 1989-1999 Turbo ; 97-99 M
New Range Of High Performance Camshafts.
280/276 Degree advertised duration, 11.50/11.00mm lift high HP racing cams.These camshafts suit well built racing engines up to 35lb boost and 9000 RPM with our recommended valve springs.
 | |||||||
| Engine Make: | Engine Model: | Part Number: | |||||
| MITSUBISHI | 4G63 VR4 EVO1-3 | 1-TX280 | |||||
| Valve Clearance: | Intake: | Set | at the | ||||
| Exhaust: | Set | at the | |||||
| Cam Lift: | Intake: | 6.65mm | Exhaust: | 6.36mm | |||
| Rocker Ratio: | Intake: | 1.73 | Exhaust: | 1.73 | |||
| Nett Valve Lift: | Intake: | 11.50mm | Exhaust: | 11.00mm | |||
| Advertised Duration @ | 0.10mm | Intake: | 280 | Exhaust: | 276 | ||
| Duration @ | 1.00mm VALVE LIFT | Intake: | 238 | Exhaust: | 230 | ||
| Timing @ | 1.00mm VALVE LIFT | IVO: | 12 BTDC | EVO: | 50 BBDC | ||
| IVC: | 46 ABDC | EVC: | 0 TDC | ||||
| Suggested Centre Lines: | Intake: | 107 | Exhaust: | 115 | |||
| VALVE | Lift @ TDC | Intake: | 2.09mm | Exhaust: | 1.00 | ||
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1996 - 1997 | Eagle | Talon | Base |
| 1993 - 1994 | Eagle | Talon | DL, ES |
| 1995 - 1997 | Eagle | Talon | ESi |
| 1993 - 1997 | Eagle | Talon | TSi |
| 1990 - 1997 | Mitsubishi | Eclipse | Base |
| 1990 - 1999 | Mitsubishi | Eclipse | GS, GST, GSX |
| 1995 - 1999 | Mitsubishi | Eclipse | RS |
| 1996 - 1999 | Mitsubishi | Eclipse | Spyder GS, Spyder GST |
| 1990 - 1994 | Plymouth | Laser | Base, RS |
Kelford Cams Mitsubishi 4G63 Eclipse GST, GSX, Spyder GST 1989-1999 Turbo ; 97-99 M
Sale price$593.75 USD
Regular price$625.00 USD
