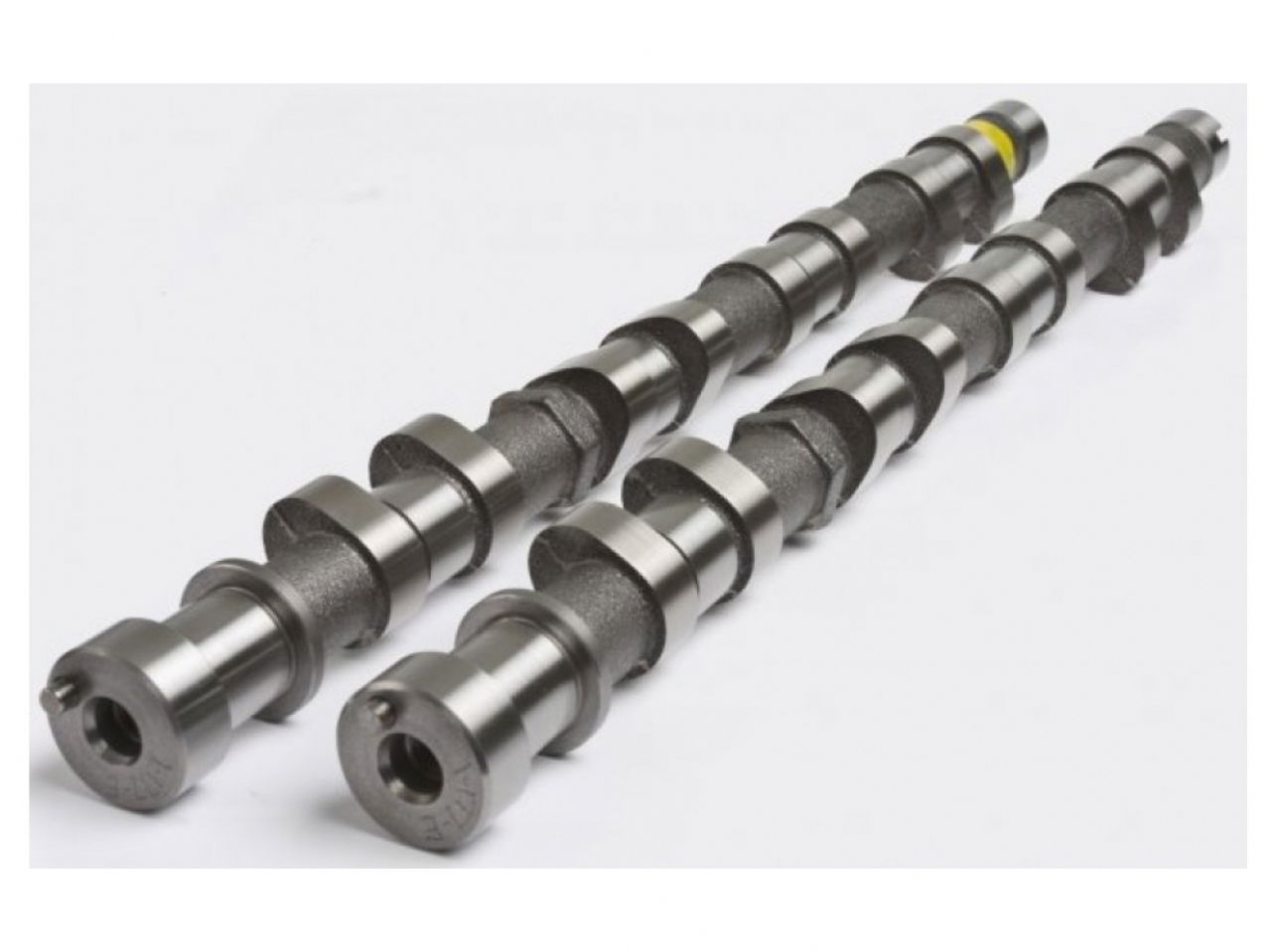

Kelford Cams Mitsubishi 4G63 VR4 Evo 1-3 Performance Cam Set

Kelford Cams Mitsubishi 4G63 VR4 Evo 1-3 Performance Cam Set

sku: 0U66Z | mpn: 1-TX278
$593.75
$625.00 $593.75
Sale Sold out
Shipping calculated at checkout.

Out of stock

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

272/278 Degree advertised duration, 11.00/11.00mm lift high performance cams

High performance camshafts for street/strip and track racing engines using E85 or similar blend fuels.

CAMSHAFT SPECIFICATION

  • Engine Make: MITSUBISHI
  • Engine Model: 4G63 EVO 1-3
  • Cam Lift: Intake: 6.36mm Exhaust: 6.36mm
  • Rocker Ratio: Intake: 1.73 Exhaust: 1.73
  • Nett Valve Lift: Intake: 11.00mm Exhaust: 11.00mm
  • Advertised Duration @ 0.10mm Intake: 272 Exhaust: 278
  • Duration @ 1.00mm VALVE LIFT Intake: 226 Exhaust: 230
  • Timing @ 1.00mm VALVE LIFT
    • IVO: 6 BTDC EVO: 50 BBDC
    • IVC: 40 ABDC EVC: 0 TDC
  • Suggested Centre Lines: Intake: 107 Exhaust: 115
  • VALVE Lift @ TDC Intake: 1.52mm Exhaust: 1.00


Vehicle Fitments:

Year Make Model Submodel
1991 - 1992 Mitsubishi Galant GSR, LS, VR-4, GSX, GS, Base
